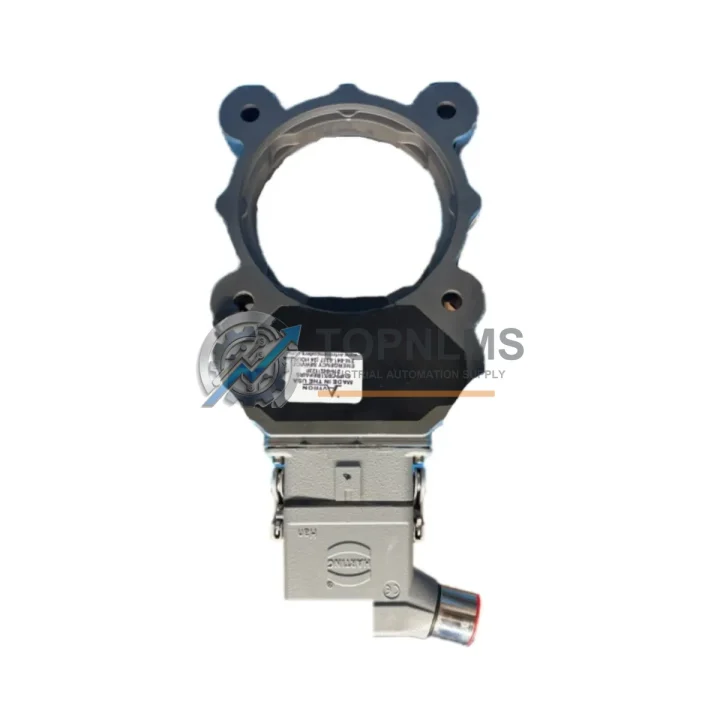

NTron AV56A-1XFX6YXGP50 Replacement for AV Series: Seamless Transition & Legacy System Compatibility

When your existing motion control or position feedback system relies on the NTron AV56A-1XFX6YXGP50 incremental encoder, any unplanned failure or end-of-life notice can immediately threaten production continuity. This 56mm body, 50PPR quadrature output encoder has been widely deployed across servo drive systems, conveyor positioning loops, CNC axis feedback, and rotary indexing tables. Whether you are managing a planned retrofit or responding to an emergency breakdown, TOPNLMS supplies verified AV56A-1XFX6YXGP50 units with full dimensional and electrical compatibility to your existing installation.

The AV Series encoder platform from NTron was engineered for industrial-grade durability in demanding environments. The AV56A-1XFX6YXGP50 outputs standard A/B quadrature signals with a 50-pulse-per-revolution resolution, making it directly interchangeable in most legacy PLC-based positioning systems without requiring parameter changes to the motion controller. Engineers replacing worn or failed units on Siemens S7-300 or S7-400 series PLCs with FM 350-1 or FM 351 counter modules will find that the signal format, voltage level, and connector pinout align with existing field wiring, minimizing rewiring time during the changeover window.

For systems built around Allen-Bradley (Rockwell Automation) platforms — including MicroLogix 1500, CompactLogix L3x, or ControlLogix with 1756-HSC high-speed counter modules — the AV56A-1XFX6YXGP50’s differential line driver output is fully compatible with standard HSC input wiring. No firmware update or I/O module replacement is required when substituting this encoder on an existing axis. The 56mm flange diameter and standard shaft coupling dimensions also match common servo motor tail-shaft mounting configurations used across these platforms.

In DCS-integrated motion loops — for example, systems using Honeywell Experion PKS or Yokogawa CENTUM VP with third-party motion I/O — the AV56A-1XFX6YXGP50 connects through standard pulse input cards. The quadrature output format is universally supported by incremental encoder input modules from major DCS vendors, so no signal conditioning or protocol conversion is needed. This makes the replacement process straightforward even in tightly integrated process control architectures.

Customers upgrading from older 50PPR encoders with obsolete connector types can use standard M12 or terminal-block adapter cables to interface the AV56A-1XFX6YXGP50 into existing cable runs. In retrofit projects where the original encoder used a flying-lead cable with bare wire termination, the AV Series housing accommodates field-installable cable glands, preserving the original conduit routing and reducing installation labor. This is particularly valuable in control cabinet environments where cable management space is constrained.

Power supply compatibility is another key consideration in encoder replacement projects. The AV56A-1XFX6YXGP50 operates on a standard 5–30 VDC supply range, making it compatible with both 5V TTL-level encoder power rails and the more common 24 VDC control cabinet power buses. In systems where the original encoder was powered from a dedicated encoder power supply module — such as those found in older Fanuc or Mitsubishi CNC control cabinets — no power supply modification is required.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful encoder replacement rarely involves only the encoder itself. In most industrial retrofit projects, the AV56A-1XFX6YXGP50 is replaced as part of a broader motion system maintenance or upgrade activity. Customers frequently source complementary components alongside the encoder to complete the changeover in a single maintenance window.

For systems using Siemens S7-300 PLCs, the FM 350-1 single-channel counter module or FM 351 two-channel counter module are the standard interfaces for incremental encoder signals. If the counter module itself shows signs of wear or has accumulated fault hours, replacing it alongside the AV56A-1XFX6YXGP50 eliminates a second unplanned downtime event. Similarly, the SM 321 digital input module and SM 322 digital output module are commonly refreshed during the same cabinet maintenance cycle.

In Allen-Bradley environments, the 1756-HSC ControlLogix high-speed counter module is the typical encoder interface card. Customers running CompactLogix systems often pair the encoder replacement with a refresh of the 1769-HSC compact high-speed counter module. For servo axis applications, the 2098-DSD-HV030X Ultra3000 servo drive or equivalent Kinetix 5500 drive module may also be evaluated for replacement if the encoder failure was preceded by drive fault codes related to feedback signal loss.

Cable and connectivity components are another common co-purchase. M12 4-pin or 8-pin encoder cables, shielded and rated for continuous flex applications, are essential for maintaining signal integrity in environments with vibration or cable carrier movement. Terminal block adapters and DIN rail-mounted signal isolators — such as those used to protect encoder inputs from ground loop interference in large control cabinets — are also frequently ordered alongside the encoder unit.

For customers managing a broader motion system upgrade, the AV56A-1XFX6YXGP50 is often evaluated alongside other AV Series variants with higher PPR resolutions (such as 100PPR, 200PPR, or 1000PPR models) to assess whether a resolution upgrade is warranted by the new application requirements. In such cases, the motion controller’s HSC module parameters and the PLC program’s position scaling constants must be updated to reflect the new resolution — a straightforward change in most modern PLC programming environments.

Retrofit Guidance FAQ

Q: Do I need to rewire the encoder cable when replacing with AV56A-1XFX6YXGP50?
A: In most cases, no. The AV56A-1XFX6YXGP50 uses the same standard pinout as the original AV Series unit. If the original encoder used a flying-lead cable, the wire colors and signal assignments (A+, A−, B+, B−, Z+, Z−, VCC, GND) follow the NTron AV Series standard. Verify the pinout against your existing cable documentation before reconnecting.

Q: Will the 50PPR resolution require any PLC program changes?
A: No, if you are replacing a 50PPR unit with another 50PPR unit. The position scaling constants, velocity calculation parameters, and HSC module configuration in your PLC program remain unchanged. If you are upgrading to a different PPR resolution, update the pulses-per-unit scaling constant in your motion program accordingly.

Q: Is the AV56A-1XFX6YXGP50 compatible with both 5V and 24V encoder power supplies?
A: Yes. The 5–30 VDC supply range covers both 5V TTL-level encoder power rails and standard 24 VDC control cabinet power buses. No power supply modification is required in either case.

Q: How do I verify the encoder is functioning correctly after installation?
A: After installation, use your PLC’s HSC module diagnostic screen or online monitoring function to verify that the A and B channel pulse counts increment correctly as the shaft rotates. Confirm that the count direction matches the expected positive/negative motion direction. If a Z-channel (index pulse) is used for homing, verify that the homing routine completes successfully before returning the machine to automatic operation.

Q: What is the physical installation space requirement?
A: The AV56A-1XFX6YXGP50 uses the standard 56mm AV Series body. Ensure that the rear cable exit clearance is maintained — typically 80–100mm behind the encoder body for the cable bend radius. No additional mounting bracket or adapter plate is required for a like-for-like replacement.

Q: Can this encoder be used in a Profibus or EtherNet/IP network?
A: The AV56A-1XFX6YXGP50 is an incremental pulse output encoder, not a fieldbus encoder. It connects directly to HSC or counter input modules on the PLC backplane. For Profibus DP or EtherNet/IP encoder applications, a separate encoder interface module or a fieldbus-native absolute encoder would be required.

Warranty Assurance

Every AV56A-1XFX6YXGP50 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes outgoing inspection including visual examination, electrical continuity verification, and output signal validation. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch within the warranty period. Customers are asked to retain the original packaging and provide a brief fault description to initiate the warranty process. Our after-sales response target is one business day for initial acknowledgment and three business days for replacement dispatch on confirmed warranty cases.

For procurement teams managing spare parts inventory, TOPNLMS can supply multiple units under a single purchase order with consolidated shipping from Xiamen, China. Lead times for standard stock items are typically 3–7 business days for international express shipment. Customers requiring expedited dispatch for emergency breakdown situations should contact our sales team directly to confirm real-time stock availability.

TOPNLMS maintains a quality management process aligned with industrial component supply standards. All units are sourced through verified supply channels and are not refurbished or reconditioned unless explicitly stated. Certificate of conformance documentation is available upon request for customers with incoming inspection requirements.
