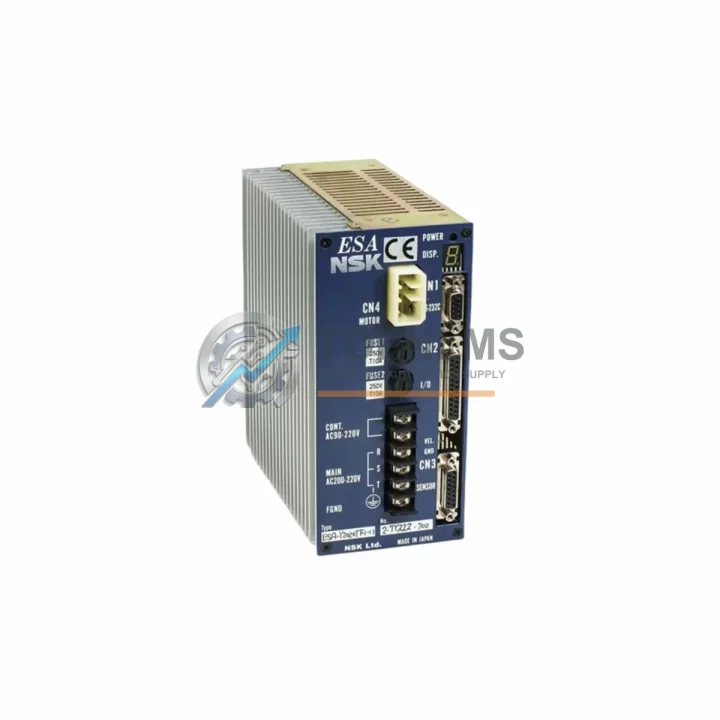

NSK ESA-Y2020TF1-11 Ruggedized AC Servo Drive Module

Product Overview

NSK ESA-Y2020TF1-11 Ruggedized AC Servo Drive Module: Industrial Resilience for Harsh Environments

The NSK ESA-Y2020TF1-11 is a high-performance AC servo drive from NSK’s proven ESA-Y Series, engineered to deliver precise motion control and sustained reliability in the most demanding industrial environments. Whether deployed on continuous production lines, heavy-duty machining centers, or safety-critical automation systems, this servo amplifier module is built to perform where standard drives fail.

Designed for integration with NSK’s servo motor ecosystem, the ESA-Y2020TF1-11 provides smooth torque response, high-speed positioning accuracy, and robust resistance to electrical noise — making it an ideal choice for engineers and procurement teams sourcing dependable motion control components for long-term plant operations.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, a servo drive does not operate in isolation. The NSK ESA-Y2020TF1-11 is typically deployed alongside a coordinated set of protection, control, and communication components that together ensure system-wide stability and safety.

Within the same control cabinet, the ESA-Y2020TF1-11 is commonly paired with NSK Megatorque Motor System servo motors, which are matched to the ESA-Y amplifier’s torque and speed curves for optimal closed-loop performance. On the power supply side, a dedicated 24VDC industrial power supply — such as those from the OMRON S8VS series or Siemens SITOP PSU100S — provides stable, noise-filtered DC power to the drive’s logic circuits, preventing control faults caused by voltage fluctuations on the plant floor.

For upstream motion coordination, the ESA-Y2020TF1-11 receives position commands from a PLC motion controller — commonly a Mitsubishi MELSEC Q-series or iQ-R series CPU module — via high-speed pulse train output. In more complex multi-axis systems, a PROFIBUS DP communication module or EtherCAT gateway module may be inserted between the PLC and the drive to enable real-time fieldbus coordination across multiple servo axes.

Electrical safety within the cabinet is reinforced by Phoenix Contact or Weidmüller terminal blocks for clean signal wiring, combined with surge protection modules on I/O lines to guard against transient spikes from inductive loads. A safety relay module — such as the Pilz PNOZ or Schneider Preventa series — is typically wired into the drive’s STO (Safe Torque Off) input circuit to provide IEC 62061-compliant emergency stop functionality.

For facilities running continuous production, an uninterruptible power supply (UPS) module upstream of the servo system ensures that brief grid disturbances do not cause uncontrolled axis stops, protecting both the workpiece and the mechanical drivetrain from sudden deceleration events.

Application in Critical Infrastructure

The NSK ESA-Y2020TF1-11 has established a strong track record across a wide range of critical industrial sectors where motion control reliability is non-negotiable.

In oil and gas processing facilities, servo-driven valve actuators and metering pump systems rely on drives like the ESA-Y2020TF1-11 to maintain precise flow control under high-pressure, high-temperature conditions. The drive’s robust EMI immunity ensures stable operation even in environments saturated with variable-frequency drive harmonics and high-voltage switching noise.

In mining and mineral processing operations, where vibration from crushers, conveyors, and drilling equipment is constant, the ESA-Y Series’ vibration-resistant design and sealed control board components prevent premature failure of solder joints and connector interfaces — a common failure mode for lesser-grade drives in these environments.

In power generation and electrical utilities, the ESA-Y2020TF1-11 is used in turbine governor systems and cooling fan control applications, where precise speed regulation directly impacts grid stability. Its ability to maintain closed-loop accuracy under load transients makes it a preferred choice for utility-grade automation engineers.

In water treatment and municipal infrastructure, servo-driven dosing systems and sluice gate actuators benefit from the drive’s low-speed torque stability and position repeatability, ensuring accurate chemical dosing and flow management even during off-peak low-load conditions.

In metallurgy and steel production, the drive is deployed in rolling mill positioning systems and ladle transfer car controls, where it must sustain reliable operation in environments with extreme radiant heat, heavy airborne particulates, and intense electromagnetic fields from arc furnaces and induction heaters.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will arrange for replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Our technical team will assess the failure mode and coordinate the fastest resolution path.

Q2: How is each unit tested before shipment?
Every NSK ESA-Y2020TF1-11 unit in our inventory undergoes a pre-shipment functional verification process. This includes power-on self-test, parameter initialization check, and encoder feedback signal verification where applicable. Units that do not pass inspection are quarantined and not dispatched. A test report is available upon request for critical procurement applications.

Q3: Is the ESA-Y2020TF1-11 compatible with third-party servo motors and PLCs?
The ESA-Y2020TF1-11 is optimized for use with NSK-matched servo motors within the ESA-Y ecosystem. However, it can accept standard pulse train position commands (PULSE/DIR or CW/CCW) from any compatible PLC or motion controller, including Mitsubishi, Siemens, Omron, and Keyence platforms. For motor compatibility outside the NSK range, our technical team can advise on encoder interface requirements and parameter tuning.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for this model?
Yes. TOPNLMS maintains a dedicated inventory of industrial automation spare parts including NSK servo drives, with a focus on supporting customers through extended production lifecycles. If the ESA-Y2020TF1-11 reaches end-of-life status from the OEM, our team can assist with cross-reference identification of compatible replacement models and provide transition support to minimize downtime risk for your facility.
