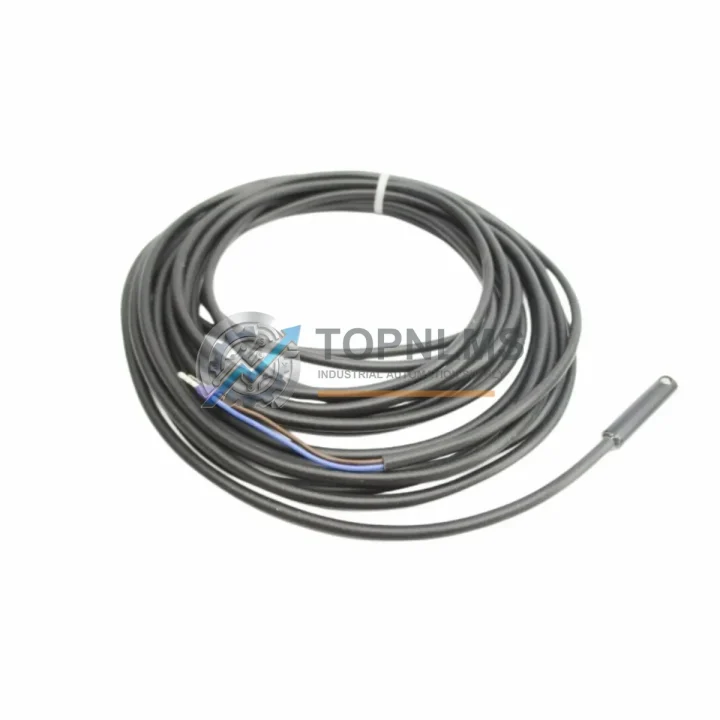

Norgren M/50/LSU/5V Ruggedized Position Sensor for Harsh Environments

In demanding industrial environments where reliability is non-negotiable, the Norgren M/50/LSU/5V magnetic reed switch pneumatic cylinder position sensor stands as a proven solution for continuous, accurate position detection. Engineered under Norgren’s globally recognized M/50 Series platform, this module delivers consistent performance across high-vibration, high-humidity, dusty, and electromagnetically noisy production environments. Whether installed on a packaging line, a hydraulic press, a conveyor actuator, or a heavy-duty robotic arm, the M/50/LSU/5V provides the positional feedback that keeps automated systems running without interruption.

The sensor operates on a 5V DC supply, making it directly compatible with a wide range of PLC digital input modules, including Siemens S7-300/S7-400 SM321 input cards, Allen-Bradley 1756-IB16 ControlLogix I/O modules, and Schneider Electric Modicon M340 discrete input modules. Its magnetic reed switching mechanism eliminates mechanical contact wear, ensuring a long service life even under millions of actuation cycles — a critical advantage in high-throughput manufacturing cells where sensor replacement causes costly downtime.

Rugged Specifications Table

Comprehensive Protection Solutions

The M/50/LSU/5V is rarely deployed in isolation. In a well-engineered control cabinet or field panel, it works in concert with a full ecosystem of protective and control components. When commissioning or replacing this sensor, maintenance engineers should simultaneously inspect the Norgren M/50 Series pneumatic cylinder body for seal wear and bore scoring — a degraded cylinder will shorten sensor life regardless of sensor quality. The sensor’s 5V signal line should be routed through a signal isolator or surge protection module such as a Phoenix Contact TRABTECH or Weidmüller signal conditioner to guard against voltage spikes from nearby variable frequency drives or motor starters.

On the PLC side, verify that the connected digital input module — whether a Siemens SM321, an Allen-Bradley 1756-IB16, or a Mitsubishi QX40 I/O card — is functioning correctly and that its input filter time is set appropriately for the sensor’s switching speed. A faulty input card can mask a perfectly functional sensor, leading to misdiagnosis and unnecessary replacement. Alongside the sensor, inspect the pneumatic solenoid valve controlling the cylinder — such as a Norgren V61 or Festo MFH series valve — since valve spool wear or coil failure is a common co-failure mode during position sensor replacement events.

Power supply integrity is equally critical. A 24V DC industrial power supply such as a Siemens SITOP PSU100S or Phoenix Contact QUINT series unit with adequate current headroom ensures stable 5V regulation at the sensor. Unstable supply voltage is a leading cause of intermittent reed switch faults in the field. Additionally, inspect the terminal blocks and cable connectors in the junction box — corroded Weidmüller or Phoenix Contact terminal blocks introduce resistance that distorts low-voltage sensor signals. Replace any discolored or pitted terminals during the same maintenance window to prevent recurrence.

For facilities running Profibus DP or Profinet networks, confirm that the communication module — such as a Siemens CP 342-5 or CP 343-1 — is correctly configured to handle the I/O update cycle for position feedback loops. In safety-critical applications such as press guarding or robotic cell interlocking, the sensor output may feed into a safety relay module such as a Pilz PNOZ or Schmersal SRB series device that requires periodic functional testing per IEC 62061 or ISO 13849 standards. Ensuring the full signal chain — from sensor through I/O module to safety controller — is verified during commissioning is essential for SIL-rated installations.

Application in Critical Infrastructure

The Norgren M/50/LSU/5V finds its most demanding deployments in critical infrastructure sectors where unplanned downtime carries severe operational and financial consequences. In oil and gas processing facilities, pneumatic actuators fitted with M/50 cylinders control valve positions on separator vessels and pipeline manifolds. The sensor’s IP67 rating and vibration tolerance make it suitable for installation near compressor skids and pump stations where mechanical noise and hydrocarbon vapors are constant environmental factors.

In mining and mineral processing operations, the M/50/LSU/5V monitors the position of pneumatic clamps, feeders, and diverter gates on conveyor systems. Dust ingress and mechanical shock from crusher vibration are primary failure drivers in this environment — the sensor’s sealed reed mechanism provides a meaningful service life advantage over optical or inductive alternatives. Power generation plants — including coal, gas, and hydroelectric facilities — use M/50 Series sensors on turbine auxiliary systems, cooling water valve actuators, and fuel handling equipment, where continuous 24/7 operation is mandatory and sensor failure is not an acceptable outcome.

Water and wastewater treatment facilities deploy these sensors on pneumatic actuators controlling sluice gates, chemical dosing valves, and filtration backwash systems. The combination of high humidity, chemical exposure, and outdoor installation makes IP67 protection a baseline requirement rather than a premium feature. In steel and metallurgical plants, the sensor operates in environments with radiated heat from furnaces, heavy electromagnetic interference from arc furnaces, and floor-level vibration from rolling mills — conditions that validate every aspect of the M/50/LSU/5V’s rugged design specification and confirm its suitability as a long-term spare parts investment.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Norgren M/50/LSU/5V?
Every unit supplied by TOPNLMS carries a 12-month warranty from the date of dispatch. Each sensor undergoes functional testing — including switching response verification and insulation resistance checks — before shipment. Warranty claims are supported with replacement or full refund within the coverage period, with no hidden conditions.

Q2: How is compatibility with my existing M/50 cylinder confirmed before purchase?
The M/50/LSU/5V is designed exclusively for Norgren M/50 Series pneumatic cylinders with T-slot or band-mount sensor grooves. Provide your cylinder bore size and stroke length when inquiring, and our technical team will confirm fitment. Cross-reference with your cylinder’s nameplate data or Norgren catalog drawing for definitive confirmation prior to ordering.

Q3: Can this sensor be used as a direct replacement without system reconfiguration?
Yes. The M/50/LSU/5V is a direct form-fit-function replacement for original Norgren M/50 Series reed switch sensors. No PLC parameter changes or wiring modifications are required provided the replacement unit matches the original supply voltage (5V DC) and output polarity. Confirm the cable connector type before ordering if your installation uses a pre-wired connector rather than a bare lead.

Q4: What is the lead time and shipping arrangement for urgent maintenance requirements?
In-stock units are dispatched within 1–2 business days via DHL Express, FedEx International Priority, or TNT, with full tracking provided. For urgent plant shutdowns or emergency maintenance windows, contact [email protected] or call +86 18359293191 to confirm real-time stock availability and expedited dispatch options.
