Nordson ASYMTEK ASM7211930G Replacement for Fluid Dispensing

Product Overview

Nordson ASYMTEK ASM7211930G Replacement for Fluid Dispensing Series: Smooth Transition & Legacy System Compatibility

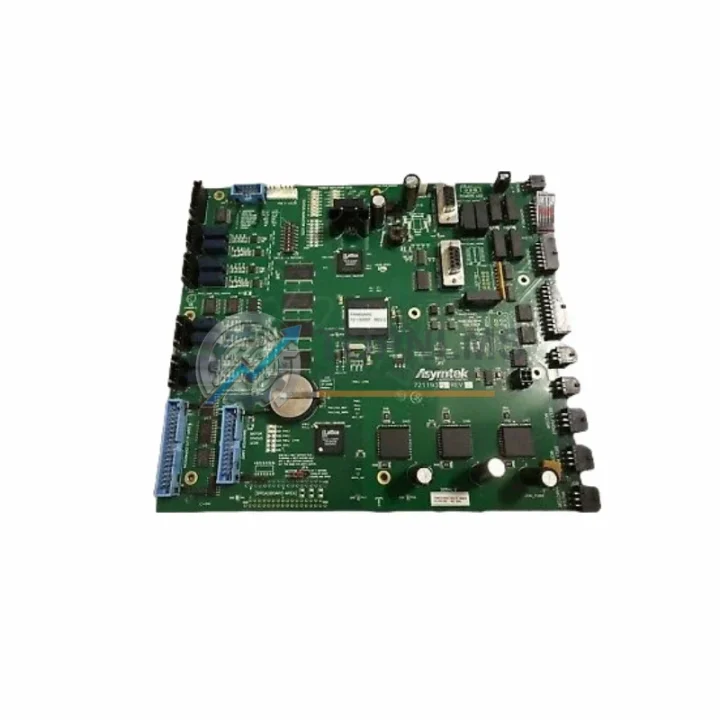

When your Nordson ASYMTEK Fluid Dispensing system relies on the 7211930 / ASM7211930G Main Control Board and the original unit fails or reaches end-of-life, unplanned downtime can cascade across your entire production line. TOPNLMS supplies this exact replacement control board — sourced, tested, and shipped within 24 hours from Xiamen — to restore your dispensing system to full operation with minimal disruption.

The ASM7211930G is the central processing and motion-coordination board within the ASYMTEK Fluid Dispensing platform. It governs servo axis control, dispense valve timing, vision alignment triggers, and real-time communication with the host PC via the proprietary ASYMTEK software interface. Replacing this board does not require reprogramming your dispense recipes or recalibrating your needle offsets, provided the replacement unit carries the same firmware revision — a critical advantage when migrating from a failed board mid-production.

Many facilities running legacy ASYMTEK D-Series, S-Series, or C-Series dispensers have encountered this board as the single point of failure after years of continuous operation. The ASM7211930G interfaces directly with the motion controller daughterboard, the I/O expansion backplane, and the vision system camera trigger circuit. When upgrading from an older revision of this board, engineers should verify the ribbon cable connector pitch and the firmware version stored in the onboard flash memory before powering up the replacement unit.

In retrofit scenarios where the host PC has been upgraded from Windows XP to Windows 10, the ASM7211930G must be paired with the correct ASYMTEK software driver stack. The board communicates over a dedicated RS-232 or USB-to-serial bridge depending on the system generation. Facilities migrating from the older 7211800-series control board will find the ASM7211930G a direct form-factor replacement, with identical DIN rail mounting dimensions and the same 24 VDC logic supply input — eliminating the need to modify the control cabinet wiring harness.

For sites running multi-head dispensing cells, the ASM7211930G coordinates with the secondary axis controller board and the pneumatic valve driver module. When replacing the main control board in a dual-head configuration, it is advisable to also inspect the valve driver module and the I/O terminal block assembly for signs of voltage stress or connector oxidation, as these components share the same logic power rail. Replacing the control board without addressing degraded connectors on the terminal block can result in intermittent faults that are difficult to diagnose after reassembly.

The board’s onboard diagnostics LED array provides real-time status for the servo enable line, the E-stop circuit, the vision trigger output, and the dispense valve solenoid driver. During commissioning of a replacement ASM7211930G, technicians should confirm all six status LEDs cycle correctly through the power-on self-test sequence before enabling the servo axes. This step is especially important when the replacement board is installed in a system that previously experienced a power surge or brownout event, which may have also affected the servo amplifier module or the 48 VDC servo power supply.

TOPNLMS maintains stock of the ASM7211930G alongside related ASYMTEK dispensing system components, including the motion controller daughterboard, the pneumatic pressure regulator assembly, the vision system interface card, the dispense valve solenoid driver board, the I/O expansion backplane, the servo amplifier module, the 24 VDC logic power supply, the needle calibration fixture, and the host PC communication cable. This allows customers to consolidate their replacement order and reduce the number of separate procurement events required to return a failed dispensing cell to production.

All units supplied by TOPNLMS are inspected and function-tested prior to shipment. We ship from Xiamen with DHL Express, FedEx International Priority, or sea freight depending on order volume and urgency. Export documentation, including commercial invoice and packing list, is prepared to comply with CN customs regulations and destination country import requirements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ASM7211930G board swap rarely involves the control board alone. In most field retrofit scenarios, the following components are evaluated or replaced concurrently to ensure system stability after the main control board is restored:

The motion controller daughterboard sits directly beneath the ASM7211930G and handles real-time interpolation for the X, Y, and Z servo axes. If the main board failure was caused by a power event, the daughterboard should be tested independently before the new ASM7211930G is powered up. Similarly, the servo amplifier module — which drives the brushless servo motors on each dispensing axis — should be inspected for fault codes stored in its non-volatile memory, as these codes can indicate whether the amplifier contributed to the original board failure.

The I/O expansion backplane connects the ASM7211930G to external sensors, conveyor interlocks, and safety circuits. Technicians performing a board replacement should verify that all I/O terminal connections are secure and that the backplane’s ribbon cable is free of damage. The pneumatic valve driver board controls the solenoid valves that regulate fluid pressure to the dispensing needle; this board communicates with the ASM7211930G via a dedicated internal bus and should be confirmed operational before resuming production.

For facilities upgrading the host PC as part of the same maintenance window, the host PC communication cable (RS-232 to USB adapter with the correct FTDI chipset) must be sourced alongside the replacement control board to avoid driver compatibility issues. The 24 VDC logic power supply that feeds the ASM7211930G and its peripheral boards should also be load-tested, as a marginal power supply is a common root cause of repeated control board failures in high-cycle dispensing environments.

Finally, the needle calibration fixture and the vision system interface card are typically recalibrated after any main control board replacement to ensure dispense accuracy is restored to specification. TOPNLMS can supply all of these components from stock, allowing customers to place a single consolidated order and reduce total system downtime.

Retrofit Guidance FAQ

Q: Do I need to rewire the control cabinet when installing the ASM7211930G?
A: No. The ASM7211930G uses the same DIN rail footprint and 24 VDC logic supply connector as the previous 7211800-series board. All existing wiring harnesses connect directly without modification.

Q: Will my existing dispense recipes and programs transfer to the new board?
A: Yes, provided the firmware revision on the replacement board matches your system generation. Dispense recipes are stored on the host PC, not on the control board itself, so no recipe data is lost during a board swap.

Q: Which communication protocol does the ASM7211930G use?
A: The board communicates with the host PC via RS-232 serial on older system generations, or via a USB-to-serial bridge (FTDI-based) on newer configurations. Confirm your system generation before ordering the communication cable.

Q: How much physical space does the replacement board require?
A: The ASM7211930G is a direct form-factor replacement for the 7211800-series board. No control cabinet modifications are required. The board mounts on the existing DIN rail using the original hardware.

Q: Can I replace the board myself, or do I need a certified ASYMTEK technician?
A: Board replacement is a field-serviceable procedure. TOPNLMS provides installation guidance documentation with each shipment. For first-time replacements, we recommend verifying the power-on self-test LED sequence before enabling servo axes.

Q: What if the replacement board does not resolve the fault?
A: TOPNLMS offers a 12-month warranty with return-and-replace support. If the ASM7211930G does not resolve the system fault, our technical team will assist in diagnosing whether the root cause lies in a peripheral component such as the servo amplifier or I/O backplane.

Warranty Assurance

Every ASM7211930G supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a function test covering power-on self-test completion, servo enable signal output, E-stop circuit continuity, and communication port integrity. Units that do not pass all test criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS will arrange return shipping and dispatch a replacement unit within 3 business days of receiving the defective board. Our after-sales response team is reachable by email at [email protected] and by phone at +86 18359293191. We maintain a dedicated stock buffer of the ASM7211930G to ensure warranty replacements are fulfilled without delay.

For customers purchasing multiple units for critical spare inventory, TOPNLMS offers consolidated shipment with full export documentation. All units are packed in anti-static ESD bags with foam cushioning and clearly labeled with part number, serial number, and test date for traceability.

Procurement teams can request a proforma invoice, certificate of conformance, or packing list in advance of payment. We accept T/T bank transfer and support standard B2B procurement workflows including PO-based ordering.
