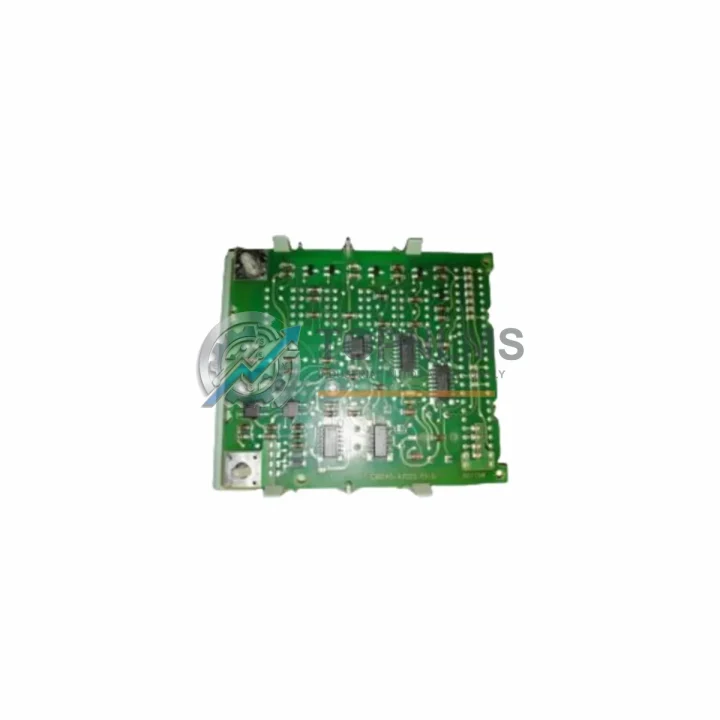

NEC Y6ZA08-R8520-NDR064RTP86Z Replacement for R8520: Smooth Transition from Legacy DCS

Migrating away from an aging distributed control system is one of the most operationally sensitive decisions a plant engineer faces. The NEC Y6ZA08-R8520-NDR064RTP86Z DCS controller card is a proven replacement and upgrade solution for facilities running legacy NEC R8520 series control platforms. Whether your existing controller card has failed, is approaching end-of-life, or your OEM support contract has lapsed, this module delivers the electrical, mechanical, and communication compatibility needed to restore or modernize your control loop without a full system overhaul.

The R8520 series was widely deployed across process industries including petrochemical, power generation, water treatment, and discrete manufacturing. Over time, original controller cards such as the Y6ZA08 variant have become increasingly difficult to source through standard distribution channels. TOPNLMS maintains verified stock of this module, fully tested and ready for immediate dispatch from our Xiamen facility.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy NEC R8520 DCS environment rarely involves a single card swap. In practice, plant engineers undertaking this type of retrofit will also evaluate the condition and compatibility of surrounding system components. During the replacement of the Y6ZA08 controller card, it is common to simultaneously inspect or replace the NEC R8520 power supply module, which feeds the controller backplane, and the R8520 I/O expansion modules that handle analog and digital field signals. If the existing NEC DCS communication interface card is also aging, replacing it alongside the controller card eliminates a secondary failure point and avoids a repeat shutdown.

For facilities that use a redundant controller configuration, the standby controller card — often an identical Y6ZA08 variant — should be evaluated at the same time. Running a modernized primary card against an unchecked legacy standby introduces asymmetric risk during failover events. Similarly, the R8520 backplane or rack assembly should be inspected for corrosion, connector wear, or mechanical fatigue, particularly in high-vibration or high-humidity environments.

Where the migration scope extends to the operator interface layer, engineers frequently pair this controller card replacement with an updated NEC or third-party HMI panel that supports the same DCS communication protocol, preserving existing tag structures and alarm configurations. In cases where the legacy system used a dedicated programming cable or engineering workstation interface for NEC DCS configuration tools, verifying cable and driver compatibility with the replacement card before site commissioning is strongly recommended.

For installations where field signal integrity is a concern — particularly in older cable runs with mixed grounding — adding signal isolators or surge protection modules at the I/O termination points is a low-cost measure that significantly reduces the risk of controller card damage after installation. Finally, if the control cabinet houses a legacy NEC DCS network switch or communication repeater, confirming its firmware and port configuration against the replacement card’s communication requirements will prevent unexpected network faults during startup.

Retrofit Guidance FAQ

Q: Do I need to rewire field cables when installing the Y6ZA08-R8520-NDR064RTP86Z?
A: No. This module uses the same terminal block and wiring harness configuration as the original R8520 controller card. Field wiring can be re-terminated directly without modification, which is one of the primary advantages of a like-for-like replacement over a cross-platform migration.

Q: Can I re-use my existing NEC DCS engineering project without reprogramming?
A: Yes. The Y6ZA08 replacement card accepts the same project download from the NEC DCS engineering tool. No logic rewrite is required. It is recommended to perform a full project backup before the swap and verify all I/O tags after the first power-on.

Q: Is the communication protocol compatible with the rest of my R8520 system?
A: Yes. The module communicates over the native NEC R8520 backplane bus and any associated RS-485 or proprietary DCS network segments. No protocol converters or gateway devices are needed.

Q: Will this card fit in my existing control cabinet without mechanical modification?
A: Yes. The Y6ZA08-R8520-NDR064RTP86Z has an identical physical footprint to the original card. It slots directly into the existing R8520 rack without any cabinet modification, bracket changes, or DIN rail adaptation.

Q: What if I am migrating from a different NEC DCS series to the R8520 platform?
A: Cross-series migrations require a compatibility assessment. Contact our technical team at [email protected] with your existing system model and I/O count. We will advise on interface adapters, backplane compatibility, and any wiring changes required.

Warranty Assurance

Every NEC Y6ZA08-R8520-NDR064RTP86Z unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a functional verification check to confirm power-on behavior, backplane interface integrity, and communication port operation. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the fault assessment. Our after-sales response target is within 24 business hours of claim submission. We maintain reserve stock of high-demand modules specifically to support rapid warranty replacements, minimizing the impact on your production schedule.

All orders are shipped with full documentation including a packing list, test record, and warranty certificate. Export packaging is designed for international freight and complies with standard industrial equipment handling requirements. Typical dispatch time from confirmed order is 1–3 business days.

For procurement teams requiring formal quotations, lead time confirmation, or third-party inspection arrangements, contact us directly. We support standard B2B procurement workflows including PO-based ordering, proforma invoices, and pre-shipment inspection coordination.
