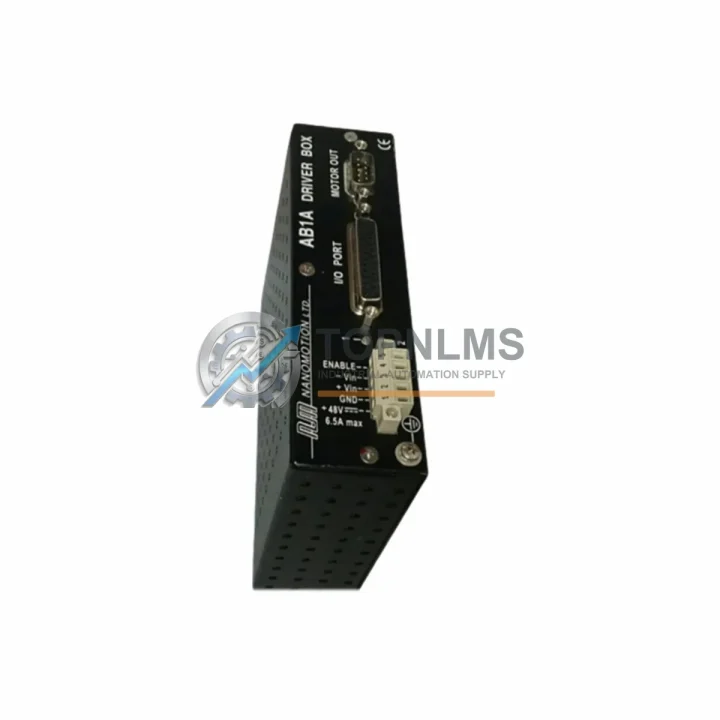

NANOMOTION AB1A-2A-HR-E4 Ruggedized Servo Driver Module

Product Overview

NANOMOTION AB1A-2A-HR-E4 Ruggedized Dual-Axis Piezoelectric Servo Driver: Industrial Resilience for Harsh Environments

The NANOMOTION AB1A-2A-HR-E4 is a high-performance dual-axis piezoelectric servo driver engineered for continuous, reliable operation in the most demanding industrial environments. Designed within NANOMOTION’s proven AB1A Series, this module delivers sub-micron positioning precision combined with exceptional resistance to electromagnetic interference (EMI), mechanical vibration, thermal cycling, and airborne contaminants — making it the preferred choice for mission-critical automation systems where downtime is not an option.

Unlike conventional electromagnetic servo drives, the AB1A-2A-HR-E4 leverages piezoelectric actuation technology, which inherently eliminates magnetic field sensitivity and enables ultra-clean, spark-free motion control. This makes it ideally suited for hazardous area installations, cleanroom automation, semiconductor fabrication, and precision optical alignment systems operating within larger PLC or DCS-controlled architectures.

Rugged Specifications Table

Comprehensive Protection Solutions

The AB1A-2A-HR-E4 is rarely deployed in isolation. In a fully integrated control cabinet, it operates alongside a range of complementary industrial automation components that together ensure system-wide reliability and safety. The driver’s analog ±10V command interface connects seamlessly to Siemens S7-1500 PLC analog output modules, allowing the PLC’s CPU to orchestrate multi-axis motion sequences with deterministic timing. For applications requiring fieldbus integration, the AB1A-2A-HR-E4 can be paired with PROFIBUS DP or EtherCAT communication modules to synchronize motion data across distributed I/O networks.

Power integrity is critical for piezoelectric drive performance. A dedicated 24–48 VDC industrial power supply with active power factor correction and surge suppression — such as those from the Phoenix Contact QUINT series or Siemens SITOP PSU series — ensures the AB1A-2A-HR-E4 receives clean, stable DC power even when heavy inductive loads like variable frequency drives (VFDs) or motor starters switch on the same bus. Inline EMI filters and ferrite chokes on the power feed further protect the driver’s sensitive piezoelectric control circuitry.

On the safety side, the AB1A-2A-HR-E4 integrates naturally with safety relay modules and safety PLCs conforming to IEC 62061 and ISO 13849 standards. A Pilz PNOZ or Siemens SIRIUS 3SK safety relay can monitor the drive’s enable signal and trigger a controlled stop in the event of a guard door opening or emergency stop activation, ensuring SIL 2 / PLd compliance for the overall machine. Terminal block modules from Weidmüller or Phoenix Contact provide organized, vibration-resistant wiring terminations within the control cabinet, reducing the risk of intermittent connections caused by mechanical shock.

For encoder feedback integrity in high-EMI environments, shielded encoder cables with 360° shield termination at the drive end — combined with signal isolators where necessary — prevent noise-induced position errors. When the AB1A-2A-HR-E4 is installed near high-power switching equipment such as servo amplifiers or soft starters, proper cable segregation and grounding practices, guided by the control cabinet layout, are essential to maintaining positioning accuracy at the nanometer scale.

Application in Critical Infrastructure

The NANOMOTION AB1A-2A-HR-E4 has established a strong track record across critical infrastructure sectors where precision, uptime, and environmental resilience are non-negotiable.

In semiconductor fabrication and flat-panel display manufacturing, the AB1A-2A-HR-E4 drives wafer-stage and reticle-stage positioning systems where sub-micron repeatability directly impacts yield. Its non-magnetic, spark-free operation is essential in cleanroom environments where conventional electromagnetic drives would introduce contamination risks or interfere with sensitive lithography equipment.

In oil and gas upstream and midstream facilities, the driver is deployed in analytical instrument positioning systems and valve actuator control within classified hazardous areas. Installed within explosion-proof or purged-and-pressurized control enclosures, the AB1A-2A-HR-E4 maintains reliable operation despite the presence of flammable gases, high ambient temperatures, and persistent mechanical vibration from compressors and pumps.

In power generation and transmission, including nuclear and thermal power plants, the AB1A-2A-HR-E4 supports precision positioning of optical sensors, beam-steering mirrors, and diagnostic instruments. Its immunity to strong magnetic fields — a natural consequence of piezoelectric technology — makes it uniquely suited for environments near large transformers, generators, and high-current busbars where conventional servo drives would require extensive shielding.

In precision metrology and quality inspection on heavy industrial production lines — including automotive body-in-white assembly, aerospace component machining, and metallurgical testing — the AB1A-2A-HR-E4 enables high-speed, high-accuracy scanning and probing operations. Its ability to hold position without power consumption (piezoelectric self-locking) reduces heat generation in thermally sensitive measurement environments.

In water treatment and chemical processing plants, where corrosive atmospheres and high humidity are constant challenges, the AB1A-2A-HR-E4 is housed in IP65 or higher-rated enclosures and used to control dosing mechanisms, analytical instrument stages, and valve trim actuators with the precision that conventional pneumatic or hydraulic systems cannot achieve.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the AB1A-2A-HR-E4?
All AB1A-2A-HR-E4 units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions. Each unit undergoes pre-shipment functional testing including axis response verification, encoder feedback validation, and power-on self-test. In the event of a warranty claim, TOPNLMS provides advance replacement support to minimize production downtime.

Q2: How is each unit tested before shipment?
Every AB1A-2A-HR-E4 is subject to a multi-stage outgoing quality control (OQC) process. This includes visual inspection for physical damage, power-on functional test, dual-axis drive output verification, communication interface check (RS-232 and analog), and thermal burn-in screening. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the AB1A-2A-HR-E4 compatible with my existing PLC or DCS system?
Yes. The AB1A-2A-HR-E4’s analog ±10V command interface is universally compatible with analog output modules from Siemens, Mitsubishi, Omron, Beckhoff, Rockwell Automation, and other major PLC and DCS platforms. For digital fieldbus integration, the driver can be interfaced via external motion controllers supporting PROFIBUS, EtherCAT, or CANopen. TOPNLMS technical support can assist with integration guidance for your specific control architecture.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for the AB1A-2A-HR-E4?
TOPNLMS maintains dedicated stock of NANOMOTION AB1A Series drivers to support long-term MRO (maintenance, repair, and operations) procurement. For facilities running continuous production lines or critical infrastructure where unplanned downtime carries significant cost, we recommend establishing a consignment stock or blanket order arrangement. Our team can provide lead-time commitments, certificate of conformance documentation, and cross-reference support for legacy NANOMOTION driver models to ensure seamless backward compatibility.
