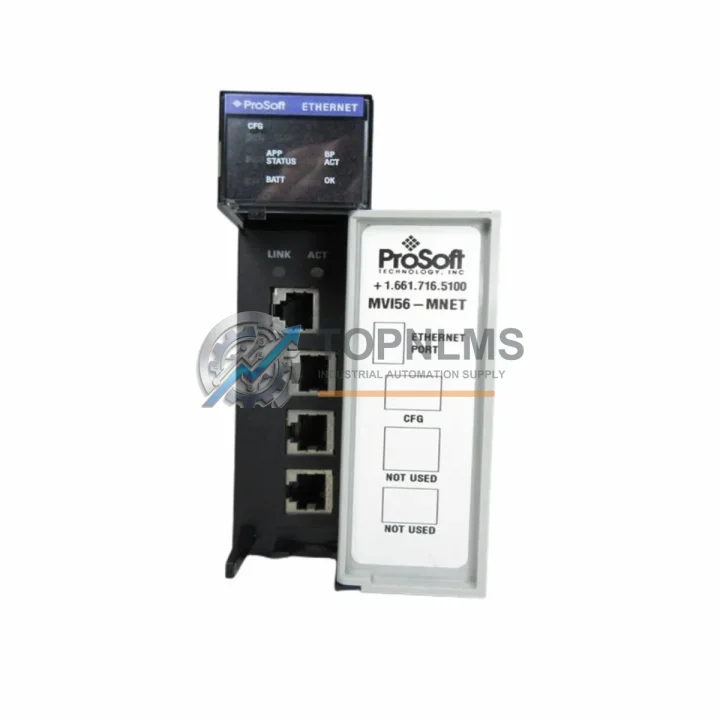

Prosoft MVI56-MNET Ruggedized Modbus TCP/IP Module

Product Overview

Prosoft MVI56-MNET Ruggedized Modbus TCP/IP Module for Harsh Industrial Environments

The Prosoft MVI56-MNET is a high-performance, industrially hardened Modbus TCP/IP communication module engineered for Allen-Bradley ControlLogix 1756-series backplane architectures. Built to sustain continuous, fault-free operation in the most punishing field conditions — sustained high ambient temperatures, elevated humidity, airborne particulate contamination, persistent mechanical vibration, and intense electromagnetic interference — the MVI56-MNET delivers deterministic, low-latency data exchange between ControlLogix PLCs and Modbus TCP/IP-compliant field devices across mission-critical production environments where communication failure is not an option.

In heavy industrial facilities such as oil refineries, gas compression stations, underground mining operations, high-voltage power substations, municipal water treatment plants, and primary metals processing lines, communication integrity is non-negotiable. The MVI56-MNET addresses this requirement by providing a deterministic Modbus TCP/IP gateway that maintains stable register mapping and polling cycles even when installed adjacent to variable frequency drives, large motor starters, arc furnaces, or high-current bus bars that generate significant conducted and radiated EMI. Its conformal-coated PCB construction and robust backplane connector ensure long-term mechanical and electrical reliability in environments where lesser modules fail prematurely.

The module mounts directly into the ControlLogix chassis alongside 1756-series I/O modules, processor cards such as the 1756-L71 or 1756-L83, and power supply units including the 1756-PA72 and 1756-PB72. Its backplane communication leverages the standard ControlLogix messaging infrastructure, enabling seamless integration with existing ladder logic, function block, or structured text programs without requiring additional driver software on the controller side. Configuration is handled through ProSoft Configuration Builder (PCB), which allows engineers to define up to 100 simultaneous Modbus TCP/IP client or server connections, map data blocks to controller tags, and set watchdog timers that trigger safe-state outputs if network connectivity is lost — a critical safety feature for continuous process lines where an undetected communication fault could result in uncontrolled equipment operation.

In petrochemical and upstream oil and gas applications, the MVI56-MNET is frequently deployed to interface ControlLogix safety PLCs with remote terminal units (RTUs), flow computers, and pressure transmitters distributed across hazardous areas. When paired with intrinsically safe barriers, Zener diode isolators, or galvanic isolators mounted in the same control cabinet, the module supports architectures that meet IEC 61511 functional safety requirements for SIL-rated loops. Engineers working on burner management systems, emergency shutdown (ESD) panels, or fire and gas detection networks will find the MVI56-MNET’s deterministic polling behavior and configurable fault reporting essential for maintaining the integrity of their safety instrumented functions.

For mining and mineral processing environments, where conveyor drives, crushers, ball mills, and flotation cell agitators generate persistent vibration and electrical noise, the MVI56-MNET’s robust construction ensures long-term reliability. The module can simultaneously serve as a Modbus TCP/IP master — polling remote I/O blocks, motor protection relays such as the Allen-Bradley 825-P, and intelligent motor control centers — while also acting as a Modbus TCP/IP slave, making its internal data tables available to SCADA servers, historian platforms, or energy management systems over the plant Ethernet network.

Water and wastewater treatment facilities operating 24/7 continuous production schedules rely on the MVI56-MNET to maintain communication between ControlLogix controllers and distributed pump stations, chemical dosing systems, UV disinfection units, and SCADA-connected flow meters. The module’s configurable connection timeout and automatic reconnection logic ensure that transient network disruptions are recovered automatically without requiring operator intervention or controller restart, minimizing unplanned downtime in facilities where regulatory compliance mandates continuous process monitoring.

Rugged Specifications Table

Comprehensive Protection Solutions

The MVI56-MNET delivers maximum value when deployed as part of a fully integrated ControlLogix control architecture. In a typical heavy-industry control cabinet, it operates alongside the 1756-L71 ControlLogix processor and the 1756-EN2T EtherNet/IP communication module, sharing the same 1756-A10 or 1756-A17 chassis. Digital and analog field signals are conditioned through 1756-IB16 digital input modules and 1756-OF8 analog output modules before being passed to the MVI56-MNET’s internal data tables for transmission to Modbus TCP/IP slave devices on the plant floor.

For applications requiring functional safety, the MVI56-MNET is commonly installed in the same panel as Allen-Bradley GuardLogix 1756-L71S safety controllers and 1791DS-IB8XOBV4 safety I/O modules, where it handles standard process communication while the safety controller independently manages SIL-rated shutdown logic. Power distribution within the cabinet is typically managed by a 1756-PA72 AC power supply or 1756-PB72 DC power supply, both of which provide the stable 5 VDC backplane voltage the MVI56-MNET requires for reliable, uninterrupted operation.

In installations where legacy serial Modbus RTU devices must also be integrated, engineers frequently pair the MVI56-MNET with the Prosoft MVI56-MCM Modbus serial communication module, allowing the ControlLogix controller to simultaneously manage both Ethernet-based and RS-232/RS-485 Modbus networks from a single chassis. For remote I/O expansion in distributed field panels, the 1734 POINT I/O system with 1734-AENT EtherNet/IP adapter provides a cost-effective way to extend the control system’s reach without additional backplane cabling. Terminal blocks from the Allen-Bradley 1492 series are used throughout the cabinet for reliable field wiring termination, and surge protection devices installed on all incoming signal and power lines protect sensitive module electronics from transient overvoltages caused by nearby lightning strikes or high-energy switching operations — a common threat in substations and heavy motor load environments.

Where communication redundancy is required, the MVI56-MNET’s dual Ethernet port configuration supports primary and secondary network paths, ensuring that a single cable or switch failure does not interrupt communication with critical protection relays, transformer monitoring units, or capacitor bank controllers. This architecture is particularly valuable in power generation facilities and water authority SCADA systems where continuous uptime is mandated by regulatory frameworks and service-level agreements.

Application in Critical Infrastructure

In upstream oil and gas production facilities, the MVI56-MNET enables ControlLogix-based wellhead controllers to communicate with Modbus TCP/IP-enabled multiphase flow meters, choke valve positioners, and gas chromatographs distributed across the production pad. Its configurable watchdog and fault output behavior ensures that a loss of Ethernet connectivity triggers a defined safe state in the PLC program — for example, closing a fail-safe shutdown valve — rather than allowing the controller to continue operating on stale process data. This behavior is essential for compliance with IEC 61511 process safety management requirements in facilities handling flammable or toxic hydrocarbons.

In underground coal and hard-rock mining operations, the module is installed in explosion-proof or purged-and-pressurized enclosures rated to IECEx or ATEX standards, where it interfaces the surface ControlLogix system with underground conveyor drive controllers, ventilation fan variable frequency drives, and methane monitoring systems. The module’s ability to maintain stable Modbus TCP/IP polling at 10 ms cycle times, even in the presence of high-frequency switching noise from nearby VFDs, makes it a preferred choice for mine automation engineers who require deterministic data acquisition from safety-critical sensors.

In electric power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — the MVI56-MNET bridges the ControlLogix distributed control system with Modbus TCP/IP-enabled protection relays, excitation controllers, and turbine governor systems. Water treatment authorities operating large-scale membrane filtration, reverse osmosis, or activated sludge treatment plants use the MVI56-MNET to consolidate data from dozens of distributed pump stations and chemical feed systems into a central ControlLogix SCADA node, enabling operators to monitor and control the entire treatment process from a single HMI workstation. In metallurgical processing — including electric arc furnace steelmaking, aluminum smelting, and copper refining — the module’s EMI immunity and conformal-coated construction allow it to operate reliably in the immediate vicinity of high-power rectifiers, induction heaters, and large transformer banks that would compromise lesser communication hardware.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions as specified in the product datasheet. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Customers should contact [email protected] with the order number, failure description, and photographic evidence of the defect to initiate a claim. Replacement units are typically dispatched within 3–5 business days of claim approval.

Q2: How is each MVI56-MNET unit tested before shipment?
Every unit undergoes a pre-shipment functional verification process that includes backplane communication testing, Ethernet port connectivity checks, and firmware version confirmation. Units sourced from authorized distribution channels are inspected for physical integrity, label authenticity, and firmware consistency with Prosoft Technology’s published release notes. A test report is available upon request for customers with quality management system requirements.

Q3: Is the MVI56-MNET compatible with all ControlLogix chassis and firmware versions?
The MVI56-MNET is compatible with all standard 1756-series ControlLogix chassis (4, 7, 10, 13, and 17 slot) and is supported by Logix Designer (RSLogix 5000) version 16 and above. Prosoft Technology regularly updates the module firmware and PCB configuration files to maintain compatibility with new ControlLogix processor firmware releases. Customers should confirm their controller firmware version against Prosoft’s compatibility matrix, available in the MVI56-MNET User Manual, before installation.

Q4: Can TOPNLMS guarantee long-term supply and provide replacement support for discontinued or hard-to-find units?
Yes. TOPNLMS maintains a dedicated inventory of current-production and legacy Prosoft MVI56-series modules, including the MVI56-MNET, to support customers with long-lifecycle industrial systems that cannot be easily upgraded. For facilities operating ControlLogix systems installed 10–15 years ago, we provide a spare-parts sourcing service that identifies functionally equivalent or direct-replacement modules when original part numbers are discontinued. Contact [email protected] with your system configuration details for a tailored supply continuity assessment.
