Murrelektronik MCS20-230/24 Original Industrial Spare MCS Compatible

Product Overview

Murrelektronik MCS20-230/24 Original Industrial Spare MCS Compatible

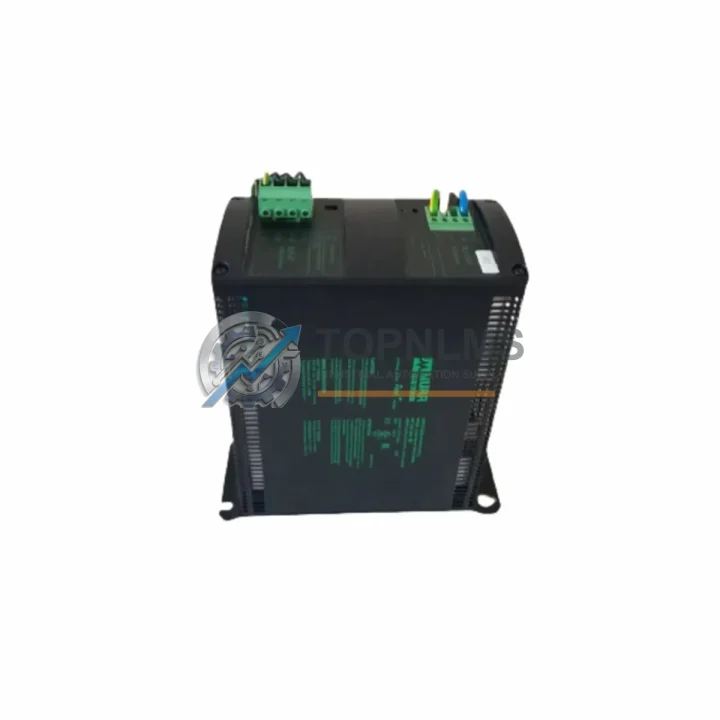

The Murrelektronik MCS20-230/24 is a compact, single-phase DIN rail-mounted power supply delivering a regulated 24 VDC output at 20 W from a 230 VAC input. Designed for continuous duty in industrial control cabinets, this unit is a cornerstone spare part for maintenance engineers responsible for keeping MCS Series-based power distribution systems operational. Whether you are managing a scheduled preventive maintenance cycle, responding to an unplanned shutdown, or building a strategic buffer stock for a multi-line production facility, the MCS20-230/24 delivers the electrical reliability and physical compatibility that industrial environments demand.

In factory environments where control cabinet uptime is non-negotiable, having a verified original spare on the shelf is the single most effective way to reduce mean time to repair (MTTR). The MCS20-230/24 slots directly into standard 35 mm DIN rail assemblies without modification, preserving the original wiring layout and terminal block connections. Its compact 45 mm width makes it suitable for densely populated control cabinets where space is at a premium, and its wide operating temperature range ensures stable performance in both climate-controlled rooms and harsh shop-floor enclosures.

Critical Technical Specs Table

Preventive Maintenance Strategy

A well-structured preventive maintenance program for industrial control cabinets goes far beyond replacing a single power supply. When a maintenance team identifies that an MCS20-230/24 has reached end-of-life indicators — such as output voltage drift, increased ripple, or thermal discoloration on the housing — it is standard practice to inspect the entire power distribution chain within the same cabinet at the same time.

During a cabinet inspection triggered by a power supply fault, engineers should simultaneously verify the condition of the 24 VDC bus terminal blocks and the associated Murrelektronik MICO or MICO Pro electronic circuit breakers that protect individual load circuits downstream. These devices share the same DC bus and are subject to the same aging stresses. If the MCS20-230/24 has failed due to sustained overload, the MICO modules may have experienced repeated trip events that degrade their internal electronics over time.

The 24 VDC output of the MCS20-230/24 typically feeds PLC I/O modules, relay modules, and signal conditioning components. In Siemens S7-300 or S7-400 installations, the 24 VDC rail powers the CPU’s load voltage input as well as distributed ET 200 I/O stations connected via PROFIBUS DP or PROFINET. A power supply failure in this context can cascade into communication faults across the entire I/O network. Keeping a spare MCS20-230/24 alongside a spare PROFIBUS connector set and a CP 342-5 communications processor ensures that the maintenance team can restore full network functionality in a single intervention.

For facilities running Murrelektronik MVK Metal or MVK Metall fieldbus I/O blocks in the field, the 24 VDC supply quality directly affects sensor signal integrity. Voltage sag or ripple from a degraded power supply can cause intermittent sensor faults that are difficult to diagnose without a calibrated power analyzer. Replacing the MCS20-230/24 proactively — before measurable output degradation occurs — eliminates this class of phantom fault entirely.

In control cabinets that also house Murrelektronik MCS40 or MCS60 higher-wattage power supplies feeding motor starters or servo drives, the MCS20-230/24 typically serves the logic and control voltage rail. Maintaining a matched set of MCS Series spares across all wattage variants ensures that any cabinet can be fully restored from a single spare parts kit. This approach is particularly valuable for facilities with multiple identical production lines, where a single spare kit can serve as a universal buffer across all lines.

Additional components that should be included in a comprehensive MCS Series cabinet spare kit include: DIN rail-mounted surge protection devices (SPDs) on the 24 VDC bus, Murrelektronik MKS or MKT modular terminal blocks for wiring restoration, and a Murrelektronik 9000-41000-0000000 or equivalent power supply monitoring relay to provide early warning of output voltage deviation before a full failure occurs. Including a spare set of fuse holders and 24 VDC rated fuses for the downstream circuit protection layer rounds out a complete preventive maintenance inventory.

Strategic Replacement Solutions

The MCS20-230/24 is a long-lifecycle product, but like all electrolytic-capacitor-based power supplies, it has a finite service life that is accelerated by high ambient temperatures, sustained near-full-load operation, and frequent power cycling. Facilities that have been operating the same MCS20-230/24 units for more than seven to ten years should treat proactive replacement as a risk mitigation measure rather than a reactive repair.

The direct replacement procedure is straightforward: isolate the 24 VDC bus, disconnect the AC input terminals and DC output terminals (noting wire labels and terminal positions), remove the unit from the DIN rail by releasing the snap-fit locking tab, and install the new MCS20-230/24 in reverse order. No firmware update, parameter configuration, or bus address assignment is required — the unit is fully plug-and-play within the MCS Series ecosystem. This simplicity minimizes the skill level required for field replacement and reduces the risk of wiring errors during a time-pressured emergency repair.

For facilities transitioning from older Murrelektronik MCS10 (10 W) units to the MCS20-230/24 to accommodate increased 24 VDC load growth, the physical footprint and terminal layout are compatible, requiring only a minor adjustment to the DIN rail mounting position to account for the slightly wider housing. This makes the MCS20-230/24 an effective capacity upgrade path without requiring cabinet redesign or rewiring.

Procurement teams should note that sourcing original Murrelektronik MCS Series spares from a verified distributor — rather than grey-market or counterfeit sources — is critical for warranty validity and long-term reliability. Each MCS20-230/24 shipped from TOPNLMS undergoes a pre-shipment functional test verifying input voltage acceptance, output voltage accuracy, and load regulation before dispatch.

Support FAQ

Q1: How do I verify that the MCS20-230/24 is the correct replacement for my existing unit?
Match the part number printed on the nameplate of the installed unit. The MCS20-230/24 designation encodes the series (MCS), output power (20 W), input voltage (230 VAC), and output voltage (24 VDC). If the nameplate is damaged, verify by measuring the AC input voltage at the terminal block and the DC output bus voltage under load. A 230 VAC input / 24 VDC output unit with a 45 mm DIN rail housing is the MCS20-230/24.

Q2: What is the recommended spare stock quantity for a multi-line production facility?
Industry best practice for critical 24 VDC logic power supplies is a minimum of one spare per five installed units, with a floor of two spares per facility regardless of installed base size. For facilities with more than twenty MCS20-230/24 units installed, a tiered approach — maintaining two immediately accessible spares in the maintenance workshop and additional units in central stores — is recommended.

Q3: Does the MCS20-230/24 require any configuration after installation?
No. The MCS20-230/24 is a fixed-output power supply with a factory-set 24 VDC output. The output voltage can be fine-adjusted ±5% via the onboard trimmer potentiometer if the application requires precise bus voltage matching, but this is not required for standard replacement. No software, programming cable, or configuration tool is needed.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects, component failures under normal operating conditions, and any unit that fails to meet its published electrical specifications. Each unit is functionally tested before shipment. In the event of a warranty claim, contact TOPNLMS with the order number and a description of the fault. A replacement unit will be dispatched after fault verification, with return shipping coordinated by our after-sales team.
