MTL MTL5546Y Replacement/Upgrade Solution for MTL5000

Product Overview

MTL MTL5546Y Replacement/Upgrade Solution for MTL5000: Smooth Transition from Legacy Zener Barrier Systems

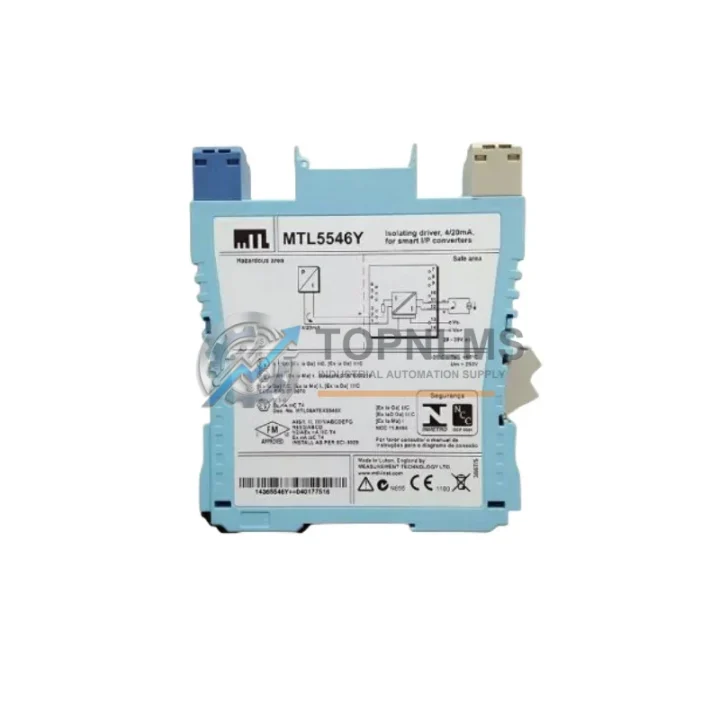

The MTL MTL5546Y is a single-channel, loop-powered isolating driver designed for the MTL5000 Series DIN-rail mounting system. It provides galvanic isolation between field instruments and control systems in Zone 0/1/2 hazardous areas, replacing legacy Zener barrier designs that require an intrinsic safety earth. Migrating from an MTL4000 Series Zener barrier or an older MTL5000 variant to the MTL5546Y eliminates the need for a dedicated IS earth bus, simplifies cabinet wiring, and reduces the risk of earth-loop interference in 4–20 mA analogue loops.

When engineering teams plan a control system modernisation — whether retiring a legacy DCS marshalling cabinet, replacing a discontinued MTL4541 or MTL4544 Zener barrier, or upgrading a brownfield plant to a modern DCS or safety instrumented system — the MTL5546Y is a proven drop-in solution. Its 35 mm DIN-rail footprint matches the MTL5000 Series backplane, so existing cable schedules, terminal assignments, and cabinet layouts require minimal revision.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy Zener barrier or early isolating driver system to the MTL5546Y typically involves coordinating several interconnected components across the same control cabinet or marshalling rack. On the power distribution side, the MTL5000 Series Power Rail (MTL5995 or MTL5996) supplies regulated 24 V DC to all modules on the backplane, eliminating individual module power wiring and simplifying the transition from older point-to-point wired barriers. Where the plant DCS communicates over HART, the MTL HART Multiplexer (such as the MTL4840 series) can be retained or upgraded in parallel, since the MTL5546Y passes HART signals transparently without additional configuration.

For field termination, the MTL5000 Series DIN-rail terminal blocks and associated MTL5000 backplane connectors allow the MTL5546Y to be inserted and removed without disturbing field wiring — a critical advantage during live plant maintenance windows. Where the legacy system used a dedicated IS earth bus bar for Zener barriers, this can be decommissioned once all channels are migrated to galvanic isolators, freeing cabinet space for additional I/O modules such as the MTL5575 (frequency/pulse input isolator) or MTL5582 (solenoid driver) for mixed-signal marshalling panels.

In plants where the control system is being migrated from a legacy Honeywell TDC 3000 or Foxboro I/A Series DCS to a modern platform such as Emerson DeltaV or Yokogawa CENTUM VP, the MTL5546Y serves as a stable analogue I/O interface layer, decoupling the field instrument rewiring schedule from the DCS cutover timeline. The MTL5000 Series end-of-line terminator and MTL5000 Series label carrier accessories complete the installation and support IEC 61511 documentation requirements for functional safety audits. For sites requiring PROFIBUS PA or Foundation Fieldbus segment power conditioning alongside conventional 4–20 mA loops, the MTL5000 Series segment protector modules can be installed in the same cabinet without mechanical conflict.

Retrofit Guidance FAQ

Q: Can the MTL5546Y replace a Zener barrier without rewiring field cables?
A: In most cases, yes. The MTL5546Y uses the same terminal designations as the MTL5000 Series backplane. Field cable polarity and loop resistance must be verified against the MTL5546Y datasheet, but no new cable runs are typically required when replacing a same-series isolating driver.

Q: Is the MTL5546Y compatible with HART field instruments?
A: Yes. The MTL5546Y is HART-transparent, meaning it passes the superimposed HART FSK signal without attenuation. Existing HART handheld communicators (such as the Emerson 475 Field Communicator) and HART multiplexers remain fully functional after the swap.

Q: What programming changes are needed on the DCS side?
A: None for the analogue signal path. The 4–20 mA output range and loop impedance characteristics of the MTL5546Y are equivalent to the replaced module. DCS I/O channel scaling, alarm limits, and engineering unit conversions do not require modification.

Q: Does the MTL5546Y require a dedicated IS earth connection?
A: No. Unlike Zener barriers, the MTL5546Y provides galvanic isolation and does not require a low-impedance IS earth. This simplifies cabinet design and eliminates earth-loop noise issues common in older Zener barrier installations.

Q: What are the physical space requirements?
A: The MTL5546Y occupies a single slot on the MTL5000 Series DIN-rail backplane. Its width is identical to other MTL5000 Series modules, so no cabinet re-layout or additional DIN-rail space is required for a like-for-like replacement.

Q: Can the MTL5546Y be installed in a Zone 1 hazardous area?
A: No. The MTL5546Y is a safe-area device (control room / marshalling cabinet side). It is certified to connect to field instruments located in Zone 0, Zone 1, or Zone 2 hazardous areas via its intrinsically safe field terminals.

Warranty Assurance

Every MTL MTL5546Y unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including loop continuity, isolation resistance, and HART transparency checks. Units are shipped in anti-static packaging with original manufacturer labelling and batch traceability documentation.

In the event of a confirmed defect within the warranty period, TOPNLMS provides direct replacement support with priority dispatch to minimise plant downtime. Our technical team is available to assist with pre-installation verification, loop resistance calculations, and compatibility confirmation for your specific DCS or safety system platform. Procurement teams can request test reports, certificates of conformity, and ATEX certification documents prior to order placement.

Stock is maintained in Xiamen, China, with standard lead times of 3–7 business days for international express shipment. Bulk orders for plant turnaround or capital project schedules are accommodated with advance reservation. Contact our team for volume pricing and project-specific delivery commitments.
