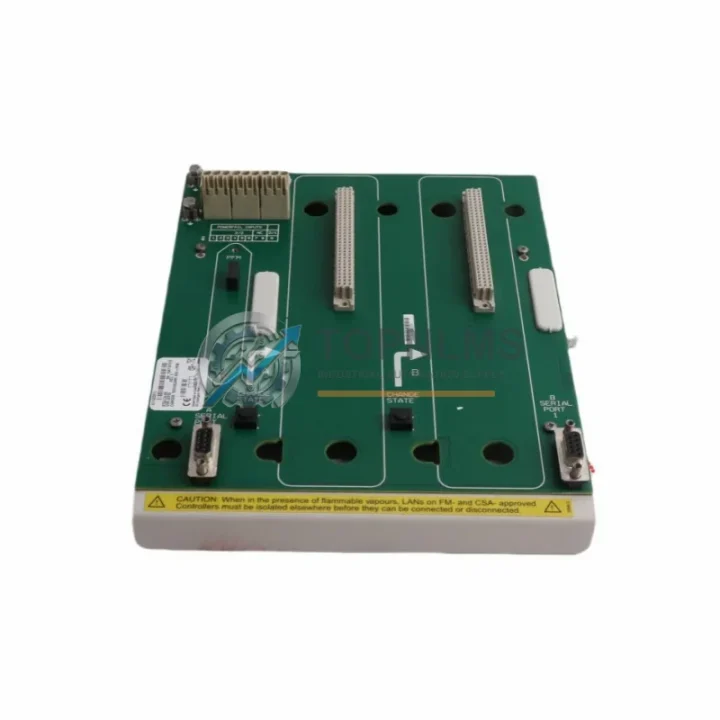

MTL 8751-CA-NS Original Industrial Spare MTL8000 Compatible

Product Overview

MTL 8751-CA-NS Original Industrial Spare MTL8000 Compatible: System Stability & Maintenance Value

The MTL 8751-CA-NS is a Non-Isolated Zener Barrier Carrier Module from MTL Instruments (Eaton MTL), designed for use within the MTL8000 Series intrinsic safety barrier system. In hazardous-area process plants, refinery control rooms, and chemical facility marshalling cabinets, this carrier module forms the structural backbone that houses and interconnects individual Zener barrier modules. Maintaining a verified original spare of the MTL 8751-CA-NS in your facility’s critical spares inventory is a direct investment in system uptime, personnel safety, and regulatory compliance.

When a carrier module fails or degrades — whether due to terminal wear, vibration fatigue, or age-related contact resistance — the entire barrier channel it supports becomes unreliable. Field engineers familiar with MTL8000 installations know that unplanned carrier replacement during a process shutdown can extend downtime by hours if the correct part is not immediately available. Stocking the MTL 8751-CA-NS as a pre-qualified, tested spare eliminates that risk entirely.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance programme for MTL8000-based intrinsic safety systems should treat the MTL 8751-CA-NS carrier as part of a broader inspection cycle rather than an isolated component. During scheduled turnarounds or annual safety instrumented system (SIS) reviews, maintenance teams should simultaneously inspect the MTL8706+ single-channel analogue input barrier and MTL8714+ discrete input barrier modules seated within the carrier, as contact wear on the carrier directly affects signal integrity across all hosted barriers.

Power distribution to the MTL8000 rail should be verified at the MTL8000-PS power supply module level — a degraded power supply can mask carrier-related faults and lead to misdiagnosis. Downstream, the MTL8723+ solenoid driver barrier modules used in ESD valve control loops are particularly sensitive to carrier contact resistance; any increase in loop resistance should trigger a carrier inspection before condemning the barrier itself.

In marshalling cabinets where MTL8000 carriers are installed alongside Phoenix Contact or Weidmüller terminal blocks, periodic torque checks on the terminal connections adjacent to the carrier rail are recommended. Loose terminals introduce ground path variability that can compromise the Zener barrier’s voltage-clamping function. Similarly, cable ferrules and field wiring terminations on the hazardous-area side should be inspected for insulation degradation, particularly in high-humidity or high-vibration environments.

For facilities running legacy DCS platforms such as Honeywell TDC 3000, Yokogawa CENTUM VP, or ABB System 800xA, the MTL8000 Series often serves as the intrinsic safety interface layer between field instruments and the I/O cards. In these architectures, maintaining a small buffer stock of MTL 8751-CA-NS carriers alongside compatible MTL8000 Series barrier modules and DIN rail end stops and locking clips ensures that any carrier swap can be completed within a single maintenance window without waiting for procurement lead times.

Where HART-transparent barriers such as the MTL8706+ or MTL8728+ are in use for smart field device communication, the carrier’s mechanical integrity is critical to maintaining the 4–20 mA signal path required for HART superimposition. A carrier with degraded contacts will introduce noise that disrupts HART communication and may trigger false diagnostics in the asset management system.

Strategic Replacement Solutions

The MTL 8751-CA-NS is a direct replacement for worn or damaged carriers within any existing MTL8000 Series installation. Because the MTL8000 platform has been in continuous production and field deployment for over two decades, many facilities are operating carriers that are approaching or have exceeded their recommended service life. Replacing an aged carrier with a new MTL 8751-CA-NS restores full contact integrity without requiring any modification to the existing barrier modules, field wiring, or DCS configuration — a true drop-in replacement that preserves system compatibility and avoids the engineering cost of a full barrier system upgrade.

For facilities considering migration from older MTL700 or MTL3000 Series barriers to the MTL8000 platform, the MTL 8751-CA-NS carrier is the correct starting point. The MTL8000 system’s modular architecture allows phased migration: carriers and backplanes can be installed during a planned shutdown, with barrier modules populated progressively as budget and maintenance windows allow. This approach minimises capital expenditure while steadily improving the intrinsic safety infrastructure.

All units supplied by TOPNLMS are sourced from authorised distribution channels, individually inspected, and dispatched with full documentation. Each MTL 8751-CA-NS is covered by a 12-month warranty from the date of shipment, providing procurement teams with the confidence needed to approve stock purchases without extended approval cycles.

Support FAQ

Q1: Is the MTL 8751-CA-NS compatible with all MTL8000 Series barrier modules?
Yes. The MTL 8751-CA-NS carrier is designed to accept the full range of MTL8000 Series Zener barrier modules. Verify the specific barrier module part number against the MTL8000 Series compatibility matrix to confirm slot configuration requirements before installation.

Q2: What is the recommended stock quantity for a facility with 200+ MTL8000 barrier channels?
Industry practice for critical spares in SIS applications recommends holding a minimum of 2–5% of installed carrier count as on-site spares, with additional buffer stock held at a regional distributor. For a 200-channel installation, a minimum of 4–10 MTL 8751-CA-NS carriers is a reasonable baseline, adjusted upward for facilities with extended procurement lead times or remote locations.

Q3: How is each unit tested before shipment?
All MTL 8751-CA-NS units supplied by TOPNLMS undergo visual inspection, mechanical contact verification, and continuity testing prior to dispatch. Units that do not meet original manufacturer specifications are rejected. A test report is available upon request for quality-critical procurement processes.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed promptly — contact TOPNLMS with the order reference and a description of the fault to initiate a replacement or refund.
