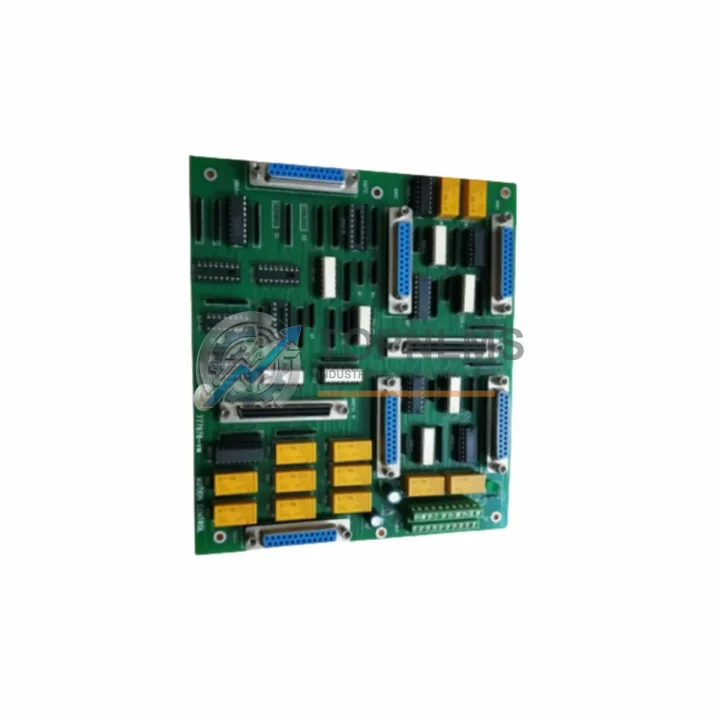

MOTION CONTROL 777978-VM Replacement for VM Series: Seamless Transition & Legacy System Compatibility

The MOTION CONTROL 777978-VM is a servo drive control card designed for VM-series motion control platforms. As legacy servo systems age and OEM support windows close, facilities running discontinued or end-of-life motion controllers face increasing pressure to source verified replacement modules without disrupting production. The 777978-VM addresses this challenge directly — offering a drop-in compatible control card that preserves existing wiring infrastructure, retains communication protocol compatibility, and fits within the original control cabinet footprint.

Whether your facility is replacing a failed unit, building a critical spare inventory, or executing a phased modernization of an aging servo drive system, the 777978-VM provides a reliable, tested, and warranted solution. Our engineering team has validated this module against common VM-series drive configurations, confirming compatibility across wiring harness pinouts, encoder feedback interfaces, and fieldbus communication layers. Procurement teams benefit from a single-source supplier with documented traceability, pre-shipment functional testing, and a 12-month replacement warranty.

Facilities migrating from older servo amplifier platforms — including discontinued analog command drives and early-generation digital servo controllers — will find the 777978-VM particularly well-suited for retrofit projects where re-engineering the control cabinet layout is not feasible. The module maintains the same physical mounting dimensions as the original VM-series control card, eliminating the need for bracket modifications or DIN rail adapter plates.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 777978-VM retrofit rarely involves the control card alone. In practice, migration projects require a coordinated approach across multiple drive and control system components. When replacing the VM-series control card, engineers commonly address the servo drive power stage simultaneously — particularly if the drive chassis shows signs of capacitor aging or IGBT degradation. Pairing the 777978-VM with a compatible VM-series servo drive power module ensures the entire drive assembly is restored to specification rather than introducing a new card into a degraded power stage.

For systems communicating over PROFIBUS-DP or CANopen fieldbus networks, the 777978-VM’s communication interface must be verified against the existing network master — typically a PLC or motion controller such as a Siemens S7-300 CPU module or a Beckhoff EtherCAT master controller. In multi-axis configurations, the fieldbus node address and baud rate settings stored in the original control card must be re-entered after replacement to avoid network conflicts.

Wiring integrity is equally critical. Aging servo motor feedback cables and resolver signal cables should be inspected and replaced if shielding is compromised — a degraded feedback signal will cause the new control card to fault immediately upon commissioning. Similarly, I/O terminal blocks and signal conditioning modules connected to the drive’s digital and analog I/O ports should be verified for correct voltage levels before powering up the replacement card.

In control cabinets where the VM-series drive shares a backplane or common DC bus with other axes, the DC bus capacitor bank module and brake resistor assembly should be inspected as part of the retrofit. Facilities running multi-axis gantry or coordinated motion systems will also want to verify that the motion controller axis configuration — whether hosted on a dedicated CNC controller board or a PLC motion module — correctly maps to the replacement drive after re-commissioning.

For sites requiring a programming interface during commissioning, a compatible drive parameter backup and restore tool or RS-232/USB programming cable is recommended to transfer parameter sets from a known-good drive or from archived commissioning records. This eliminates manual keypad entry errors and significantly reduces commissioning time on the shop floor.

Retrofit Guidance FAQ

Q: Do I need to rewire the servo motor connections when replacing the 777978-VM?
A: No. The 777978-VM is designed as a direct replacement for the VM-series control card. The motor power and feedback wiring connectors are pin-compatible with the original module. No rewiring of the motor cable, encoder cable, or resolver cable is required under normal replacement conditions.

Q: Will my existing PLC program need modification after installing the 777978-VM?
A: In most cases, no. If the replacement card is configured with the same fieldbus node address, baud rate, and drive parameters as the original, the PLC program will communicate with the drive identically. Parameter re-entry is required, but the control logic itself does not need to be modified.

Q: Is the 777978-VM compatible with both PROFIBUS-DP and analog ±10V command interfaces?
A: The 777978-VM supports the communication interfaces native to the VM-series platform. Confirm your specific drive variant’s communication option card configuration before ordering. Our technical team can assist with compatibility verification based on your drive nameplate data.

Q: Will the replacement card fit in the original control cabinet without modification?
A: Yes. The 777978-VM maintains the same physical dimensions and mounting interface as the original VM-series control card. No bracket modifications, DIN rail adapters, or cabinet cutout changes are required.

Q: What should I do if the drive faults immediately after installing the replacement card?
A: The most common cause is incorrect parameter settings or a feedback signal fault. Verify that all drive parameters have been correctly entered, check encoder and resolver cable shielding integrity, and confirm that the DC bus voltage is within specification before enabling the drive output.

Q: How long does commissioning typically take after a 777978-VM replacement?
A: With archived parameter records and a programming cable, commissioning typically takes 1–3 hours per axis. Without archived parameters, allow additional time for parameter optimization and motion tuning.

Warranty Assurance

Every MOTION CONTROL 777978-VM shipped from TOPNLMS undergoes pre-shipment functional testing to verify control card initialization, communication interface response, and I/O signal integrity. This testing protocol is designed to catch latent defects before the module reaches your facility, reducing the risk of a failed installation on a critical production line.

All units are covered by a 12-Month Replacement Warranty from the date of shipment. In the event of a verified module defect within the warranty period, TOPNLMS will arrange a replacement unit at no additional cost. Our after-sales response team is reachable via email and phone to support fault diagnosis, warranty claims, and technical commissioning questions.

Procurement teams sourcing critical spare parts for industrial automation systems can request a certificate of conformance, packing list, and shipment tracking documentation for each order. We maintain stock of the 777978-VM and can confirm lead times and availability upon inquiry. Standard shipping from our Xiamen warehouse supports both domestic express delivery and international freight forwarding to major industrial regions.
