MORI SEIKI M730BM-E77326A08-P10A Original CNC Display

Product Overview

MORI SEIKI M730BM-E77326A08-P10A Original CNC Display: System Stability & Industrial Spare Value

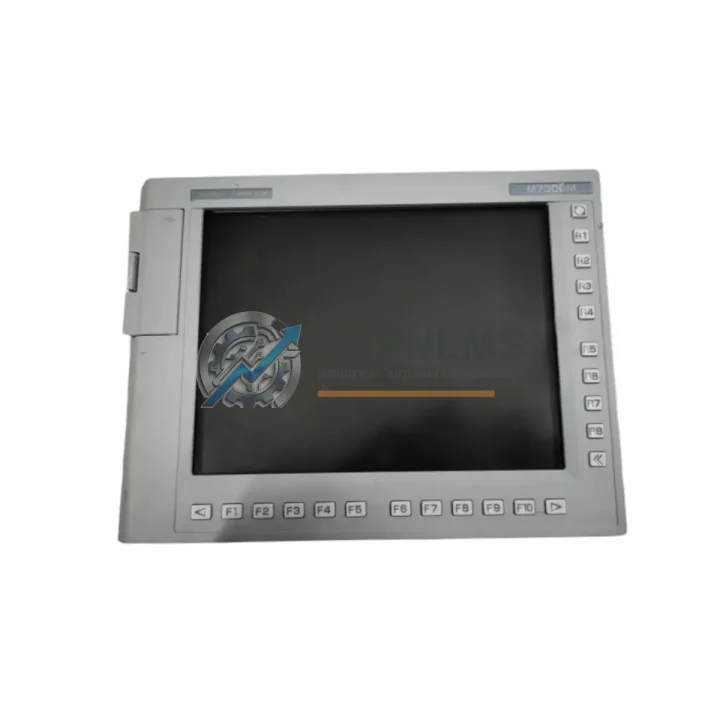

The MORI SEIKI M730BM-E77326A08-P10A-E1008052 is an original OEM operator display unit engineered for the M730BM CNC control platform — a Mitsubishi M70/M700-series based controller widely deployed across MORI SEIKI NL, NV, NH, and NMV series machining centers and turning centers. In high-throughput manufacturing environments, the operator display is the primary human-machine interface between the machine operator and the CNC kernel. A failed or degraded display unit directly translates to unplanned downtime, production loss, and extended maintenance windows. Stocking a verified original replacement is the single most effective measure to restore machine availability within hours rather than days.

This unit carries part references E77326A08 and P10A-E1008052, which correspond to the display assembly and PCB board revision used in mid-to-late generation M730BM-equipped machines. It is a direct drop-in replacement requiring no parameter re-initialization of the CNC kernel, preserving all existing tool offsets, work coordinate systems, and macro programs stored in the controller — a critical advantage during emergency field replacement where re-commissioning time must be minimized.

Critical Technical Specs Table

Preventive Maintenance Strategy

When a CNC operator display shows symptoms — screen flickering, partial image loss, unresponsive touch zones, or complete blackout — the root cause is rarely isolated to the display panel alone. A disciplined preventive maintenance inspection of the M730BM control cabinet should accompany any display replacement to prevent repeat failures and ensure long-term system stability.

Begin by inspecting the M730BM CNC main control unit itself. The display assembly communicates with the CNC kernel via internal ribbon cables and board connectors; oxidized or loose connectors on the FCU7-KB026 or FCU7-KB028 keyboard/display interface board are a common secondary cause of display anomalies. While the cabinet is open, check the 24VDC power supply module that feeds the control section — voltage ripple or marginal output is a frequent contributor to display instability and should be measured under load before closing the cabinet.

The M730BM servo amplifier units (MDS-C1 or MDS-D series, depending on machine vintage) share the same control cabinet and their cooling fans accumulate dust that can thermally stress the display electronics. Cleaning or replacing these fans during the same maintenance window is a cost-effective measure. Similarly, inspect the battery backup unit for the CNC memory — a failing battery can cause erratic display behavior during power cycling as the controller struggles to retain parameter data.

For machines with spindle drive integration, verify the spindle drive communication cable (typically RS-232C or PROFIBUS depending on configuration) is properly seated, as communication faults can manifest as display freeze or error screen loops. If the machine uses a remote I/O unit (RIO) for distributed I/O, confirm its status LEDs are normal — I/O communication errors are frequently misdiagnosed as display failures.

Maintenance planners should also consider stocking the M730BM operation panel interface unit and the machine operator panel (MOP) assembly as companion spares. These components share the same maintenance cycle as the display and are subject to similar wear from operator interaction and environmental exposure. Proactive procurement of these items alongside the display unit significantly reduces the risk of a second unplanned downtime event within the same maintenance period.

Finally, inspect all terminal blocks and I/O wiring harnesses within the control cabinet for signs of heat discoloration, insulation cracking, or loose terminations. Electrical noise introduced through degraded wiring is a known cause of intermittent display corruption on M730BM systems and is easily addressed during a planned maintenance window at negligible cost.

Strategic Replacement Solutions

The M730BM platform has been in production deployment for over a decade, and many facilities operating MORI SEIKI machining centers from the 2008–2018 vintage are now entering the phase where original display units reach end of service life. OEM new-production availability for these assemblies is increasingly constrained, making verified original surplus stock the most reliable sourcing path for maintenance teams that cannot accept the risk of compatibility-untested aftermarket alternatives.

The M730BM-E77326A08-P10A-E1008052 is a direct OEM replacement that eliminates the re-commissioning overhead associated with cross-series substitutions. Unlike generic LCD panel replacements that require custom mounting brackets, firmware flashing, or parameter mapping, this unit installs into the existing display housing using the original mounting points and connects via the factory cable harness — restoring full operator interface functionality including axis position display, program editing, alarm history, and tool management screens without any software intervention.

For facilities managing multiple MORI SEIKI machines across a production floor, a single-unit buffer stock strategy is recommended: one display unit per machine family (NL, NV, NH) covers the majority of failure scenarios and provides a mean time-to-repair of under two hours for display-related stoppages. This approach is substantially more cost-effective than emergency sourcing at premium freight rates during an active production stoppage.

All units shipped from TOPNLMS are inspected and function-tested prior to dispatch. Each unit is packaged in anti-static protective material with foam cushioning to prevent transit damage. Standard lead time is 3–7 business days for international destinations, with expedited options available on request.

Support FAQ

Q1: Is this display unit compatible with all M730BM-equipped MORI SEIKI machines?
This unit is specifically referenced to the M730BM control platform with board revision E77326A08 / P10A-E1008052. It is compatible with MORI SEIKI NL, NV, NH, and NMV series machines equipped with the M730BM controller. If you are unsure of your machine’s exact control configuration, please provide your machine serial number and we will confirm compatibility before shipment.

Q2: Will replacing the display unit erase CNC parameters or tool data?
No. The operator display is a peripheral output device; CNC parameters, tool offsets, work coordinates, and macro programs are stored in the main CNC control unit memory, not in the display assembly. A direct display replacement does not affect stored data, provided the CNC battery backup is functional at the time of replacement.

Q3: What testing is performed before shipment?
Each unit undergoes visual inspection for physical damage, connector integrity check, and functional power-on test to verify display output and backlight operation. Units that do not pass all inspection criteria are not shipped. A 12-month warranty covers defects in materials and workmanship from the date of receipt.

Q4: How should I manage spare display units in my maintenance inventory?
