Moore Industries 16416-1-2 Original Industrial Spare: Ensuring DCS System Stability and Uptime

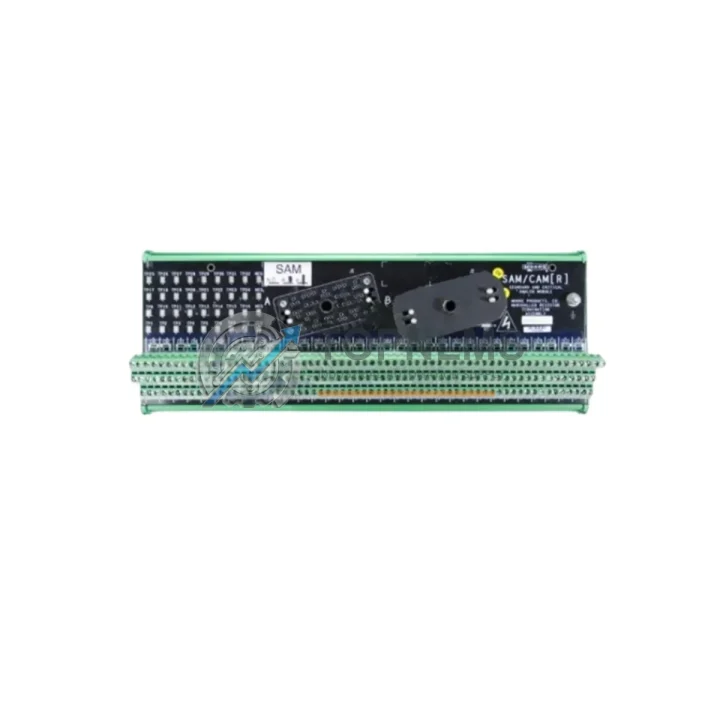

The Moore Industries 16416-1-2 Marshalled Termination Unit is a critical original spare component within the 16416 Series DCS field wiring infrastructure. In process industries where distributed control systems govern continuous operations — refining, chemical processing, power generation, and water treatment — the integrity of every termination point directly determines system reliability. A failed or degraded marshalling panel connection can cascade into signal loss, erroneous readings, or unplanned shutdowns. Stocking the 16416-1-2 as a verified original spare is a foundational element of any responsible preventive maintenance program.

This unit is engineered to serve as the structured interface between field instrument cables and the DCS I/O subsystem, providing organized, labeled, and electrically isolated termination points that simplify both commissioning and ongoing maintenance. Its original Moore Industries construction ensures full dimensional, electrical, and mechanical compatibility with existing 16416 Series marshalling cabinets, eliminating the integration risk associated with non-OEM alternatives.

Critical Technical Specs

Preventive Maintenance Strategy for 16416 Series Marshalling Systems

Marshalling termination units like the 16416-1-2 sit at the intersection of field instrumentation and the DCS controller layer. During scheduled shutdowns or turnaround maintenance, technicians inspecting the marshalling cabinet should treat the 16416-1-2 replacement as part of a broader system health review rather than an isolated swap.

When replacing or inspecting the 16416-1-2, it is best practice to simultaneously audit the field signal cables and multi-pair shielded cable assemblies routed into the marshalling panel — degraded insulation or corroded terminations at the cable end will negate the benefit of a new termination unit. Alongside this, the DCS I/O modules connected downstream (analog input modules, discrete input/output modules) should be checked for channel faults or calibration drift, as a failing termination unit often masks underlying I/O module degradation that only becomes apparent after the termination point is restored.

The power supply modules feeding the marshalling cabinet — typically 24 VDC bulk supplies or redundant PSU pairs — should be load-tested during the same maintenance window. An unstable supply voltage is a common root cause of intermittent signal errors that are incorrectly attributed to termination hardware. Similarly, signal isolators and signal conditioners (such as Moore Industries’ own SPA, SPT, or TRX series) installed in the same cabinet should be inspected for drift or output clamping, as these devices protect the DCS from field-side transients and degrade silently over time.

For cabinets handling thermocouple or RTD inputs, the temperature transmitters mounted on or near the marshalling panel should be re-ranged and verified against reference standards. If the plant operates legacy HART-enabled field devices, confirming that the HART multiplexer or HART interface modules in the cabinet are communicating correctly with all field devices is a valuable diagnostic step that can be performed concurrently with the termination unit replacement.

Facilities managing aging DCS infrastructure should also maintain stock of terminal blocks and fuse terminal assemblies used throughout the marshalling panel — these consumable components are frequently overlooked in spare parts planning yet are among the most common causes of intermittent field signal faults. Surge protection modules and transient voltage suppressors installed at the field cable entry points of the marshalling cabinet should be tested for clamping integrity, particularly in plants located in high-lightning-risk regions or those with significant variable-frequency drive (VFD) installations nearby. Finally, if the marshalling cabinet includes a local HMI panel or operator interface terminal for field-level diagnostics, verifying its communication link to the DCS during the maintenance window adds minimal time but provides significant diagnostic value for future fault isolation.

Strategic Replacement Solutions: Extending Legacy DCS System Life

Many process plants operating 16416 Series marshalling infrastructure are running DCS platforms that are 15–25 years into their operational life. Full DCS migration projects carry capital costs measured in millions and require extended engineering, validation, and commissioning timelines. The strategic alternative — and the approach adopted by the majority of maintenance-focused operations teams — is systematic original spare parts replacement to extend the productive life of the existing architecture.

The Moore Industries 16416-1-2 is a direct original replacement that requires no re-engineering of the marshalling cabinet, no re-termination of field cables beyond the standard reconnection procedure, and no DCS configuration changes. This means a trained instrument technician can complete the replacement during a planned maintenance window without specialist vendor support, dramatically reducing both downtime duration and maintenance cost per event.

Sourcing original Moore Industries components rather than third-party alternatives preserves the dimensional and electrical tolerances that the 16416 Series cabinet was designed around. Non-OEM termination units frequently introduce subtle incompatibilities — terminal pitch variations, different torque specifications, or altered signal path impedances — that create new fault modes rather than resolving existing ones. For plants operating under functional safety (SIL) requirements or process safety management (PSM) regulations, maintaining original-specification components is often a compliance requirement, not merely a preference.

Maintaining a minimum buffer stock of the 16416-1-2 — typically 2–4 units depending on the number of marshalling cabinets in service — eliminates the lead-time risk associated with emergency procurement. Industrial spare parts for legacy DCS components can carry lead times of 4–12 weeks when sourced through standard distribution channels. A pre-positioned inventory of verified original spares converts a potential multi-week unplanned outage into a same-shift corrective maintenance event.
