MOORE 16137-144 Replacement/Upgrade Solution for Apacs ACM: Seamless Hot-Standby Transition

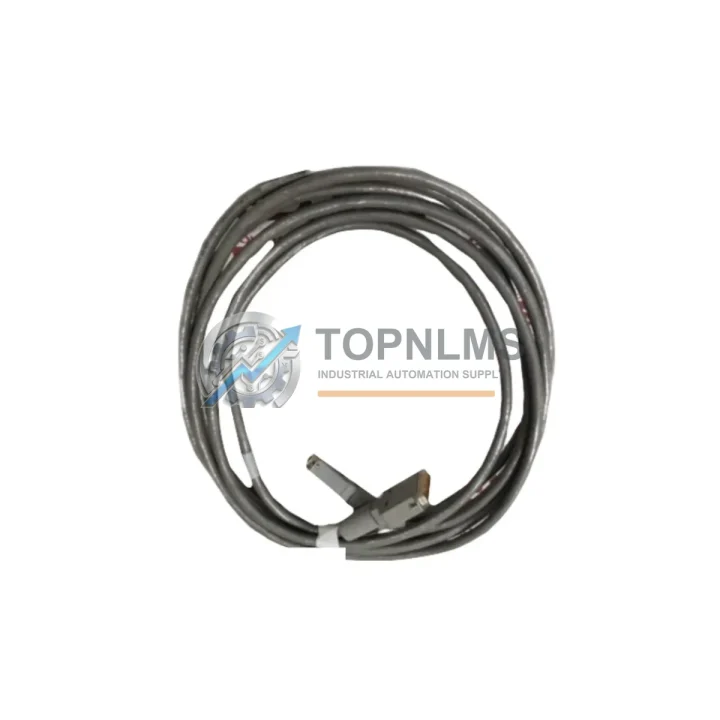

The MOORE 16137-144 is a dedicated redundancy cable engineered for the Apacs ACM (Advanced Control Module) DCS platform, enabling hot-standby controller synchronization and bumpless failover in mission-critical process control environments. As the Apacs ACM series approaches end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement cables that maintain system integrity without triggering costly re-engineering or extended shutdowns.

At TOPNLMS, we specialize in sourcing, testing, and supplying hard-to-find DCS components including the 16137-144 redundancy cable. Whether you are maintaining an existing Apacs ACM installation, executing a phased migration to a modern control platform, or building a strategic spare-parts inventory, this cable is a direct drop-in replacement that preserves your existing wiring topology, controller rack layout, and communication architecture.

The 16137-144 connects the primary and secondary ACM controllers within the same rack or across adjacent racks, carrying the high-speed synchronization signals required for hot-standby operation. Its proprietary connector keying and shielded cable construction ensure signal integrity in electrically noisy industrial environments typical of oil and gas, chemical processing, power generation, and water treatment facilities. Replacement of this cable requires no firmware changes, no re-configuration of the Apacs WorkStation software, and no modification to the I/O wiring on downstream Apacs I/O modules.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Apacs ACM hot-standby upgrade or migration involves more than a single cable. During the replacement process, engineers typically audit and refresh the surrounding control architecture to eliminate other aging components that could compromise system availability. The 16137-144 redundancy cable is most commonly deployed alongside the MOORE Apacs ACM controller module itself — the primary and secondary ACM units that this cable interconnects. If either controller is also approaching end-of-life, sourcing both the cable and the controller modules simultaneously reduces the number of maintenance windows required.

The ACM controllers communicate with field devices through Apacs I/O modules — including analog input, analog output, digital input, and digital output cards — mounted in the same or adjacent racks. These I/O modules connect to field instruments via Apacs terminal boards and marshalling panels, which provide the screw-terminal wiring interface between the DCS and field cables. Replacing the redundancy cable is an ideal time to inspect these terminal boards for corrosion or loose terminations that could introduce intermittent faults.

System-level communication between the ACM controllers and the operator workstation relies on the Apacs Plant Network (PN) communication module, which handles the proprietary MOORE plant network protocol. In sites where the plant network is being modernized, an Apacs PN-to-Ethernet gateway or OPC server interface card may be introduced in parallel with the redundancy cable replacement, allowing the legacy Apacs system to coexist with modern SCADA or historian platforms during a phased migration.

Power integrity is equally critical. The Apacs power supply module — typically a redundant 24 VDC or 120/240 VAC unit — should be verified for output stability before and after the cable swap, as voltage sag during the failover test can mask underlying PSU degradation. In sites running mixed-generation equipment, signal isolators and loop-powered barriers installed between the Apacs I/O cards and field transmitters help protect the DCS backplane from ground loops introduced during wiring modifications.

For sites executing a full migration from Apacs ACM to a modern DCS platform — such as Emerson DeltaV, Honeywell Experion, or ABB 800xA — the 16137-144 cable often remains in service during the parallel-run phase, maintaining hot-standby protection on the legacy system while the new controllers are commissioned. During this period, programming cables and configuration adapters compatible with the Apacs WorkStation software are essential for downloading updated control strategies to the ACM without disrupting live production. A portable engineering laptop pre-loaded with Apacs WorkStation and the site’s control database backup is the recommended tool for on-site commissioning and post-swap verification.

Retrofit Guidance FAQ

Q: Can I replace the 16137-144 without shutting down the process?
A: Yes, in a properly functioning hot-standby system, the secondary ACM controller takes over automatically when the primary is isolated. The cable can be replaced during a planned failover with no process interruption, provided the secondary controller has been verified healthy before the swap.

Q: Will the new cable require any changes to the Apacs WorkStation configuration?
A: No. The 16137-144 is a passive hardware link. The redundancy configuration parameters in Apacs WorkStation — including failover mode, synchronization interval, and controller node addresses — remain unchanged.

Q: Is the 16137-144 compatible with all ACM firmware versions?
A: Yes. The cable interface is hardware-defined and is not affected by ACM firmware revisions. It is compatible across all known Apacs ACM firmware generations.

Q: What if my rack uses a different cable length variant (e.g., 16137-143 or 16137-145)?
A: The 16137-144 is a specific length variant. If your installation requires a different cable run distance, please contact us with your rack layout dimensions and we will confirm the correct variant or advise on a compatible alternative.

Q: Can this cable be used in non-redundant ACM installations?
A: No. The 16137-144 is exclusively for hot-standby redundant ACM configurations. Single-controller racks do not have the redundancy port required for this cable.

Q: What communication protocol does the redundancy link use?
A: The ACM redundancy link uses MOORE’s proprietary high-speed synchronization protocol. It is not compatible with standard Ethernet, RS-485, or Profibus interfaces and cannot be substituted with generic cables.

Q: How do I verify the cable is functioning correctly after installation?
A: Use the Apacs WorkStation diagnostics screen to confirm that the secondary ACM shows “Synchronized” status. Perform a manual failover test and verify bumpless transfer before returning the system to automatic redundancy mode.

Warranty Assurance

Every MOORE 16137-144 redundancy cable supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination of connector pins and cable shielding, continuity and insulation resistance testing, and connector retention force verification to ensure reliable mating with ACM controller ports.

If a unit exhibits any defect in materials or workmanship within the warranty period, TOPNLMS will arrange a replacement shipment at no additional cost. Our after-sales response target is within 24 hours of a warranty claim submission. For time-critical plant situations, we maintain a priority dispatch channel — contact us directly at [email protected] or +86 18359293191 to discuss expedited replacement options.

Stock is held in our Xiamen warehouse and is available for immediate shipment. Standard international delivery is via DHL, FedEx, or UPS Express, with typical transit times of 3–7 business days to most destinations. Customs documentation, including commercial invoice, packing list, and certificate of origin, is provided with every shipment to facilitate smooth import clearance.

For procurement teams requiring additional assurance, we can provide pre-shipment inspection reports and batch traceability documentation upon request. Volume orders and blanket purchase agreements for ongoing spare-parts programs are welcome — please contact our sales team to discuss pricing and lead-time commitments.
