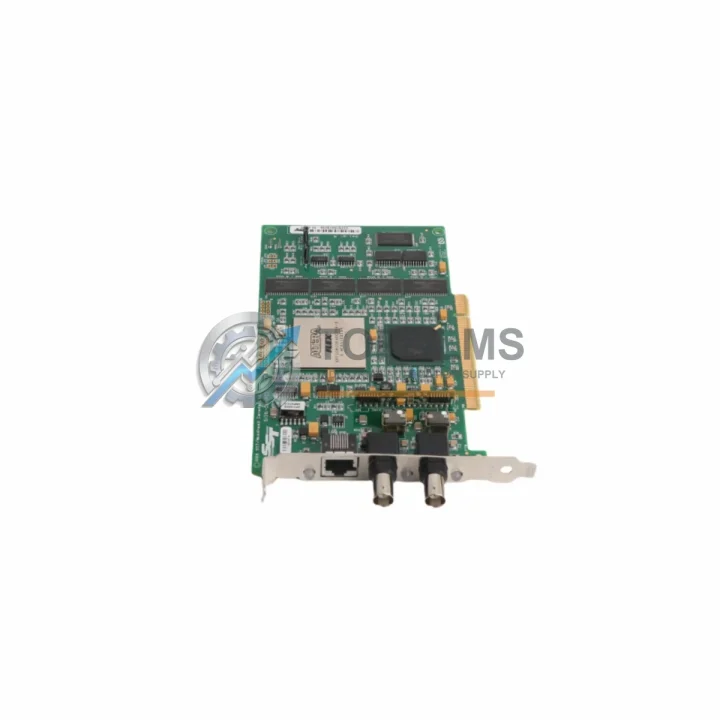

MOLEX 5136-CN-PCI Ruggedized DeviceNet Interface Module for Harsh Environments

The MOLEX 5136-CN-PCI is a high-performance SST DeviceNet PCI interface card engineered for industrial PC-based control systems operating in demanding, harsh-environment applications. Designed to deliver reliable DeviceNet fieldbus communication in conditions characterized by elevated temperatures, high humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI), this card is a proven backbone component for plant-floor automation architectures across heavy industry sectors.

As a scanner/master node on a DeviceNet network, the 5136-CN-PCI enables a host industrial PC to communicate with up to 64 DeviceNet slave devices — including variable frequency drives (VFDs), distributed I/O blocks, smart sensors, motor starters, and safety relay modules — over a single shielded trunk cable. Its onboard microprocessor offloads network management from the host CPU, ensuring deterministic scan cycle performance even under high network load or adverse electrical conditions.

For maintenance engineers managing aging PC-based control systems in continuous production environments, the 5136-CN-PCI represents a critical spare part. A failed communication card can bring an entire DeviceNet segment offline, halting production and triggering costly unplanned downtime. Keeping a verified, tested replacement unit in your spare parts inventory is a fundamental element of any preventive maintenance strategy for DeviceNet-based control architectures.

Rugged Specifications Table

Comprehensive Protection Solutions

In harsh industrial environments, the 5136-CN-PCI does not operate in isolation. Its reliability is directly tied to the integrity of the surrounding control system architecture. When inspecting or replacing this card, experienced maintenance teams simultaneously audit the broader DeviceNet segment and associated control cabinet components to prevent cascading failures.

The DeviceNet trunk cable and drop cables (typically Belden 3082A or equivalent shielded cable) should be inspected for insulation damage, connector corrosion, and termination resistance — a degraded cable is the most common cause of intermittent DeviceNet communication faults that are mistakenly attributed to the interface card itself. Verify that both ends of the trunk are terminated with 121-ohm terminating resistors; missing or failed terminators cause reflections that corrupt network data at higher baud rates.

The DeviceNet power supply — typically a 24 VDC regulated supply dedicated to the network auxiliary power rail — must be verified for voltage stability and current capacity. MOLEX and third-party DeviceNet power taps distribute this auxiliary power to node transceivers; a failing power tap or undersized supply will cause nodes to drop off the network intermittently, symptoms that closely mimic a faulty scanner card.

Downstream slave devices on the DeviceNet segment — such as Allen-Bradley 1734 POINT I/O DeviceNet adapters, Rockwell 1756-DNB DeviceNet bridge modules, or Siemens ET 200S DeviceNet interface modules — should be checked for firmware version compatibility and node address conflicts whenever the host scanner card is replaced. Node address duplication is a common commissioning error after card swap-out.

Within the industrial PC enclosure itself, the PC power supply unit (PSU) and motherboard PCI slot integrity are critical. A PSU delivering unstable +5V or +12V rails will cause PCI card initialization failures that appear as driver errors. If the host PC is a legacy system, consider maintaining a spare industrial-grade PSU (e.g., Advantech or IEI brand) alongside the 5136-CN-PCI card.

For sites running mixed fieldbus architectures, the 5136-CN-PCI is often installed alongside MOLEX SST-PFB-PCI (PROFIBUS PCI cards) or 5136-DN-PCI (earlier DeviceNet generation) cards in the same industrial PC chassis. Maintaining cross-reference documentation between card generations prevents incorrect substitution during emergency maintenance.

Finally, the SST Configuration Software (SST-DN-CFG) and associated EDS (Electronic Data Sheet) files for all connected slave devices must be archived and version-controlled. A replacement 5136-CN-PCI card requires re-commissioning with the correct network configuration file; without it, the scanner cannot map I/O data correctly to the host application.

Application in Critical Infrastructure

The MOLEX 5136-CN-PCI is deployed across a broad spectrum of critical industrial infrastructure where communication reliability is non-negotiable:

Oil & Gas Processing: In upstream and midstream facilities, DeviceNet networks connect valve actuators, pressure transmitters, and emergency shutdown (ESD) relay modules to supervisory control systems. The 5136-CN-PCI serves as the host interface in SCADA workstations and DCS gateway PCs, where network interruption can trigger safety system activation or production loss measured in thousands of dollars per hour.

Mining & Mineral Processing: Conveyor control systems, crusher drives, and slurry pump stations in mining operations rely on DeviceNet for distributed I/O communication. The card’s tolerance for vibration-prone industrial PC environments and its ability to maintain communication at 125 kbps over extended cable runs (up to 500 meters) make it well-suited for large-footprint mining installations.

Power Generation & Utilities: Auxiliary control systems in thermal power plants and hydroelectric facilities use DeviceNet to manage cooling water pumps, fuel handling conveyors, and auxiliary switchgear. The 5136-CN-PCI provides the host interface for condition monitoring PCs that aggregate device-level diagnostics from smart motor starters and VFDs.

Water & Wastewater Treatment: Municipal water treatment facilities deploy DeviceNet for pump station automation and chemical dosing control. The card’s compatibility with legacy PC-based SCADA platforms — many of which run Windows XP or Windows 7 on industrial PCs — makes it an essential long-term spare for systems that cannot be easily migrated to newer fieldbus technologies.

Metallurgy & Steel Production: Rolling mill control systems and furnace automation in steel plants operate in extreme thermal and EMI environments. The 5136-CN-PCI’s robust PCI interface and onboard network processor provide the communication stability required for real-time process control in these high-interference settings.
