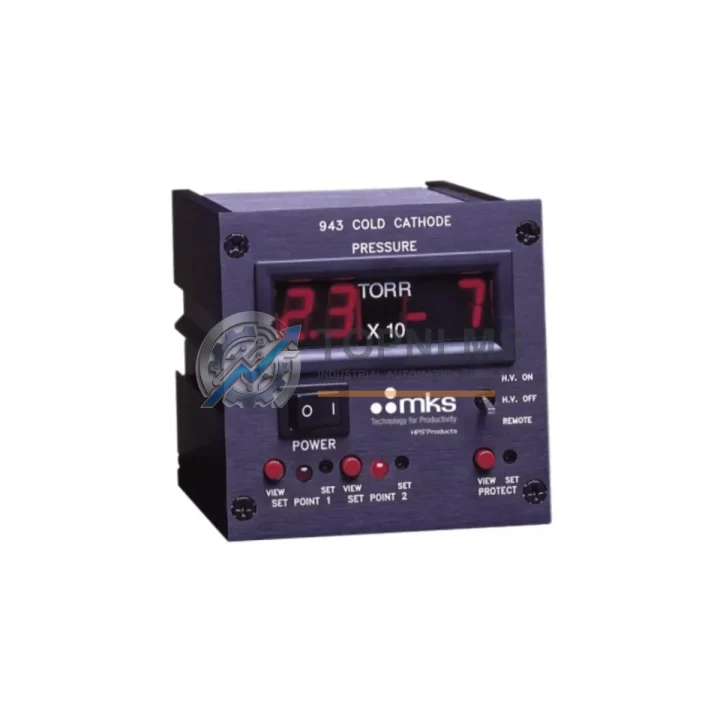

MLS 943-A-120V60-TR-PC Ruggedized Vacuum Gauge Module

Product Overview

MLS 943-A-120V60-TR-PC Ruggedized Vacuum Gauge Module for Harsh Environments

The MLS 943-A-120V60-TR-PC is a cold cathode ionization vacuum gauge from MLS’s proven CPA-1 Series, engineered for continuous, reliable vacuum measurement in the most demanding industrial environments. Designed to operate at 120V/60Hz with a TR-PC interface configuration, this gauge delivers stable, accurate readings across a wide vacuum range — making it an essential instrument for process engineers, maintenance teams, and procurement specialists who cannot afford measurement failures in critical production systems.

In high-stakes industrial settings — including semiconductor fabrication, metallurgical furnaces, vacuum heat treatment, chemical vapor deposition (CVD) lines, and electron beam processing — vacuum integrity is a non-negotiable safety and quality parameter. The 943-A-120V60-TR-PC is built to maintain measurement accuracy even under conditions of elevated ambient temperature, mechanical vibration, electromagnetic interference (EMI), and particulate contamination. Its cold cathode ionization sensing principle eliminates the fragile hot filament found in conventional Bayard-Alpert gauges, dramatically extending service life in dusty, corrosive, or thermally stressed environments.

For facilities operating continuous production lines — where unplanned downtime translates directly to lost revenue and safety risk — the 943-A-120V60-TR-PC provides the measurement stability that process control systems depend on. It integrates cleanly with PLC-based control architectures, DCS platforms, and SCADA systems, delivering analog or digital vacuum signals that feed directly into interlock logic, alarm management, and process trending functions.

Rugged Specifications Table

Comprehensive Protection Solutions

The 943-A-120V60-TR-PC does not operate in isolation — it is one component in a layered industrial protection and control architecture. In a typical vacuum process system, this gauge works alongside a MLS CPA-1 Series vacuum gauge controller that processes the raw ionization signal and provides relay outputs for interlock activation. The controller’s relay contacts connect directly to a Siemens S7-1200 or S7-300 PLC digital input module, which executes the interlock logic — shutting down pumping systems, closing gate valves, or triggering alarms when vacuum levels deviate from setpoints.

On the power supply side, the 120V/60Hz input is typically conditioned through an industrial-grade DIN-rail power supply (such as a Phoenix Contact QUINT or MEAN WELL SDR series unit) to ensure clean, regulated voltage free from line transients that could corrupt gauge readings or damage sensitive ionization electronics. A surge protection device (SPD) installed upstream of the gauge power feed provides additional protection against lightning-induced transients and switching surges common in heavy industrial facilities.

For facilities running multi-zone vacuum systems, the 943-A-120V60-TR-PC is often deployed in parallel with Pirani thermal conductivity gauges (such as MLS or compatible Pfeiffer TPR series units) to cover the rough vacuum range, creating a complete vacuum measurement chain from atmospheric pressure down to ultra-high vacuum. The combined signal outputs feed into a multi-channel vacuum gauge display unit or directly into a Siemens ET 200SP distributed I/O module for centralized SCADA monitoring.

In control cabinet installations, the gauge’s TR-PC interface cable routes through EMI-shielded cable conduit and terminates on Phoenix Contact or Weidmüller terminal blocks, ensuring clean signal transmission even in cabinets housing variable frequency drives (VFDs) or high-current motor starters that generate significant electromagnetic noise. A Murr Elektronik or Wago signal isolator module may be inserted in the signal path to provide galvanic isolation between the gauge output and the PLC analog input card, eliminating ground loop interference that is a common cause of erratic vacuum readings in large industrial installations.

Application in Critical Infrastructure

The MLS 943-A-120V60-TR-PC finds its most demanding applications in critical infrastructure sectors where vacuum measurement directly impacts both product quality and personnel safety.

In metallurgical and vacuum heat treatment facilities, this gauge monitors furnace chamber vacuum during hardening, annealing, sintering, and brazing cycles. A vacuum measurement failure in these processes can result in oxidized workpieces, scrapped batches, or — in the case of reactive metals like titanium — a fire or explosion hazard. The cold cathode design’s immunity to filament burnout makes it far more reliable than thermionic gauges in furnace environments where thermal cycling and outgassing are constant stresses.

In semiconductor and flat panel display manufacturing, the 943-A-120V60-TR-PC supports process chamber vacuum monitoring in PVD (physical vapor deposition), CVD, and ion implantation equipment. These processes require vacuum levels in the high-to-ultra-high vacuum range, and any measurement drift or gauge failure can result in contaminated wafers, yield loss, and costly chamber venting cycles. The gauge’s long service life and stable cold cathode operation reduce the frequency of scheduled maintenance interventions on production-critical equipment.

In oil and gas processing and petrochemical plants, vacuum systems are used in distillation columns, degassing units, and solvent recovery systems. The 943-A-120V60-TR-PC’s robust construction and compatibility with standard industrial control architectures make it suitable for integration into safety instrumented systems (SIS) and emergency shutdown (ESD) logic, where measurement reliability is a regulatory requirement under IEC 61511 functional safety standards.

In power generation and electrical infrastructure — including transformer manufacturing and high-voltage switchgear assembly — vacuum impregnation and drying processes rely on accurate vacuum measurement to ensure insulation quality. Measurement errors at this stage can lead to premature insulation failure in service, with potentially catastrophic consequences for grid reliability.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the unit fails to perform within its specified vacuum measurement range or exhibits electrical faults not caused by misuse, overvoltage, or physical damage, TOPNLMS will arrange replacement or repair at no additional cost. To initiate a claim, contact [email protected] with your order number and a description of the fault. Our technical team will respond within one business day.

Q2: How is each unit tested before shipment?
Every MLS 943-A-120V60-TR-PC unit in our inventory undergoes pre-shipment functional verification, including power-on testing, signal output verification, and visual inspection for physical integrity. Units that do not pass our outgoing quality check are quarantined and not dispatched. A test record is available upon request for customers with quality management system (QMS) requirements.

Q3: Is the 943-A-120V60-TR-PC compatible with my existing MLS CPA-1 Series controller or third-party vacuum gauge controllers?
Yes. The 943-A-120V60-TR-PC is designed for use within the MLS CPA-1 Series ecosystem and is compatible with standard CPA-1 Series gauge controllers. For integration with third-party controllers, the TR-PC interface follows industry-standard cold cathode gauge signal conventions. We recommend confirming connector pinout and signal range compatibility with your controller’s datasheet before installation. Our technical team can assist with compatibility verification — contact us before ordering if you have specific integration requirements.

Q4: Can you guarantee long-term supply and spare parts availability for this model?
TOPNLMS maintains dedicated stock of MLS CPA-1 Series components, including the 943-A-120V60-TR-PC, to support customers with ongoing maintenance and spare parts programs. For facilities that require guaranteed supply continuity — such as those operating under planned maintenance schedules or long-term service contracts — we offer reserved stock arrangements and priority fulfillment agreements. Contact our sales team to discuss your annual consumption requirements and we will structure a supply plan accordingly.
