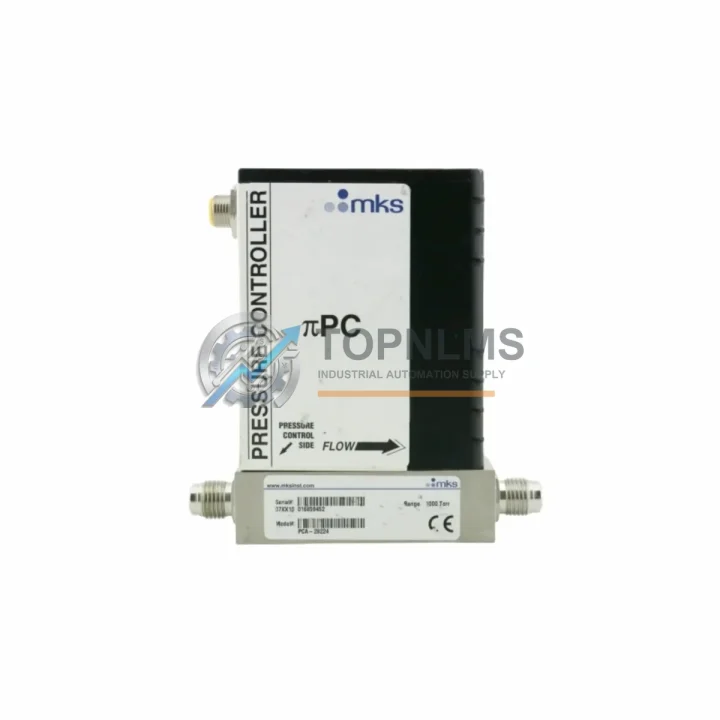

MKS PCA-28224-LF-K Ruggedized Pressure Controller Module

Product Overview

MKS PCA-28224-LF-K Ruggedized Pressure Controller Module: Industrial Resilience for Harsh Environments

The MKS PCA-28224-LF-K is a high-precision, closed-loop pressure controller from MKS Instruments’ SEC-4400MC Series, engineered to deliver unwavering process stability in the most demanding industrial and semiconductor manufacturing environments. Designed for continuous-duty operation under conditions of elevated temperature, humidity, vibration, electromagnetic interference, and particulate contamination, this module represents a benchmark in ruggedized pressure management for critical infrastructure applications.

Whether deployed in a cleanroom gas delivery system, a petrochemical process line, a power generation facility, or a heavy industrial control cabinet, the PCA-28224-LF-K maintains closed-loop pressure regulation with exceptional repeatability and response speed. Its robust construction and sealed signal path make it resistant to the corrosive atmospheres and mechanical stresses common in oil and gas, metallurgy, water treatment, and mining operations — environments where component failure is not an option.

The module integrates seamlessly into existing PLC and DCS architectures. When paired with a Siemens S7-300 or S7-400 PLC analog output module, or connected via a PROFIBUS DP or HART communication interface, the PCA-28224-LF-K delivers real-time pressure feedback with minimal latency. Its analog I/O compatibility ensures straightforward integration with standard 4–20 mA control loops, making it a drop-in replacement or upgrade for legacy pressure control assemblies without requiring extensive rewiring or software reconfiguration.

In high-stakes process environments, the PCA-28224-LF-K works in concert with upstream and downstream components to form a complete, fault-tolerant control chain. Mass flow controllers such as the MKS SEC-4400MC series siblings, along with pressure transducers, solenoid valve drivers, and safety interlock relays, rely on the stable pressure reference this module provides. When integrated with a Siemens ET 200SP distributed I/O station or an Allen-Bradley 1756 ControlLogix I/O chassis, the module’s analog signal remains clean and accurate even in the presence of high-frequency EMI from variable frequency drives (VFDs) and motor starters operating in the same control cabinet.

For facilities operating continuous production lines — such as flat panel display fabs, pharmaceutical batch reactors, or chemical vapor deposition (CVD) systems — unplanned pressure excursions can trigger costly shutdowns or product loss. The PCA-28224-LF-K’s closed-loop architecture actively compensates for upstream supply pressure fluctuations, downstream load changes, and temperature-induced drift, ensuring that downstream process chambers, reactors, or distribution manifolds receive a consistently regulated pressure signal. This capability is especially critical when the module feeds into a multi-zone gas panel where individual zone controllers, check valves, and pressure relief assemblies must all operate within tightly defined setpoint windows.

The module’s internal electronics are protected against voltage transients and ground loop interference, a common challenge in industrial environments where long cable runs connect field instruments to centralized control rooms. When used alongside shielded instrumentation cable, a Weidmüller or Phoenix Contact terminal block assembly, and a properly grounded DIN rail enclosure, the PCA-28224-LF-K maintains signal integrity across distances exceeding 100 meters. Its compatibility with standard 24 VDC industrial power supplies — including Siemens SITOP PSU100S and Phoenix Contact QUINT series — ensures reliable power delivery without requiring dedicated conditioning hardware.

As a spare part and replacement component, the PCA-28224-LF-K offers significant procurement value. MKS Instruments’ SEC-4400MC platform has been widely deployed across semiconductor OEM equipment from Applied Materials, Lam Research, and Tokyo Electron, meaning that maintenance engineers at fabs and process plants worldwide are already familiar with its installation and calibration procedures. Stocking this module as a critical spare reduces mean time to repair (MTTR) and eliminates the extended lead times associated with factory-direct procurement during equipment downtime events.

Rugged Specifications Table

Comprehensive Protection Solutions

The PCA-28224-LF-K is most effective when deployed as part of a coordinated protection and control architecture. In a typical gas delivery panel for a CVD or etch tool, it operates alongside the MKS 1179A mass flow controller to regulate both flow rate and downstream pressure simultaneously, preventing pressure spikes that could damage sensitive process chambers. The module’s analog output connects directly to a Siemens SM 331 analog input module within an S7-300 rack, where the PLC executes the supervisory control loop and logs pressure trends for predictive maintenance analysis.

For facilities using distributed control architectures, the PCA-28224-LF-K integrates with Emerson DeltaV S-series I/O cards via standard 4–20 mA wiring, enabling centralized monitoring from a DCS operator station without additional signal conditioning. In control cabinets subject to high EMI from co-located Danfoss FC-302 variable frequency drives or Schneider Electric Altivar ATV320 inverters, the module’s shielded electronics maintain setpoint accuracy without requiring additional EMI filters on the signal lines.

Safety-critical installations benefit from pairing the PCA-28224-LF-K with a Pilz PNOZ X safety relay or a Siemens SIRIUS 3SK1 safety module, which monitors the pressure controller’s output for out-of-range conditions and triggers a safe-state shutdown if pressure exceeds defined limits. Communication to the plant historian or SCADA system is handled via a Moxa NPort 5150 serial device server or a Wago 750-352 PROFIBUS DP coupler, ensuring that pressure data is continuously archived for regulatory compliance and process optimization. Terminal connections are made through Phoenix Contact PTFIX distribution terminal blocks, which provide reliable, vibration-resistant termination in high-shock environments.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the PCA-28224-LF-K is deployed in wellhead instrumentation panels and gas compression skids where precise pressure control is essential for safe hydrocarbon handling. Its resistance to hydrogen sulfide (H₂S) atmospheres — when installed in appropriately rated enclosures — and its tolerance for wide ambient temperature swings make it suitable for both onshore and offshore platform applications.

In power generation plants, including coal-fired, gas turbine, and nuclear facilities, the module controls cooling water pressure in heat exchanger circuits and regulates instrument air supply to pneumatic valve actuators. Its closed-loop response speed ensures that pressure transients caused by sudden load changes or valve actuation events are damped before they propagate to sensitive downstream instrumentation.

In water treatment and desalination plants, the PCA-28224-LF-K manages feed pressure to reverse osmosis membrane arrays, where consistent inlet pressure is critical for membrane longevity and permeate quality. Its 4–20 mA interface allows direct integration with existing SCADA systems from Wonderware, Ignition, or Siemens WinCC, enabling operators to monitor and adjust pressure setpoints remotely without field intervention.

In metallurgy and heavy industry — including steel mills, aluminum smelters, and cement plants — the module controls protective gas pressure in furnace atmospheres and regulates hydraulic pressure in rolling mill control systems. Its vibration-resistant construction withstands the continuous mechanical shock generated by heavy machinery, and its sealed electronics resist the fine metallic dust and carbon particulates that are endemic to these environments.

In mining operations, the PCA-28224-LF-K is used in ventilation control systems and slurry pipeline pressure management, where reliable pressure regulation directly impacts worker safety and process efficiency. Its compatibility with intrinsically safe barriers and Zener diode isolators allows deployment in Zone 1 and Zone 2 hazardous areas when installed with appropriate Ex-rated enclosures and cable glands.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
The PCA-28224-LF-K is covered by a 12-month warranty from the date of shipment. This warranty covers all manufacturing defects, component failures, and functional deviations from the published MKS Instruments specification. If the unit fails within the warranty period under normal operating conditions, TOPNLMS will arrange for repair, replacement, or full refund at no additional cost to the buyer. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
Every PCA-28224-LF-K unit undergoes a multi-point functional verification before dispatch. Testing includes power-on self-test, closed-loop response verification at multiple setpoints, analog I/O signal accuracy check (4–20 mA), and visual inspection for physical damage or connector corrosion. Units that do not meet MKS Instruments’ original performance specifications are quarantined and not shipped. A test report is available upon request for critical procurement applications.

Q3: Is the PCA-28224-LF-K compatible with my existing PLC or DCS system?
Yes. The PCA-28224-LF-K uses a standard 4–20 mA analog interface, which is universally compatible with analog input/output modules from Siemens, Allen-Bradley, Emerson, Honeywell, Yokogawa, ABB, and all other major PLC and DCS platforms. No proprietary communication protocol or driver is required. For HART-enabled systems, the module’s HART signal layer allows simultaneous digital communication over the same two-wire loop, enabling remote configuration and diagnostics without additional wiring.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for this model?
Yes. TOPNLMS maintains a dedicated inventory of MKS Instruments SEC-4400MC series components, including the PCA-28224-LF-K, to support customers with long-lifecycle equipment that may no longer be available through standard distribution channels. We source from verified surplus and OEM channels, and our procurement team actively monitors global stock levels to ensure continuity of supply. For customers requiring guaranteed availability over a multi-year maintenance contract, we offer reserved stock agreements — contact [email protected] to discuss your requirements.
