Mitsubishi FX3U-485ADP-MB Replacement for FX3U Series

Product Overview

Mitsubishi FX3U-485ADP-MB Replacement & Upgrade Solution for FX3U Series: Seamless Transition from Legacy RS-485 Systems

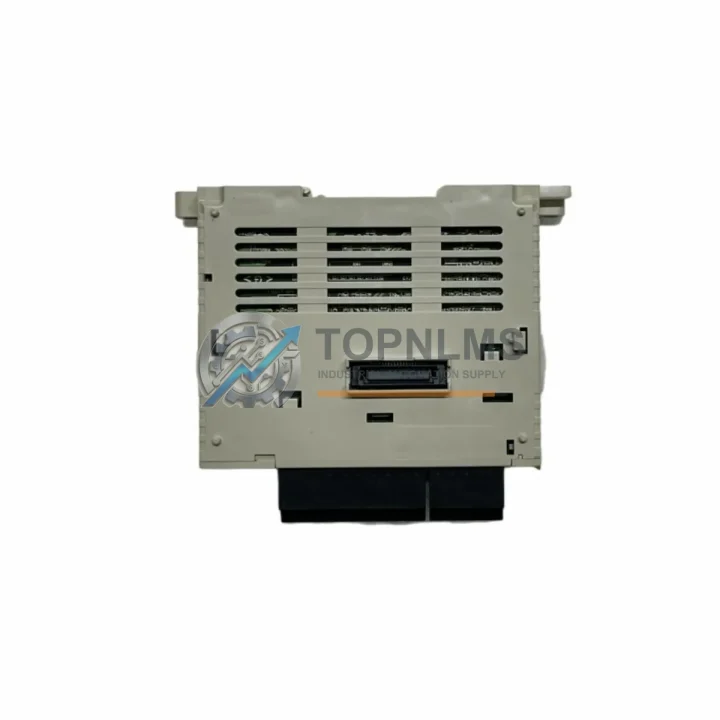

The Mitsubishi FX3U-485ADP-MB is a dedicated RS-485 Modbus RTU communication adapter designed for the MELSEC FX3U and FX3UC programmable logic controller series. As industrial facilities increasingly face the challenge of maintaining aging FX2N, FX2NC, or early FX3U-based control systems, sourcing a reliable, drop-in replacement for the FX3U-485ADP-MB has become a critical procurement priority. TOPNLMS stocks verified units ready for immediate dispatch, backed by a 12-month warranty and pre-shipment functional testing.

Whether your plant is running a legacy Modbus RTU network connecting variable frequency drives, servo amplifiers, temperature controllers, or third-party HMI panels, the FX3U-485ADP-MB provides the RS-485 physical layer interface that the FX3U CPU requires to sustain those communication links without reprogramming the GX Works2 or GX Developer project. This makes it the preferred replacement path for maintenance engineers who need to restore communication capability with zero changes to the existing ladder logic or network topology.

Compatibility Comparison Table

Seamless Upgrade Solutions: Migration Path and Related Components

A successful FX3U-485ADP-MB replacement rarely happens in isolation. In most retrofit and modernization projects, the communication adapter is just one element of a broader system restoration or upgrade. Understanding the surrounding components helps maintenance teams plan procurement efficiently and avoid secondary failures after the primary repair.

When the FX3U-485ADP-MB is installed on an FX3U-32MR/ES or FX3U-64MT/ES CPU unit, the adapter slots directly into the left-side ADP port without tools. If the CPU itself is also aging or showing intermittent faults, it is advisable to evaluate the CPU module concurrently rather than discovering a secondary failure after the communication adapter has been replaced. Similarly, if the system uses an FX3U-ENET Ethernet adapter occupying the second ADP port, verify that the port assignment in the GX Works2 parameter settings correctly maps CH1 to the 485ADP-MB and CH2 to the ENET adapter.

Many FX3U-based Modbus RTU networks also include an FX3U-4AD analog input module or FX3U-4DA analog output module connected via the right-side extension bus. These modules communicate over the internal bus rather than RS-485, so they are unaffected by the communication adapter replacement. However, if the system also uses an FX3U-232ADP-MB for RS-232C Modbus communication to a barcode reader, RFID controller, or weighing terminal, that adapter should be inspected at the same time to rule out a systemic communication board failure caused by power surge or environmental contamination.

For facilities migrating from an older FX2N platform to FX3U, the FX3U-485ADP-MB is a key enabler because it allows the existing RS-485 field wiring and Modbus slave device configuration to be retained without modification. The terminal block pinout for 2-wire RS-485 (SDA+, SDB−, SG) is identical in function to the FX2N-485ADP, meaning field cables can be reconnected directly. The primary programming change required is updating the communication parameter settings in GX Works2 to enable the Modbus RTU predefined protocol, which replaces the custom RS instruction sequences used in FX2N projects.

In control cabinet environments where DIN rail space is constrained, the compact form factor of the FX3U-485ADP-MB — which mounts flush against the CPU left face — avoids the need for additional rail space compared to special function modules. If the cabinet also houses an FX3U-1PSU-5V auxiliary power supply for extended I/O configurations, ensure the total current draw remains within the CPU’s internal bus capacity after adding the adapter. For larger I/O counts, an FX3U-16EX or FX3U-16EYT expansion module may already be present on the right extension bus; these are unaffected by the ADP replacement.

When the Modbus RTU network connects to third-party devices such as Mitsubishi FR-A800 series variable frequency drives, MR-J4 servo amplifiers, or Omron temperature controllers, the FX3U-485ADP-MB communicates using standard Modbus function codes (FC01, FC02, FC03, FC04, FC05, FC06, FC16), ensuring interoperability without vendor-specific protocol libraries. This is a significant advantage over the standard FX3U-485ADP, which requires user-defined protocol (RS instruction) programming for each device type.

For projects that also require programming cable access during commissioning, the FX-USB-AW USB programming cable connects to the FX3U CPU’s mini-DIN programming port independently of the ADP communication ports, allowing simultaneous online monitoring in GX Works2 while the Modbus RTU network remains active. This is particularly useful during live system commissioning where the RS-485 network cannot be interrupted.

Retrofit Guidance FAQ

Q: Can I replace a failed FX3U-485ADP-MB without modifying the PLC program?
A: Yes. The FX3U-485ADP-MB is a direct hardware replacement. The Modbus RTU communication parameters (baud rate, parity, stop bits, station number) are stored in the FX3U CPU’s special data registers (D8120 series for CH1). These register values are retained in the CPU’s battery-backed memory and do not need to be re-entered after swapping the adapter. Power down the CPU, remove the failed adapter, install the replacement, and power up — communication resumes automatically.

Q: Is the FX3U-485ADP-MB compatible with both 2-wire and 4-wire RS-485 configurations?
A: Yes. The terminal block supports both 2-wire half-duplex (SDA, SDB, SG) and 4-wire full-duplex (SDA, SDB, RDA, RDB, SG) wiring. The mode is selected via the DIP switch on the adapter body. Verify the switch position matches your existing network wiring before powering up.

Q: What is the maximum cable length for the RS-485 network?
A: At 9,600 bps, the RS-485 bus supports up to 500 meters of shielded twisted-pair cable. At higher baud rates (38,400 bps or above), the practical distance decreases. Use 120Ω termination resistors at both ends of the bus for networks longer than 100 meters or with more than 8 slave devices.

Q: Can the FX3U-485ADP-MB be used simultaneously with an FX3U-ENET or FX3U-232ADP-MB on the same CPU?
A: The FX3U CPU supports up to two ADP adapters simultaneously (CH1 and CH2). The FX3U-485ADP-MB can occupy CH1 while an FX3U-ENET or FX3U-232ADP-MB occupies CH2, provided the GX Works2 PLC parameters correctly assign each channel. Both channels operate independently.

Q: Does replacing the adapter require a GX Works2 license or programming software?
A: Not for a like-for-like replacement where the program and parameters are already stored in the CPU. GX Works2 is only required if you need to modify communication parameters, update the ladder program, or verify the Modbus device map after replacement.

Q: What should I check if Modbus communication does not resume after replacing the adapter?
A: Verify the DIP switch position (2-wire vs 4-wire), check the terminal block wiring polarity (SDA+/SDB−), confirm the baud rate and parity settings in D8120, and inspect the RS-485 cable for continuity and correct termination. Also confirm the slave device station numbers have not changed.

Warranty Assurance

Every FX3U-485ADP-MB unit shipped by TOPNLMS undergoes pre-shipment functional verification including communication port integrity check, optical isolation test, and DIP switch operation confirmation. Units are sourced from authorized distribution channels and stored in ESD-safe, climate-controlled conditions.

• 12-Month Warranty: Covers manufacturing defects and functional failures under normal operating conditions from the date of shipment.
• Pre-Shipment Testing: Each unit is tested for RS-485 signal integrity and Modbus RTU communication function before dispatch.
• Replacement Support: DOA (Dead on Arrival) units are replaced or refunded within 7 business days of confirmed fault report with photographic evidence.
• After-Sales Response: Technical support available via email within 24 hours for wiring, configuration, and compatibility queries.
• Shipping: Dispatched from Xiamen, China via DHL Express, FedEx International, or SF International. Typical transit: 3–7 business days to most destinations. Tracking provided on same day of dispatch.
• Procurement Assurance: Proforma invoice, packing list, and certificate of origin available upon request for customs clearance and corporate procurement compliance.
