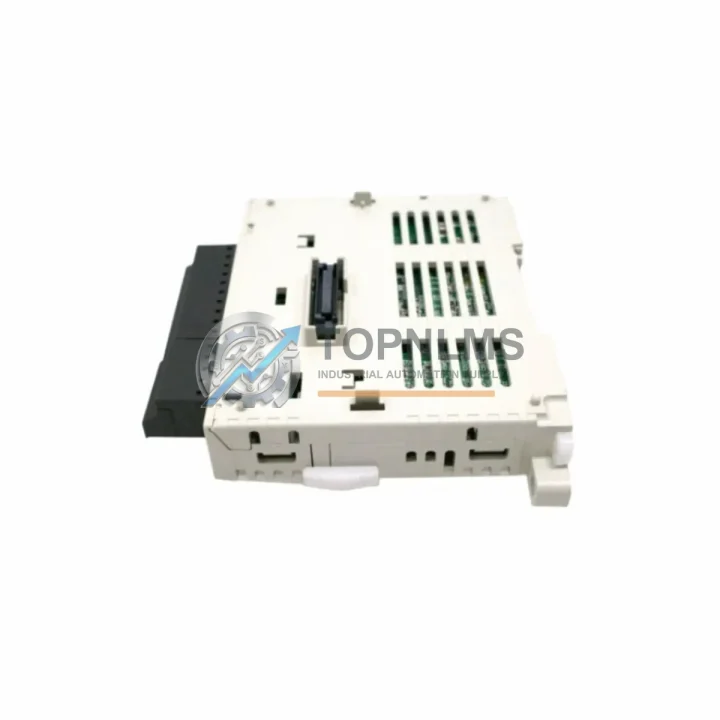

Mitsubishi FX3U-32MR/DS Original Industrial Spare FX3U Compatible

Product Overview

Mitsubishi FX3U-32MR/DS Original Industrial Spare: System Stability & Maintenance Value

The Mitsubishi FX3U-32MR/DS is a high-reliability PLC CPU unit from the MELSEC FX3U series, engineered for demanding industrial automation environments. With 32 I/O points (16 inputs / 16 relay outputs), dual 24VDC power supply architecture, and full compatibility with the FX3U ecosystem, this unit is a cornerstone spare part for factories seeking to eliminate unplanned downtime and extend the operational life of existing control systems.

Whether you are managing a scheduled shutdown, responding to an emergency fault, or building a proactive spare parts inventory, the FX3U-32MR/DS delivers the performance, compatibility, and sourcing confidence that industrial maintenance teams require. Its relay output design makes it universally applicable across motor control, conveyor systems, packaging lines, and process automation panels where robust switching and noise immunity are critical.

Critical Technical Specs

Preventive Maintenance Strategy

A well-structured preventive maintenance program for any FX3U-based control system extends well beyond the CPU unit itself. When inspecting or replacing the FX3U-32MR/DS, experienced maintenance engineers treat the event as an opportunity to audit the entire control cabinet for wear, degradation, and latent failure risk.

Begin with the power supply chain. The FX3U-32MR/DS operates on 24VDC dual power, so verifying the upstream DC power supply module — such as a dedicated 24VDC DIN-rail PSU — for output voltage stability and ripple is essential before commissioning a replacement CPU. A marginal power supply that passes basic checks can still cause intermittent CPU resets or communication faults under load.

Next, inspect the FX3U expansion I/O modules connected to the base unit. Modules such as the FX3U-16EX (input expansion) and FX3U-16EYR (relay output expansion) share the internal bus with the CPU; a failing expansion connector or corroded bus terminal can cause the entire system to fault even after a CPU swap. Clean and reseat all expansion connectors during the maintenance window.

Communication integrity is equally critical. If the system uses FX3U-232-BD or FX3U-485-BD communication boards for RS-232/RS-485 SCADA or HMI connectivity, inspect the board seating and cable termination. A loose communication board can cause intermittent data loss that is often misdiagnosed as a CPU fault. Similarly, if the installation uses a FX3U-ENET Ethernet adapter for network integration, verify IP configuration and cable integrity as part of the replacement procedure.

Analog signal chains deserve dedicated attention. FX3U-4AD analog input modules and FX3U-4DA analog output modules connected to process sensors and actuators should be checked for signal drift and calibration accuracy. Relay output contacts on the CPU and any connected FX3U-16EYR modules should be inspected for contact wear, especially in high-cycle applications such as conveyor indexing or packaging machinery.

Terminal blocks and wiring within the control cabinet are a frequently overlooked failure source. Loose or oxidized terminals on the I/O wiring side — particularly on the relay output commons — can cause sporadic output failures that appear to be CPU-related. Tighten all terminal screws and apply contact cleaner to any visibly oxidized connections. If the cabinet uses Phoenix Contact or Weidmüller style terminal blocks, this is an ideal time to replace any that show signs of heat discoloration or mechanical damage.

For systems with an HMI panel — such as a Mitsubishi GOT2000 series touch panel communicating via RS-422 or USB — verify that the HMI firmware and screen project are compatible with the replacement CPU’s firmware version. Firmware mismatches between the GOT and FX3U can cause communication timeouts that delay restart after maintenance.

Finally, review the fuse and circuit protection devices feeding the control panel. Blade fuses, miniature circuit breakers, and surge protection devices (SPDs) protecting the 24VDC bus should be tested or replaced on a scheduled basis. A blown fuse or degraded SPD that is not caught during a CPU replacement can cause the new unit to fail prematurely, leading to repeat downtime and unnecessary cost.

Strategic Replacement Solutions

The FX3U-32MR/DS is a direct replacement for aging FX2N-32MR and FX1N-40MR installations where the original CPU has reached end-of-life or spare parts availability has become a supply chain risk. The FX3U platform offers backward-compatible ladder logic execution for most FX2N programs, allowing maintenance teams to migrate without full reprogramming in the majority of cases — significantly reducing the engineering cost and risk associated with legacy system upgrades.

For facilities managing multiple FX3U-based lines, maintaining a minimum stock of one FX3U-32MR/DS per production zone is a recognized best practice in industrial spare parts management. The mean time to repair (MTTR) for a PLC CPU fault drops from hours to minutes when a pre-tested, shelf-ready replacement is available on-site. This is particularly valuable in continuous-process industries — food and beverage, automotive assembly, chemical processing — where every hour of unplanned downtime carries significant production and quality cost.

When sourcing replacement units, insist on original Mitsubishi Electric manufacture with full factory test documentation. Counterfeit and refurbished FX3U units are present in the market and can exhibit subtle timing or communication faults that are difficult to diagnose and may cause intermittent production issues. Each unit supplied by TOPNLMS is tested prior to shipment and covered by a 12-month warranty, providing procurement teams with the documentation and assurance required for maintenance records and audit compliance.
