Mitsubishi FX2NC-32EX Replacement for MELSEC FX2NC

Product Overview

Mitsubishi FX2NC-32EX Replacement for MELSEC FX2NC: Seamless Transition & Legacy System Upgrade

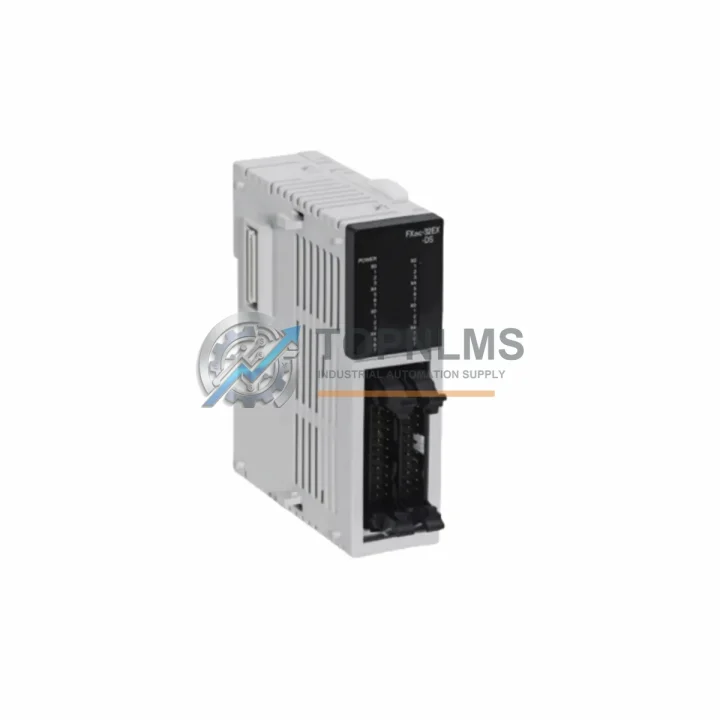

The Mitsubishi FX2NC-32EX is a 32-point DC input expansion module designed for the MELSEC FX2NC series compact PLC platform. As industrial facilities continue to modernize aging control architectures, the FX2NC-32EX remains one of the most sought-after replacement and upgrade components for engineers managing legacy FX2NC-based systems. Whether you are replacing a failed module, expanding an existing I/O configuration, or executing a phased migration from an older FX0N, FX1N, or FX2N platform, this module delivers the wiring compatibility, compact form factor, and communication consistency your system demands.

The FX2NC series was engineered for space-constrained control cabinet installations. The FX2NC-32EX maintains the same ultra-compact connector-type terminal block interface used across the FX2NC family, meaning field wiring from your existing sensors, proximity switches, and discrete input devices can be reconnected without modification. For facilities running 24V DC NPN or PNP input field devices, the FX2NC-32EX supports direct wiring continuity from legacy installations, dramatically reducing rewiring labor and the risk of commissioning errors during a live system changeover.

When integrating the FX2NC-32EX into an existing control cabinet, engineers frequently pair it with the FX2NC-32MT or FX2NC-64MT main unit as the host controller. The expansion module connects directly to the main unit or to other expansion modules via the dedicated FX2NC bus connector, preserving the compact rail-mount profile that makes this series ideal for tight panel layouts. In multi-module configurations, the FX2NC-CNV-IF conversion interface adapter is often required when bridging FX2NC expansion modules to FX2N or FX3U main units, enabling cross-generation compatibility without full system replacement.

For facilities transitioning from older FX0N or FX1N series controllers, the FX2NC-32EX can serve as part of a staged upgrade strategy. Rather than replacing the entire control system at once, maintenance engineers can retain existing field wiring and cabinet infrastructure while upgrading the CPU to a more capable FX2NC or FX3UC platform. In such migrations, the FX3UC-32MT/LT or FX3UC-64MT/LT is a common upgrade target, and the FX2NC-32EX expansion module remains fully compatible within that architecture via the appropriate interface adapter.

Communication protocol continuity is a critical concern in any PLC migration. The FX2NC series communicates via Mitsubishi’s proprietary RS-422 programming port, compatible with standard SC-09 or USB-SC09-FX programming cables. Existing GX Developer or GX Works2 ladder programs can be retained and re-downloaded without structural modification when replacing a failed FX2NC-32EX, ensuring zero program rework in most maintenance scenarios. For systems using CC-Link or Mitsubishi MELSECNET communication modules mounted in the same rack, the FX2NC-32EX expansion does not interfere with network topology or node addressing.

Physical installation of the FX2NC-32EX requires no additional mounting hardware beyond the standard DIN rail clip integrated into the module body. The module’s compact 40mm width profile allows it to be added to an existing FX2NC rack without requiring cabinet redesign or additional DIN rail space in most standard 300mm or 400mm wide control enclosures. Power consumption is drawn directly from the FX2NC main unit’s internal 5V DC bus, eliminating the need for an external FX2NC-PS-001 power supply unit in most standard configurations — though high I/O count systems with multiple expansion modules should verify total bus current draw against the main unit’s rated output.

For systems requiring analog signal handling alongside discrete inputs, the FX2NC-32EX is commonly deployed alongside the FX2NC-4AD analog input module or the FX2NC-2DA analog output module within the same expansion chain. This mixed I/O architecture is typical in process control applications where temperature, pressure, or flow signals must be processed alongside discrete on/off inputs from limit switches, photoelectric sensors, or emergency stop circuits.

Procurement teams sourcing the FX2NC-32EX as a spare or emergency replacement should note that this module is classified as a legacy/discontinued product within Mitsubishi Electric’s current catalog. Availability is sourced through authorized industrial distributors and specialist aftermarket suppliers. TOPNLMS maintains verified stock of the FX2NC-32EX, with each unit subject to pre-shipment functional testing covering input channel continuity, bus connector integrity, and LED indicator operation. Units are shipped in anti-static packaging with full documentation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete FX2NC system migration or expansion typically involves more than a single module swap. When replacing or upgrading around the FX2NC-32EX, the following components are commonly required in the same project scope:

The FX2NC-CNV-IF interface converter is essential when connecting FX2NC-series expansion modules to an FX2N or FX3U main unit, bridging the compact connector bus to the standard expansion bus. For systems requiring additional output capacity alongside the 32 new input points, the FX2NC-32EYT transistor output expansion module provides a matched 32-point output complement using the same compact connector interface and bus architecture.

Power integrity across the expansion chain should be verified using the FX2NC-PS-001 dedicated power supply unit, particularly in cabinets where multiple FX2NC expansion modules are stacked and the main unit’s internal bus current budget is near its rated limit. For communication and remote diagnostics, the FX2NC-232IF RS-232C communication module enables serial connectivity to SCADA systems, HMI panels, or PC-based monitoring software without disrupting the expansion I/O chain.

HMI integration is a common parallel workstream in FX2NC upgrade projects. The Mitsubishi GOT1000 series (GT1020, GT1030) or the more current GOT2000 series (GT2103, GT2107) panels communicate natively with FX2NC controllers via RS-422, requiring no additional communication module in most single-drop configurations. For field-level signal conditioning, Phoenix Contact or Weidmuller signal isolators are frequently installed in the same cabinet to protect the FX2NC-32EX input channels from ground loops or voltage spikes originating from long cable runs or noisy industrial environments.

Programming cable continuity should also be confirmed: the USB-SC09-FX USB-to-RS422 programming cable remains the standard tool for GX Works2 connectivity to FX2NC main units during commissioning and program verification after module replacement.

Retrofit Guidance FAQ

Q: Can I replace a failed FX2NC-32EX without modifying my existing field wiring?
A: Yes. The FX2NC-32EX uses a connector-type terminal interface. As long as the original connector and wiring harness are intact, the replacement module accepts the same connector directly. No rewiring is required in standard replacement scenarios.

Q: Is the FX2NC-32EX compatible with an FX3U or FX3UC main unit?
A: Direct compatibility requires the FX2NC-CNV-IF interface adapter. With this adapter installed, the FX2NC-32EX can be used as an expansion module on FX3U or FX3UC host controllers, preserving your existing I/O investment during a CPU upgrade.

Q: Do I need to modify my GX Works2 ladder program after replacing the module?
A: No program modification is required for a like-for-like FX2NC-32EX replacement. The I/O address mapping remains identical. Simply re-download the existing program after hardware replacement and verify input status via the monitor function.

Q: What is the maximum number of FX2NC-32EX modules that can be connected to a single FX2NC main unit?
A: The FX2NC series supports up to 8 expansion modules in a single chain, subject to the main unit’s total I/O point limit (typically 256 points including the main unit). Always verify bus current consumption against the main unit’s rated 5V DC output before adding modules.

Q: How do I verify the module is functioning correctly after installation?
A: Power on the system and observe the module’s LED indicators. Each input channel has a corresponding LED that illuminates when the input is energized. Use GX Works2 device monitor to confirm X-register status matches physical input states. Any discrepancy indicates a wiring or connector seating issue.

Q: Can the FX2NC-32EX be used in a CC-Link remote I/O configuration?
A: No. The FX2NC-32EX is a local expansion module and connects directly to the FX2NC main unit bus. For remote I/O over CC-Link, a dedicated CC-Link remote I/O station (such as the AJ65SBTB1-16D) is required.

Warranty Assurance

Every FX2NC-32EX unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Pre-shipment testing includes input channel continuity verification across all 32 points, bus connector mechanical integrity check, and LED indicator functional test. Units that do not pass testing are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are dispatched with priority shipping to minimize your system downtime.

For urgent breakdown situations, we maintain a dedicated emergency stock allocation for FX2NC-series modules. Contact our technical sales team directly to confirm real-time availability and expedited dispatch options.

All units are shipped in anti-static ESD packaging with individual serial tracking. Export documentation, including commercial invoice and packing list, is provided as standard for international shipments.
