Mitsubishi FX2N-16MR-001 Ruggedized Relay Output Module

Product Overview

Mitsubishi FX2N-16MR-001 Ruggedized Relay Output Module: Industrial Resilience for Harsh Environments

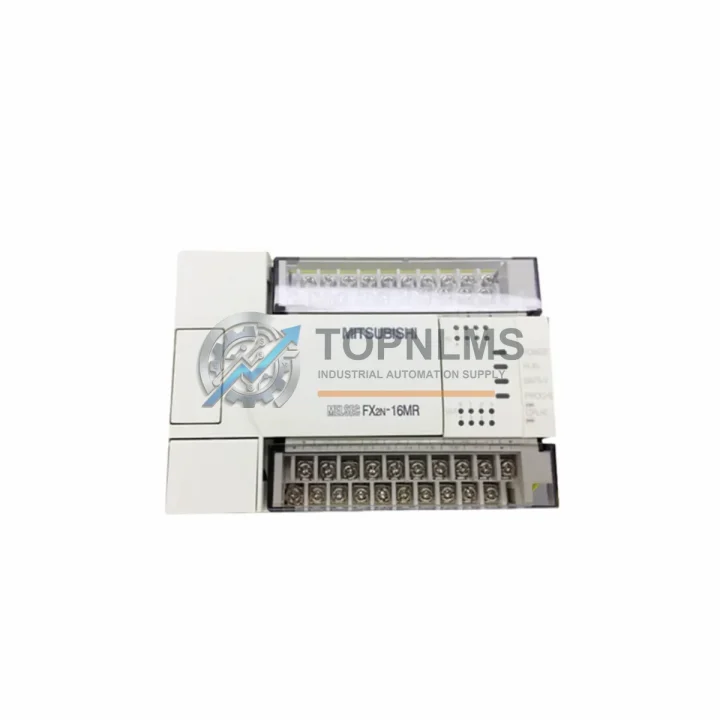

The Mitsubishi FX2N-16MR-001 is a compact, high-reliability programmable logic controller module engineered for continuous operation in the most demanding industrial environments. As part of Mitsubishi Electric’s proven FX2N Series, this module delivers 8 DC inputs and 8 relay outputs with a wide-range AC power supply (100–240VAC), making it a cornerstone component for control engineers who cannot afford downtime. Whether deployed in high-temperature foundries, high-humidity water treatment plants, dust-laden mining galleries, or vibration-intensive heavy manufacturing lines, the FX2N-16MR-001 maintains deterministic scan-cycle performance and robust I/O integrity where lesser controllers fail.

Designed with industrial safety and electromagnetic compatibility at its core, the FX2N-16MR-001 incorporates reinforced noise filtering on all input channels, optocoupler isolation between field wiring and the CPU bus, and relay output contacts rated for inductive load switching — critical for driving solenoid valves, motor starters, and safety interlock circuits without contact degradation. Its compact DIN-rail form factor integrates seamlessly into standard control cabinets alongside FX2N expansion modules, FX2N-8EX input expansion units, and FX2N-8EYR relay output extensions, allowing engineers to scale I/O capacity without replacing the base controller.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated control architecture, the FX2N-16MR-001 rarely operates in isolation. On the input side, field signals from proximity sensors, pressure switches, and emergency-stop circuits are conditioned through the module’s optocoupled DC inputs, providing galvanic isolation that protects the CPU from transient surges common in heavy-industry environments. On the output side, the relay contacts drive loads directly — including Mitsubishi Electric FR-E700 Series variable frequency drives for motor speed control, NR Series electromagnetic contactors for motor protection, and TH-N Series thermal overload relays for overcurrent protection.

For safety-critical applications, the FX2N-16MR-001 is frequently paired with dedicated safety relay modules such as the Mitsubishi Electric F3SX Series safety controllers, which monitor emergency-stop and light-curtain inputs and provide dual-channel redundant output switching. Communication expansion is achieved through the FX2N-485-BD RS-485 communication board, enabling MODBUS RTU connectivity to SCADA systems, HMI panels, and remote I/O racks. Where Ethernet integration is required, the FX3U-ENET-ADP adapter provides a migration path within the Mitsubishi MELSEC ecosystem.

Power supply integrity is maintained by pairing the FX2N-16MR-001 with a dedicated Mitsubishi Electric PS-5R Series DIN-rail power supply, which provides regulated 24VDC to field sensors and input circuits with built-in overvoltage and short-circuit protection. Terminal block wiring is organized through Mitsubishi Electric A6TBXY36 Series terminal modules, which simplify field wiring, reduce installation errors, and allow rapid replacement of the PLC base unit without rewiring field cables — a critical advantage in 24/7 production environments where maintenance windows are measured in minutes.

Application in Critical Infrastructure

The FX2N-16MR-001 has established a long service record across critical infrastructure sectors where control system failure carries safety, environmental, and financial consequences.

In oil and gas processing, the module controls wellhead valve sequencing, separator level control, and emergency shutdown (ESD) logic in Class I hazardous area control panels — typically housed in purged and pressurized enclosures rated for Zone 2 / Division 2 environments. Its relay outputs provide the hard-wired interlock signals required by functional safety standards, complementing the software logic with physical contact isolation.

In mining and mineral processing, the FX2N-16MR-001 manages conveyor belt sequencing, crusher interlock logic, and sump pump level control in environments characterized by coal dust, silica particulate, and continuous mechanical vibration. The module’s vibration and shock ratings — validated to IEC 60068-2-6 — ensure reliable operation on equipment frames subject to constant dynamic loading.

In power generation and substation automation, the module provides auxiliary relay logic for circuit breaker control, transformer cooling fan sequencing, and alarm annunciation panels. Its wide AC input voltage range (100–240VAC) accommodates the variable supply quality found in remote generation sites and island-mode microgrids.

In water and wastewater treatment, the FX2N-16MR-001 controls dosing pump sequencing, UV disinfection system interlocks, and lift station pump alternation logic. The module’s humidity tolerance (up to 95% RH non-condensing) and corrosion-resistant housing make it suitable for wet well and chemical dosing room installations where condensation and chemical vapors are persistent challenges.

In metallurgy and steel production, the module manages furnace zone sequencing, cooling water valve control, and rolling mill auxiliary logic in environments where ambient temperatures regularly approach the module’s rated upper limit and electromagnetic interference from large induction furnaces and DC drives is severe. The FX2N-16MR-001’s built-in noise filtering and optocoupler isolation provide the EMC immunity margin required for reliable operation in these conditions.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every FX2N-16MR-001 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects in materials and workmanship from the date of dispatch. Prior to shipment, each unit undergoes functional testing including I/O point verification, power supply regulation check, and communication port validation. In the event of a warranty claim, we provide replacement or repair support with documented RMA procedures. Contact [email protected] to initiate a warranty claim.

Q2: How do you verify compatibility with my existing FX2N system?
The FX2N-16MR-001 is fully compatible with all standard FX2N Series expansion modules, memory cassettes, and communication boards produced by Mitsubishi Electric. It supports GX Developer and GX Works2 programming software. If you are integrating this unit into an existing FX2N rack or replacing a failed base unit, provide your system configuration and we will confirm compatibility before shipment. We maintain cross-reference data for common FX2N variants including FX2N-16MR-ES/UL, FX2N-16MT-001, and FX2N-32MR-001.

Q3: What is your lead time and shipping process for urgent replacement orders?
For in-stock units, orders confirmed before 14:00 CST are typically dispatched the same business day via DHL Express, FedEx International Priority, or SF Express, depending on destination. We provide tracking numbers and commercial invoices with accurate HS code classification for customs clearance. For critical plant shutdowns requiring emergency replacement, contact us directly at +86 18359293191 for expedited handling.

Q4: Can this module be used as a long-term spare for discontinued FX2N production lines?
Yes. The FX2N-16MR-001 is one of the most widely deployed compact PLC base units in the Mitsubishi MELSEC FX family, and TOPNLMS maintains strategic stock specifically to support legacy system maintenance. For production lines where the FX2N platform is no longer in active development but remains in service, we recommend holding at least one spare base unit and one spare power supply per line. We can assist with multi-unit procurement planning and provide documentation to support your maintenance management system (CMMS) records.
