Mitsubishi FX2-80MR Ruggedized PLC Base Unit for Harsh Environments

Product Overview

Mitsubishi FX2-80MR Ruggedized PLC Base Unit for Harsh Environments

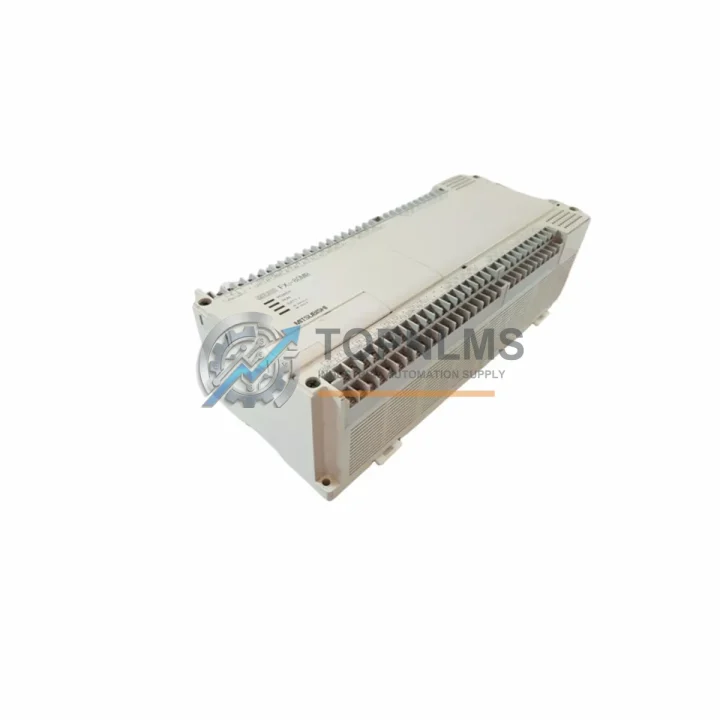

The Mitsubishi FX2-80MR is a high-reliability, 80-point relay output programmable logic controller base unit from Mitsubishi Electric’s proven MELSEC FX2 Series. Engineered for continuous operation in demanding industrial environments, the FX2-80MR delivers consistent, fault-tolerant control performance across a wide range of critical applications — from high-temperature foundry floors and dust-laden mining galleries to vibration-intensive heavy machinery lines and chemically aggressive water treatment facilities.

Designed to meet the rigorous demands of industrial automation safety, the FX2-80MR integrates seamlessly into existing MELSEC FX2 architecture, making it an ideal drop-in replacement or system expansion module for engineers managing legacy and hybrid control systems. Its relay output configuration provides galvanic isolation between the controller and field devices, a critical safety feature in environments where electrical noise, ground loops, and transient surges are constant threats to system integrity.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control cabinets, the FX2-80MR rarely operates in isolation. It functions as the central decision-making unit within a broader ecosystem of automation components, each contributing to system-wide safety and uptime. When paired with FX2N-16EX and FX2N-16EYR expansion I/O modules, the FX2-80MR’s addressable I/O capacity scales to meet complex multi-zone process requirements without requiring a controller upgrade. For applications demanding precise motion coordination, the FX2N-1PG pulse output module integrates directly into the FX2 backplane, enabling synchronized servo and stepper motor control alongside the relay outputs.

Power integrity is foundational to PLC reliability. Industrial-grade DIN-rail power supplies — such as the Mitsubishi Electric Q61P series or equivalent 24VDC regulated supplies — ensure the FX2-80MR receives clean, stable power even when heavy inductive loads such as motor starters and solenoid valves switch on the same panel bus. Surge protection terminal blocks and EMC-rated cable conduits further shield the controller from conducted interference originating in variable frequency drives (VFDs) operating nearby on the same production line.

Communication reliability is equally critical. The FX2-80MR’s built-in RS-422 port supports connection to FX2N-232-BD and FX2N-485-BD communication boards, enabling Modbus RTU and RS-485 multi-drop networking with HMI panels, SCADA systems, and remote I/O stations. In facilities where Ethernet connectivity is required, the FX3U-ENET-ADP adapter provides a migration path while preserving the existing FX2 program logic investment.

Safety-critical installations benefit from the addition of dedicated safety relay modules — such as the Mitsubishi Electric F3SX series safety controllers — which monitor emergency stop circuits, light curtains, and two-hand control devices independently of the main PLC logic. This dual-channel safety architecture ensures that a single-point failure in the FX2-80MR’s output circuit cannot bypass the machine’s safety function, a requirement under ISO 13849 and IEC 62061 for machinery in Category 3 and PLd environments.

For installations in explosive atmospheres or Zone 2 classified areas, Zener barrier terminal modules and intrinsically safe isolators are recommended between the FX2-80MR’s I/O terminals and field instruments. This configuration maintains ATEX and IECEx compliance while allowing the controller to reside in a standard control cabinet outside the hazardous zone.

Application in Critical Infrastructure

The Mitsubishi FX2-80MR has accumulated a substantial installed base across the most demanding sectors of global industry. In oil and gas upstream and midstream facilities, it controls wellhead safety shutdown systems, pipeline valve actuators, and compressor station sequencing — applications where a controller failure can trigger environmental incidents or personnel injury. Its relay output architecture provides the hard-wired output isolation required by functional safety standards in these environments.

In mining operations, the FX2-80MR manages conveyor belt interlocking, ventilation fan control, and dewatering pump sequencing in underground galleries where ambient temperatures fluctuate widely, coal dust concentrations are elevated, and mechanical vibration from blasting and heavy equipment is continuous. The controller’s EEPROM-based program memory retains logic without battery backup, eliminating a common failure mode in remote, difficult-to-service locations.

Within power generation and distribution substations, the FX2-80MR supervises transformer cooling systems, circuit breaker status monitoring, and auxiliary relay control panels. Its compliance with IEC 61000 electromagnetic compatibility standards ensures stable operation in environments saturated with high-frequency switching transients from power electronics.

In water and wastewater treatment plants, the controller orchestrates pump station sequencing, chemical dosing systems, and UV disinfection unit control — processes that must operate continuously, 24 hours a day, 365 days a year, with minimal unplanned downtime. The FX2-80MR’s proven MTBF and the availability of genuine spare units through authorized distributors like TOPNLMS make it a preferred choice for plant engineers who prioritize long-term supportability over short-term cost.

In metallurgical and steel processing facilities, the FX2-80MR withstands radiated heat from furnaces, electromagnetic interference from induction heating equipment, and the mechanical shock transmitted through building structures during rolling mill operation. Its wide operating temperature range and robust relay output contacts — rated for resistive and inductive loads — make it suitable for direct control of high-current contactors and solenoid valves without intermediate relay panels.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the FX2-80MR?
Every FX2-80MR unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly, with replacement units dispatched upon confirmation of the defect. Our warranty policy reflects our confidence in the quality of our sourcing and pre-shipment inspection process.

Q2: How is each unit tested before shipment?
All FX2-80MR units undergo a multi-point pre-shipment inspection that includes visual examination for physical damage, power-on functional verification, I/O point continuity testing, and communication port validation. Units that do not pass all inspection criteria are quarantined and not shipped. A test report is available upon request for customers with documented quality assurance requirements.

Q3: Is the FX2-80MR compatible with existing MELSEC FX2 and FX2N expansion modules?
Yes. The FX2-80MR is fully compatible with the MELSEC FX2 and FX2N expansion module ecosystem, including digital I/O expansion units, analog input/output modules, communication boards, and special function modules. Customers migrating from FX2-48MR or FX2-64MR base units can reuse existing expansion modules and program logic with minimal modification, protecting their automation investment.

Q4: Can TOPNLMS support long-term supply for maintenance and spare parts programs?
TOPNLMS maintains dedicated stock of the FX2-80MR and related MELSEC FX2 Series components to support planned maintenance programs, emergency breakdowns, and capital project procurement. We work with plant maintenance teams and MRO procurement departments to establish blanket order arrangements and priority allocation for critical spare parts. Contact our technical sales team to discuss your long-term supply requirements.
