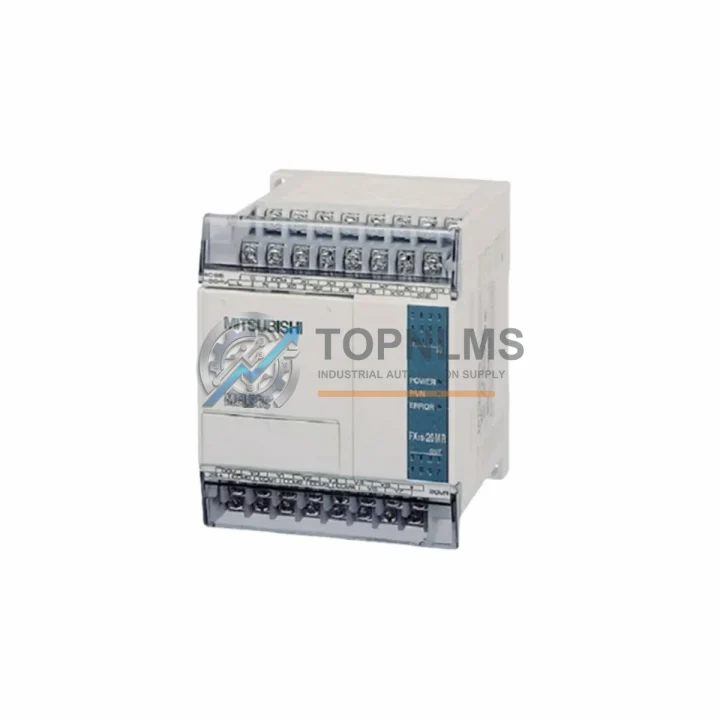

Mitsubishi FX1S-20MT-001 Original Industrial Spare FX1S Compatible

Product Overview

Mitsubishi FX1S-20MT-001 Original Industrial Spare FX1S Compatible: System Stability & Industrial Spare Maintenance Value

The Mitsubishi FX1S-20MT-001 is a 20-point transistor output programmable logic controller from the MELSEC FX1S series — one of Mitsubishi Electric’s most widely deployed compact PLC families in light manufacturing, packaging, material handling, and process automation. As an original industrial spare, the FX1S-20MT-001 plays a critical role in maintaining system uptime, reducing unplanned downtime, and extending the operational life of legacy control architectures that continue to run reliably in factories worldwide.

For maintenance engineers and procurement teams managing aging automation infrastructure, having a verified original FX1S-20MT-001 in stock is not optional — it is a fundamental risk mitigation strategy. When a PLC fails on a production line, every hour of downtime translates directly into lost output, labor cost, and customer delivery risk. A pre-qualified, tested spare on the shelf eliminates the lead time uncertainty that comes with emergency sourcing.

Critical Technical Specs

Preventive Maintenance Strategy

When a maintenance team schedules a planned shutdown to inspect or replace the FX1S-20MT-001, the opportunity should never be limited to the PLC unit alone. The FX1S-20MT-001 sits at the center of a control cabinet ecosystem, and the reliability of the entire system depends on the condition of every connected component.

Begin with the power supply module. The FX1S-20MT-001 operates on 100–240 VAC input, and a degraded or undersized power supply is one of the most common root causes of intermittent PLC faults. Inspect the dedicated power supply unit for output voltage stability, capacitor aging, and thermal performance. If the power supply is more than five years old, proactive replacement during the same maintenance window eliminates a future failure point.

Next, inspect all I/O wiring and terminal blocks connected to the FX1S-20MT-001’s 12 input and 8 output terminals. Loose terminal connections, oxidized contacts, and insulation degradation are frequent contributors to signal errors that are often misdiagnosed as PLC faults. Replacing worn terminal blocks and re-torquing all connections during a planned outage is far less costly than a reactive repair during production.

The FX1S-20MT-001’s transistor outputs drive downstream loads — typically solenoid valves, relay coils, or motor starters. Inspect the intermediate relay modules in the output circuit. Relay contacts wear with switching cycles, and a relay module that is approaching end-of-life can cause erratic output behavior that is difficult to trace without systematic inspection. Replacing relay modules on a scheduled basis, rather than waiting for failure, is a best practice in high-cycle applications.

For systems where the FX1S-20MT-001 communicates with an HMI panel via RS-422, inspect the communication cable and connectors. Cable shielding integrity and connector pin condition directly affect communication reliability. A degraded communication cable can cause HMI display errors or data loss that disrupts operator visibility. If the HMI panel itself — such as a Mitsubishi GOT series terminal — is aging, this is an appropriate time to assess its condition and plan for eventual replacement.

If the FX1S-20MT-001 is connected to expansion I/O modules such as the FX1N-8EX input expansion or FX1N-8EYT output expansion, inspect the flat cable connectors between the base unit and expansion modules. These connectors are subject to mechanical stress and can develop intermittent contact issues over time. Verify that all expansion modules are firmly seated and that the flat cable is free of kinks or damage.

Signal isolation is another area that deserves attention during planned maintenance. If analog signals from sensors or transmitters are routed through signal isolators before reaching the FX1S-20MT-001’s input circuit, verify that the isolators are functioning within specification. A drifting signal isolator can introduce measurement errors that affect process control accuracy without triggering any PLC fault code.

Finally, review the fuse modules and circuit protection devices in the control cabinet. Blown or degraded fuses are sometimes replaced without investigating the root cause, leading to repeated failures. A systematic review of all fuse ratings, fuse condition, and circuit load during the maintenance window ensures that the protection scheme remains appropriate for the current system configuration.

Strategic Replacement Solutions

The FX1S-20MT-001 was introduced as part of Mitsubishi Electric’s FX1S series, which has been in service in industrial facilities for over two decades. Many of these systems remain in production because the control logic is well-proven, the hardware is reliable, and the cost of a full system migration is difficult to justify when the existing PLC continues to perform its function.

Sourcing an original FX1S-20MT-001 as a direct replacement is the lowest-risk strategy for maintaining these systems. An original unit retains full compatibility with existing ladder logic programs developed in GX Developer or GX Works2, requires no re-parameterization, and can be swapped into service with minimal downtime — typically within the time required to transfer the program from backup and verify I/O operation.

For facilities managing multiple FX1S-based control panels, a centralized spare parts strategy is strongly recommended. Holding one or two FX1S-20MT-001 units in the maintenance storeroom, alongside compatible power supply units and key I/O expansion modules, provides a complete rapid-response capability for any FX1S panel failure across the facility. This approach is significantly more cost-effective than emergency procurement, which typically involves premium pricing, expedited freight costs, and extended lead times that directly extend production downtime.

For facilities considering a longer-term migration path, the FX1S-20MT-001 spare provides a bridge strategy — keeping existing lines running reliably while engineering resources are allocated to plan and execute a controlled migration to a current-generation platform such as the Mitsubishi MELSEC iQ-F series. This phased approach avoids forced migrations driven by hardware failure and allows the transition to be executed on the facility’s schedule rather than in response to a crisis.
