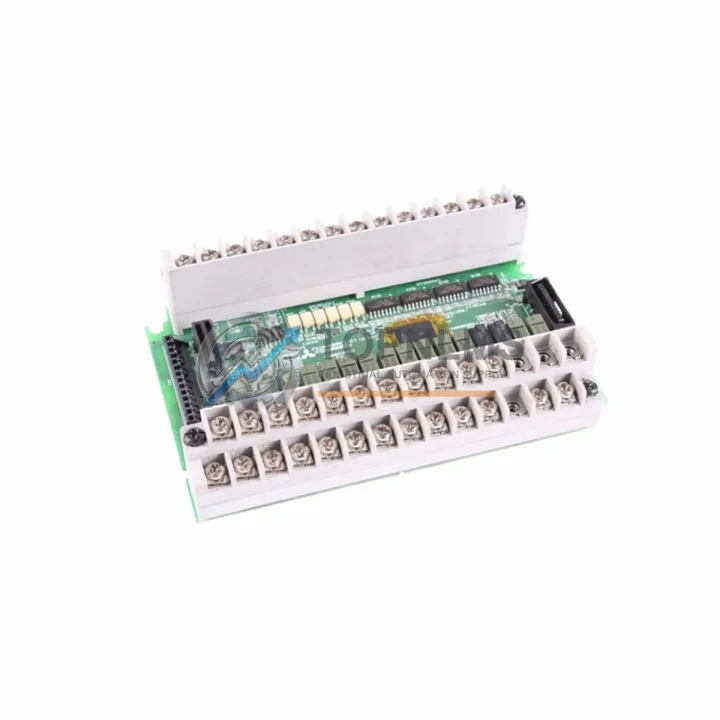

Mitsubishi FX1N-40MR-JY331BA8302H Ruggedized PLC Module

Product Overview

Mitsubishi FX1N-40MR-JY331BA8302H Ruggedized PLC Module: Industrial Resilience for Harsh Environments

The Mitsubishi FX1N-40MR-JY331BA8302H is a high-performance, ruggedized programmable logic controller from Mitsubishi Electric’s proven MELSEC FX1N Series. Engineered for continuous, fault-tolerant operation in the most demanding industrial environments, this 40-point relay output PLC delivers exceptional reliability across high-temperature workshops, high-humidity processing lines, dusty mining sites, and vibration-intensive heavy manufacturing floors. Whether deployed in a standalone control cabinet or integrated into a distributed automation architecture, the FX1N-40MR-JY331BA8302H is built to keep your production running without interruption.

With 24 DC inputs and 16 relay outputs, this controller provides the I/O density required for mid-scale machine control, packaging lines, conveyor systems, and process automation. Its relay output design ensures compatibility with a wide range of field devices — from solenoid valves and motor starters to indicator lamps and safety interlocks — making it a versatile backbone for both new installations and legacy system upgrades.

Rugged Specifications Table

Comprehensive Protection Solutions

The FX1N-40MR-JY331BA8302H is rarely deployed in isolation. In a well-engineered control cabinet, it operates as the central decision-making unit, coordinating a network of complementary components to ensure system-wide safety and uptime. The FX1N Series is designed to interface seamlessly with Mitsubishi FX1N-8EX expansion input modules and FX1N-8EYR relay output extension units, allowing engineers to scale I/O capacity without replacing the base controller.

For communication-intensive applications, the FX1N-485-BD RS-485 communication board enables multi-drop Modbus RTU networking, connecting the PLC to Mitsubishi FR-E700 Series variable frequency drives for precise motor speed control on conveyor and pump systems. In environments with significant electromagnetic interference — such as near large transformers, welding stations, or high-current bus bars — the FX1N-40MR’s built-in noise filter works in conjunction with external Mitsubishi NF Series molded-case circuit breakers and EMC-rated shielded signal cables to maintain signal integrity.

Power supply stability is critical in continuous production environments. The FX1N-40MR-JY331BA8302H is commonly paired with Mitsubishi PS5R-SF24 DIN-rail power supplies to ensure clean, regulated 24 VDC for sensor and input circuits. For safety-critical applications, engineers integrate Mitsubishi Safety Relay Units (F3SJ / MSR Series) alongside the FX1N to create dual-channel emergency stop and light curtain monitoring circuits that comply with IEC 62061 and ISO 13849 safety standards.

Terminal connectivity is handled through Mitsubishi FX-16E-TB terminal block expansion units, which simplify field wiring and reduce installation time in large control panels. For remote I/O and distributed architectures, the FX1N integrates with CC-Link remote I/O stations via the FX1N-16CCL-M CC-Link master module, enabling real-time data exchange across plant-wide automation networks. This makes the FX1N-40MR-JY331BA8302H a natural fit for system architects who need a compact yet expandable controller at the heart of a larger MELSEC-based automation ecosystem.

Application in Critical Infrastructure

The FX1N-40MR-JY331BA8302H has earned a strong track record across the most demanding sectors of critical infrastructure. In oil and gas facilities, it controls wellhead pump sequencing, valve actuation, and flow metering in environments where ambient temperatures fluctuate widely and explosive atmospheres demand rigorous electrical isolation. When installed in appropriately rated enclosures, the FX1N’s relay outputs provide the galvanic isolation necessary to safely switch field devices in Zone 2 classified areas.

In mining and mineral processing operations, the FX1N-40MR manages conveyor belt interlocks, crusher sequencing, and dust suppression system activation. Its vibration and shock resistance ratings — validated against IEC 60068-2-6 and IEC 60068-2-27 — make it suitable for installation on mobile equipment and in underground control rooms subject to continuous mechanical stress.

Within power generation and electrical substation environments, the FX1N-40MR-JY331BA8302H is deployed for auxiliary equipment control, battery room ventilation management, and transformer cooling fan sequencing. Its high noise immunity ensures reliable operation in the presence of strong electromagnetic fields generated by high-voltage switching equipment.

In water and wastewater treatment plants, the controller manages pump station automation, chemical dosing sequences, and level control loops — applications that demand 24/7 uptime and resistance to the corrosive, high-humidity atmospheres typical of wet process environments. Similarly, in metallurgical and steel production facilities, the FX1N-40MR withstands the radiant heat, airborne particulates, and electrical noise generated by arc furnaces, rolling mills, and induction heating systems, maintaining deterministic scan-cycle performance even under thermal stress.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All FX1N-40MR-JY331BA8302H units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Coverage includes manufacturing defects, component failure under normal operating conditions, and firmware-related malfunctions. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund after technical verification. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
Every FX1N-40MR-JY331BA8302H undergoes a multi-stage pre-shipment inspection protocol at our Xiamen facility. This includes power-on functional testing, I/O point verification across all 40 channels, communication port integrity checks, and visual inspection for physical damage or counterfeit indicators. Units are shipped with a test report upon request. We source exclusively from authorized distribution channels and verified OEM supply chains to ensure genuine Mitsubishi Electric product authenticity.

Q3: Is the FX1N-40MR-JY331BA8302H compatible with existing MELSEC FX1N systems and programming software?
Yes. The FX1N-40MR-JY331BA8302H is fully compatible with the MELSEC FX1N hardware ecosystem, including all FX1N expansion modules, communication boards, and memory cassettes. It is programmed using Mitsubishi GX Works2 or GX Developer software via the built-in RS-422 port, and existing FX1N ladder logic programs can be transferred without modification. This makes it an ideal drop-in replacement for aging or failed FX1N base units in existing installations.

Q4: Can TOPNLMS support long-term supply and emergency replacement requirements?
Yes. TOPNLMS maintains dedicated safety stock of high-demand MELSEC FX1N Series components, including the FX1N-40MR-JY331BA8302H, to support both planned maintenance schedules and emergency breakdown replacements. We offer express DHL/FedEx/UPS shipping to most global destinations with typical transit times of 3–7 business days. For customers with critical infrastructure requirements, we can arrange priority allocation agreements and consignment stock arrangements. Contact our technical sales team to discuss your long-term supply strategy.
