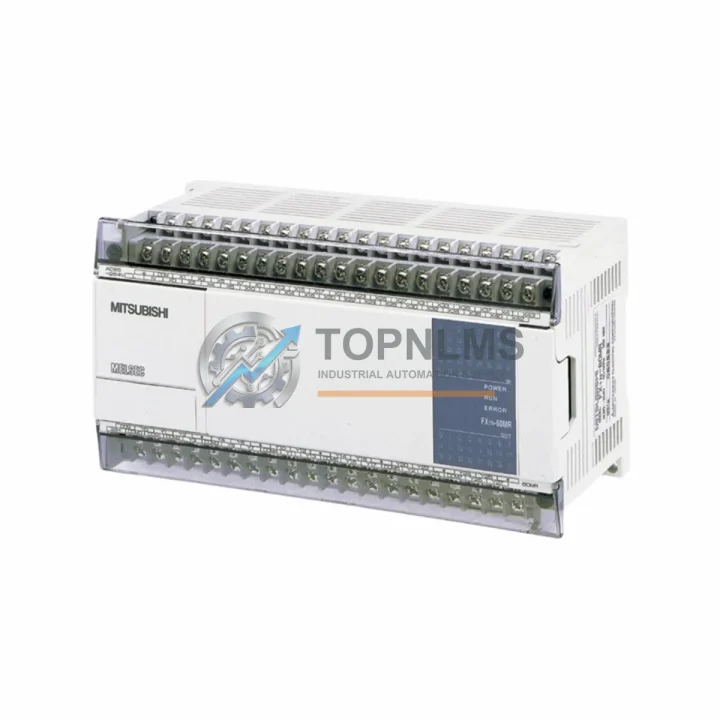

Mitsubishi FX1N-40MC Ruggedized PLC Module for Harsh Environments

Product Overview

Mitsubishi FX1N-40MC Ruggedized PLC Module for Harsh Environments

The Mitsubishi FX1N-40MC is a high-performance, ruggedized programmable logic controller from Mitsubishi Electric’s MELSEC FX1N series — engineered to deliver uninterrupted control in the most demanding industrial environments. With 40 built-in I/O points (24 inputs / 16 outputs), this compact yet powerful PLC module is purpose-built for continuous operation in high-temperature workshops, high-humidity processing lines, dust-laden mining facilities, vibration-intensive heavy machinery, and environments subject to severe electromagnetic interference (EMI). Whether deployed in a standalone control cabinet or integrated into a distributed automation architecture, the FX1N-40MC provides the processing reliability and signal integrity that mission-critical industrial operations demand.

Designed around Mitsubishi Electric’s proven MELSEC FX platform, the FX1N-40MC supports ladder diagram programming via GX Developer and GX Works2 software, enabling rapid commissioning and seamless integration with existing MELSEC FX-series infrastructure. Its compact DIN-rail form factor and robust housing make it an ideal fit for space-constrained control panels in oil refineries, gas compression stations, water treatment facilities, power distribution substations, metallurgical plants, and continuous production lines where downtime is not an option.

In harsh-environment deployments, the FX1N-40MC operates reliably alongside the FX1N-8EX expansion input module and FX1N-8EYR expansion output module, extending I/O capacity without compromising the system’s noise immunity. For applications requiring analog signal conditioning, the FX1N-2AD analog input module and FX1N-1DA analog output module integrate directly into the FX1N bus, enabling precise process variable monitoring in temperature-sensitive or pressure-critical environments. Communication-intensive installations benefit from the FX1N-232-BD RS-232C communication board and FX1N-485-BD RS-485 communication board, which allow the FX1N-40MC to interface with SCADA systems, HMI panels, variable frequency drives (VFDs), and intelligent field devices over standard industrial protocols.

For power-sensitive installations, the FX1N-40MC pairs effectively with Mitsubishi’s FX-30P handheld programmer for on-site diagnostics and parameter adjustment without requiring a laptop — a critical advantage in remote or hazardous-area installations. In control cabinet configurations, the module is commonly deployed alongside Mitsubishi FR-E700 series variable frequency drives for motor speed regulation, Mitsubishi A1SY10 relay output modules for high-current switching, and Mitsubishi GT1055-QSBD GOT HMI panels for operator interface. Safety-critical applications may further integrate Mitsubishi safety relays and dedicated FX3U-16CCL-M CC-Link master modules to extend the control network across distributed field devices while maintaining deterministic communication timing.

The FX1N-40MC’s onboard RUN/STOP switch, LED status indicators, and battery-backed program memory (EEPROM) ensure that control programs are retained through power interruptions — a non-negotiable requirement in continuous process industries such as petrochemical refining, cement production, and steel rolling mills. Its wide operating temperature range and compliance with IEC 61131-3 programming standards make it a globally recognized choice for OEM machine builders and system integrators seeking a proven, long-lifecycle PLC platform.

Rugged Specifications Table

Comprehensive Protection Solutions

Reliable industrial automation is never the result of a single component — it is the outcome of a well-engineered system where every element is selected for compatibility, durability, and mutual support. The FX1N-40MC serves as the central processing unit in control architectures that demand coordinated protection across power, signal, communication, and safety layers.

In high-vibration environments such as compressor stations or rolling mills, the FX1N-40MC is typically mounted in sealed control cabinets alongside Mitsubishi FX1N-8EX input expansion modules to monitor additional field sensors without signal degradation. Output-side protection is reinforced through FX1N-8EYR relay output modules, which isolate the PLC’s logic circuits from high-current actuator loads. For analog process control — such as flow rate regulation or temperature loop management — the FX1N-2AD and FX1N-1DA modules provide galvanically isolated signal conditioning that resists ground loop interference common in heavy industrial environments.

Communication integrity in EMI-rich environments is maintained through the FX1N-485-BD RS-485 board, enabling multi-drop Modbus RTU networks that connect the FX1N-40MC to remote I/O stations, intelligent motor controllers, and energy meters across distances exceeding 500 meters. Where higher-level SCADA integration is required, the FX1N-232-BD RS-232C board provides direct HMI connectivity. Power quality protection is addressed by pairing the system with industrial-grade DIN-rail power supplies and surge protection devices, ensuring the FX1N-40MC’s internal power regulator is not exposed to transient overvoltages from nearby VFDs or contactor switching events.

Application in Critical Infrastructure

The Mitsubishi FX1N-40MC has established a strong track record across critical infrastructure sectors where control system failure carries significant operational, financial, and safety consequences.

In oil and gas facilities, the FX1N-40MC controls wellhead valve sequencing, compressor start/stop logic, and emergency shutdown (ESD) interlocks in Class I hazardous-area control panels. Its battery-backed memory ensures that safety-critical ladder programs survive power outages without requiring manual reload. In water and wastewater treatment plants, the module manages pump station automation, chemical dosing sequences, and level control loops — applications where 24/7 uptime and resistance to high-humidity environments are mandatory. The FX1N-40MC’s relay outputs provide the dry-contact signals required to interface with legacy field instrumentation common in municipal infrastructure.

In mining and mineral processing, the FX1N-40MC withstands the extreme vibration, dust ingress, and electrical noise generated by crushers, conveyors, and grinding mills. Deployed in ruggedized enclosures with positive-pressure purging, it controls conveyor belt sequencing, crusher feed rate regulation, and sump pump automation. In metallurgical and steel plants, the module coordinates rolling mill drive sequences, furnace temperature control interlocks, and cooling water flow management — environments where ambient temperatures routinely exceed 45°C and electromagnetic interference from large induction furnaces is a constant challenge.

In power generation and distribution substations, the FX1N-40MC provides bay-level control logic for switchgear automation, transformer cooling fan sequencing, and alarm annunciation systems. Its compact footprint and DIN-rail mounting make it suitable for retrofit installations in existing relay panels where space is at a premium.

Security & Quality FAQ

Q1: Does the FX1N-40MC come with a warranty, and what does it cover?
Yes. Every FX1N-40MC unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. All units undergo functional testing — including I/O point verification, communication port check, and program write/read validation — prior to shipment. Warranty claims are supported by our technical team via email and phone.

Q2: How do you verify compatibility with my existing MELSEC FX1N system?
The FX1N-40MC is a standard MELSEC FX1N series main unit and is fully compatible with all genuine FX1N expansion modules (EX/EY I/O, AD/DA analog, BD communication boards) and FX1N-series special function modules. It is programmable with GX Developer (version 8.0 or later) and GX Works2. If you have a specific system configuration or firmware version requirement, contact our technical team with your existing system details for pre-sale compatibility confirmation.

Q3: What is your lead time and shipping process for the FX1N-40MC?
In-stock units are typically dispatched within 1–3 business days from our Xiamen, China warehouse. We ship globally via DHL Express, FedEx International, and UPS, with full tracking provided. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for all international shipments. For urgent requirements or large-quantity orders, please contact us directly to confirm availability and arrange priority dispatch.

Q4: Can the FX1N-40MC be used as a direct replacement for a failed unit in a running production line?
Yes. The FX1N-40MC is a drop-in replacement for any existing FX1N-40MC installation. Program backup from the original unit (if accessible) can be restored directly via GX Developer or GX Works2. If the original program is lost, our technical team can assist with program reconstruction based on system documentation. We maintain ongoing stock of FX1N series main units and expansion modules to support emergency replacement requirements with minimal production downtime.
