Mitsubishi FX0N-8EYT Replacement Upgrade Solution for FX0N Series

Product Overview

Mitsubishi FX0N-8EYT Replacement Upgrade Solution for FX0N Series: Seamless Transition from Legacy FX0N Systems

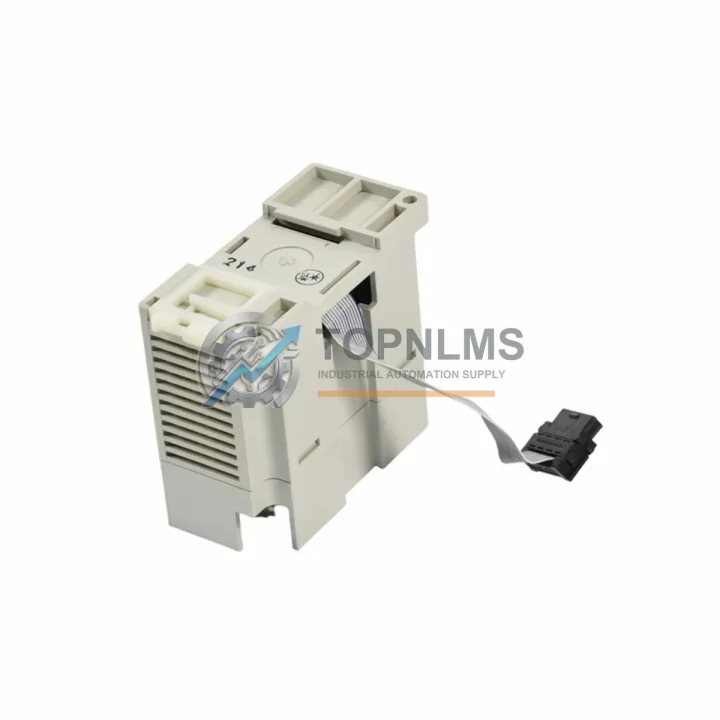

The Mitsubishi FX0N-8EYT is an 8-point transistor output expansion module designed for the FX0N Series programmable logic controller platform. As Mitsubishi Electric has progressively phased out the FX0N product line in favor of the FX3U, FX5U, and iQ-F Series, many industrial facilities operating legacy FX0N-based control panels now face the critical challenge of sourcing reliable replacement units or planning a structured migration to a modern PLC architecture. TOPNLMS supplies verified FX0N-8EYT modules to support both immediate spare-part needs and long-term system modernization projects.

The FX0N-8EYT provides 8 transistor (NPN sink) output points, operating at 5–30 VDC with a maximum load current of 0.5 A per point and 0.8 A per common. It connects to the FX0N base unit via the dedicated expansion bus connector, requiring no additional wiring harness or communication configuration. The module draws its logic power directly from the host CPU unit, making it a compact and self-contained addition to any FX0N control cabinet. Its DIN-rail mounting profile and fixed terminal block layout are identical to the FX0N-8EX input expansion module and the FX0N-8ER relay output module, allowing engineers to swap modules within the same physical footprint without modifying the control panel enclosure or terminal wiring.

For facilities currently running FX0N-30MR, FX0N-40MR, or FX0N-60MR base units, the FX0N-8EYT is the correct transistor output expansion to extend the I/O count for servo drive enable signals, solenoid valve control, conveyor motor start/stop commands, and high-speed pulse output applications. The transistor output type is particularly important when interfacing with servo amplifiers such as the Mitsubishi MR-J2S or MR-J4 Series, where relay contact bounce would cause positioning errors. Engineers migrating from relay output configurations should verify that their load circuits are compatible with NPN open-collector transistor outputs before substituting the FX0N-8EYT for an FX0N-8ER.

When planning a full system migration from the FX0N platform to the FX3U or FX5U Series, the FX0N-8EYT can serve as a bridge component during phased cutover. The FX3U-32MT/ES and FX5U-32MT/ES base units offer native transistor output points that replicate the FX0N-8EYT function, and the GX Works2 or GX Works3 programming environment supports project conversion from FX0N ladder programs with minimal manual rework. During the transition period, maintaining a stock of FX0N-8EYT modules ensures that the legacy system remains operational while the new control architecture is commissioned in parallel. The FX0N-8EYT wiring terminals are compatible with the same 0.3–0.75 mm² wire gauges used throughout the FX0N expansion bus, so no rewiring of field devices is required when replacing a failed module on an active production line.

For multi-axis motion control panels that also incorporate the FX0N-1PG pulse generator module or the FX0N-3A analog I/O module, the FX0N-8EYT can be installed in any expansion slot position without affecting the addressing of other expansion modules. The FX0N expansion bus supports up to 128 I/O points across all connected expansion modules, and the FX0N-8EYT occupies 8 output points in the Y-device address space, beginning at the next available Y address after the base unit built-in outputs. This addressing behavior is preserved when the module is replaced with a new FX0N-8EYT unit, requiring no program modification to the existing ladder logic.

Communication protocol compatibility is a key consideration for facilities integrating FX0N-based systems into broader SCADA or DCS architectures. The FX0N CPU communicates via RS-422 using the FX0N-232ADP or FX0N-485ADP communication adapters, and the FX0N-8EYT output status is fully accessible through the host CPU device memory, making it readable by any SCADA system polling the PLC via Mitsubishi MC Protocol (MELSEC Communication Protocol). When migrating to an FX3U or FX5U platform, the same MC Protocol can be retained, ensuring that existing SCADA configurations require only an IP address or COM port update rather than a full protocol reconfiguration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FX0N-8EYT replacement or system migration typically involves coordinating several interdependent components within the same control cabinet. The FX0N-8EYT connects directly to the FX0N-30MR, FX0N-40MR, or FX0N-60MR base unit via the expansion bus, and the base unit power supply must be verified to support the additional current draw of the expansion module — typically 65 mA at 5 VDC from the internal bus. If the existing power budget is marginal, an external 24 VDC DIN-rail power supply should be evaluated before adding further expansion modules.

For facilities upgrading to the FX3U platform, the FX3U-32MT/ES or FX3U-64MT/ES base unit provides a direct functional equivalent to the combined FX0N CPU and FX0N-8EYT expansion, consolidating I/O into a single unit and eliminating the expansion bus connector as a potential failure point. The FX3U-8EYT/ESS expansion module can be added if additional transistor output points are required beyond the base unit built-in I/O. Programming the FX3U requires GX Works2 or GX Works3, and existing FX0N programs created in GX Developer can be imported and converted with the built-in project conversion wizard, preserving device addresses and ladder logic structure.

Communication infrastructure upgrades often accompany a PLC platform migration. The FX0N-232ADP or FX0N-485ADP serial communication adapters used with the FX0N CPU are not compatible with the FX3U expansion bus, and the FX3U-232-BD or FX3U-485-BD communication boards must be installed in the FX3U base unit to maintain RS-232 or RS-485 connectivity to HMI panels, barcode readers, or SCADA gateways. For facilities requiring Ethernet connectivity, the FX3U-ENET-ADP Ethernet adapter provides MC Protocol over TCP/IP, enabling direct integration with GOT2000 Series HMI panels such as the GT2107 or GT2310 without a dedicated communication gateway.

Field wiring connected to the FX0N-8EYT output terminals can typically be reused without modification when replacing a failed module, as the terminal block layout and screw pitch are standardized across the FX0N expansion module family. However, when migrating to the FX3U-8EYT/ESS, engineers should note that the spring-clamp terminal block on the FX3U expansion module requires a flat-blade screwdriver for wire insertion rather than the screw-type terminals on the FX0N-8EYT. Signal isolation requirements should also be reviewed: if the field devices connected to the FX0N-8EYT outputs operate at voltages or in environments that could introduce ground loops, a DIN-rail signal isolator or optocoupler relay module should be inserted between the PLC output and the field device to protect the new module during commissioning.

Retrofit Guidance FAQ

Q: Can I replace a failed FX0N-8EYT without modifying the existing ladder program?
A: Yes. The FX0N-8EYT is a direct drop-in replacement. The Y-device addresses assigned to the module output points are determined by the module position in the expansion bus chain, not by any configuration stored in the module itself. Replacing the module with a new FX0N-8EYT unit restores full functionality without any program changes in GX Developer.

Q: Is the FX0N-8EYT compatible with the FX1N or FX2N base units?
A: No. The FX0N expansion bus connector is specific to the FX0N Series. The FX1N and FX2N Series use a different expansion bus architecture and require their own expansion modules (FX1N-8EYT or FX2N-8EYT respectively). Physically, the connectors are not interchangeable.

Q: What is the maximum number of FX0N-8EYT modules that can be connected to a single FX0N base unit?
A: The FX0N Series supports a maximum of 128 I/O points across all expansion modules. With an FX0N-60MR base unit providing 60 built-in I/O points, up to 68 additional I/O points can be added via expansion modules. This allows for up to 8 FX0N-8EYT modules (64 output points) in combination with other expansion modules, subject to the total I/O limit and the base unit internal power supply capacity.

Q: How do I verify that the FX0N-8EYT transistor outputs are compatible with my servo amplifier input signals?
A: The FX0N-8EYT provides NPN open-collector transistor outputs with a maximum sink current of 0.5 A per point. Most Mitsubishi servo amplifiers in the MR-J2S and MR-J4 Series accept NPN input signals for enable, forward run, and reverse run commands. Verify the servo amplifier input circuit specifications in its hardware manual and confirm that the input voltage and current requirements fall within the FX0N-8EYT output ratings before connecting.

Q: Can the FX0N-8EYT be used for high-speed pulse output to control a stepper motor driver?
A: The FX0N-8EYT is a standard output expansion module and does not support high-speed pulse output. High-speed pulse output on the FX0N platform is provided by the FX0N-1PG pulse generator module, which connects to the expansion bus and provides a dedicated pulse train output for stepper or servo positioning. The FX0N-8EYT outputs are suitable for on/off control signals but not for pulse-width-modulated or high-frequency pulse applications.

Warranty Assurance

Every FX0N-8EYT module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional verification process that includes power-on testing, output point continuity checks, and expansion bus connector inspection. Units that do not pass the outgoing quality check are quarantined and not shipped.

If a module is found to be defective on arrival or fails within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement shipment at no additional cost. Our after-sales response target is one business day for warranty claims submitted by email to [email protected], with replacement units typically dispatched within 2–3 business days from our Xiamen warehouse. Expedited shipping options are available for customers with urgent production line requirements.

Warranty coverage applies to manufacturing defects and component failures under specified operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, reverse polarity connection, or physical impact. Customers are encouraged to retain the original packaging and test the module in a controlled environment before installation in a live production system.

TOPNLMS maintains a standing inventory of FX0N Series expansion modules to support both immediate replacement needs and planned maintenance schedules. Bulk purchase pricing and consignment stock arrangements are available for OEM customers and system integrators managing multiple FX0N-based installations. Contact our sales team to discuss inventory reservation and priority fulfillment agreements.
