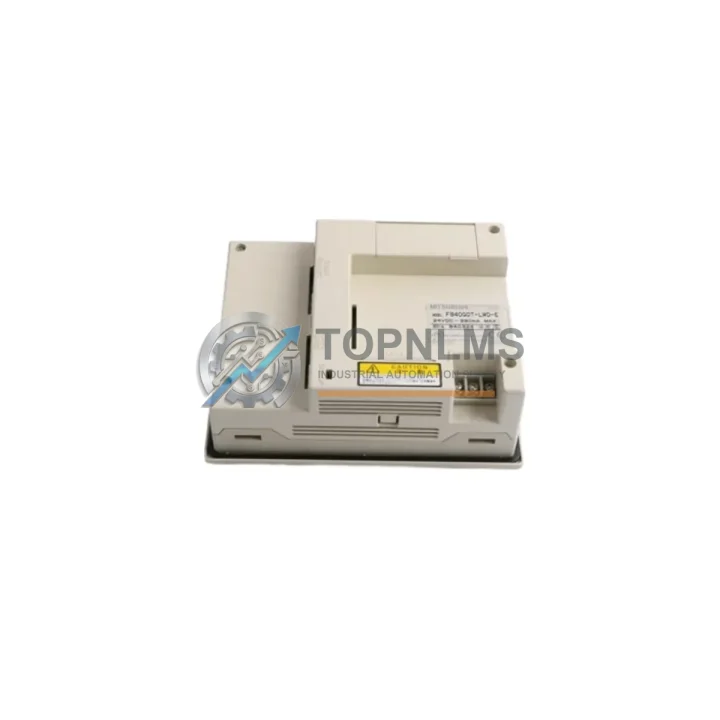

Mitsubishi F940GOT-LWD-E Original Industrial Spare GOT900

Product Overview

Mitsubishi F940GOT-LWD-E Original Industrial Spare GOT900: System Stability & Maintenance Value

The Mitsubishi F940GOT-LWD-E is an original GOT900 Series Graphic Operation Terminal engineered for demanding industrial environments. As a 9.5-inch STN LCD touch-panel HMI, it serves as the primary operator interface in MELSEC PLC-based control systems across automotive assembly lines, food processing facilities, water treatment plants, and discrete manufacturing cells. When this unit fails or degrades, the entire production line loses its human-machine interface — operators cannot monitor process variables, acknowledge alarms, or execute manual overrides. Stocking a verified original spare eliminates that single point of failure and restores full operational visibility within minutes rather than days.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled HMI replacement program for the F940GOT-LWD-E should be embedded within a broader control-cabinet inspection cycle. During any planned shutdown where this terminal is serviced, maintenance engineers should simultaneously audit the health of the surrounding system components to prevent cascading failures after restart.

Begin with the MELSEC FX3U or A-Series CPU module that the GOT900 communicates with — verify firmware version, battery voltage on the CPU’s backup battery, and program integrity. A degraded CPU battery is one of the most common causes of unexpected program loss following a power interruption. Next, inspect the RS-232C or RS-422 communication cable connecting the HMI to the PLC; aged shielding and loose D-sub connectors are frequent sources of intermittent communication faults that are often misdiagnosed as HMI failures.

The 24 V DC power supply module feeding the GOT900 deserves close attention: measure output voltage under load and check for ripple. A power supply operating near its rated current limit will cause the HMI to reset randomly, shortening backlight and touch-panel life. If the cabinet also houses MELSEC I/O expansion modules (such as FX2N-8EX or FX2N-8EYR), verify that all terminal screws are torqued correctly and that no input or output channels show abnormal leakage current.

For cabinets running mixed analog and digital signals, inspect any installed signal isolators or analog input modules (e.g., FX2N-4AD or FX2N-2DA) for drift or offset errors — these faults often surface as erratic process readings on the HMI screen and are mistakenly attributed to the display unit itself. Relay output modules in the same rack should be checked for contact wear, especially on high-cycle outputs controlling solenoid valves or motor starters.

While the cabinet door is open, inspect the terminal blocks and DIN-rail mounted fuse modules for discoloration, corrosion, or loose wiring. A single loose 24 V common terminal can cause the entire HMI and I/O subsystem to behave erratically. If the system uses a MELSEC communication module such as the FX3U-485ADP-MB for Modbus connectivity or the FX3U-ENET for Ethernet, verify link status LEDs and check for excessive error counts in the module diagnostics.

Finally, if the facility operates multiple GOT900 terminals across different lines, consider maintaining a standardized spare-parts kit that includes at minimum: one F940GOT-LWD-E HMI, one compatible CPU backup battery, one RS-422 communication cable, and one 24 V DC power supply of appropriate rating. This kit approach reduces mean-time-to-repair (MTTR) from hours to under 30 minutes and is the single most cost-effective investment in line availability for aging MELSEC-based systems.

Strategic Replacement Solutions

The F940GOT-LWD-E was designed for long-service-life industrial deployment, but GOT900 Series units installed in the late 1990s and 2000s are now approaching or exceeding their rated backlight and touch-panel service hours. Rather than waiting for a complete display failure during production, a proactive replacement strategy delivers measurable ROI: planned downtime of 30–60 minutes versus unplanned downtime that can extend to 24–72 hours while a replacement unit is sourced through emergency channels.

This original spare maintains full protocol and screen-data compatibility with existing GOT900 project files created in GT Designer, eliminating the need for HMI program migration or operator retraining. For facilities that have already migrated some lines to the GOT2000 or GOT1000 Series, maintaining a small stock of F940GOT-LWD-E units ensures that legacy lines — often running stable, validated processes — can continue operating without forcing a premature and costly control-system upgrade.

Each unit supplied by TOPNLMS undergoes functional testing prior to shipment, covering display uniformity, touch-panel calibration, communication port continuity, and power-on self-test. Units are shipped in anti-static packaging with protective foam inserts. Standard lead time is 3–7 business days for in-stock units, with expedited options available for critical maintenance situations.

Support FAQ

Q1: Is this an original Mitsubishi F940GOT-LWD-E or a compatible replacement?
This is an original Mitsubishi Electric F940GOT-LWD-E unit. All units are sourced through verified industrial supply channels and are not counterfeit, refurbished-without-disclosure, or third-party compatible substitutes. Each unit carries a 12-month warranty from the date of shipment.

Q2: Will my existing GOT900 project files work without modification?
Yes. The F940GOT-LWD-E is a direct same-model replacement. Project files created in GT Designer for the GOT-F900 Series are fully compatible. No screen data migration or protocol reconfiguration is required when replacing a like-for-like unit.

Q3: What pre-shipment testing is performed?
Every unit is powered on and subjected to a functional verification routine covering LCD display quality, touch-panel response across the full active area, RS-232C and RS-422 port continuity, and 24 V DC power input stability. A test report summary is available upon request for quality-assurance documentation purposes.

Q4: How should I manage spare inventory for a multi-line facility running GOT900 HMIs?
For facilities with 5 or more GOT900 terminals, we recommend maintaining a minimum of one spare F940GOT-LWD-E per 5–8 installed units, reviewed annually. Pair this with a scheduled inspection cycle (every 12–18 months) covering backlight brightness, touch-panel calibration drift, and communication error logs. This approach typically reduces HMI-related unplanned downtime by 60–80% compared to a reactive-only spare strategy.
