Mitsubishi F1-60MR-001 Replacement for MELSEC-F1

Product Overview

Mitsubishi F1-60MR-001 Replacement for MELSEC-F1: Seamless Transition to Modern Control

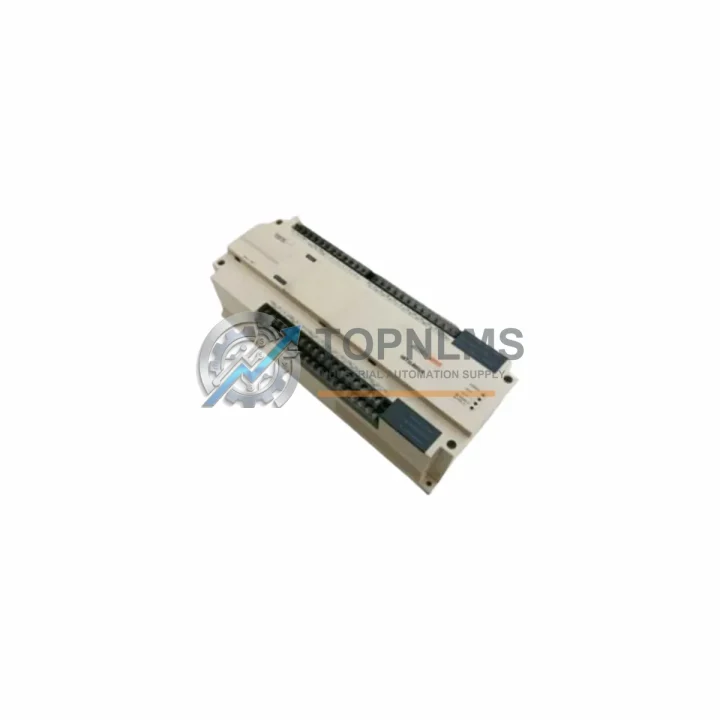

The Mitsubishi Electric F1-60MR-001 is a 60-point relay output base unit from the legacy MELSEC-F1 Series — a platform that powered countless manufacturing lines, conveyor systems, packaging machines, and process control panels across Asia and globally throughout the 1980s and 1990s. As original F1-60MR-001 units reach end-of-service life and spare parts become increasingly scarce, plant engineers and maintenance teams face a critical decision: source a verified replacement unit or plan a structured migration to a compatible modern controller.

TOPNLMS supplies tested, ready-to-ship F1-60MR-001 replacement units with full functional verification, 12-month warranty coverage, and technical support for both direct swap-in and system migration scenarios. Whether your goal is to restore a failed machine with zero program changes or to modernize your control architecture with minimal downtime, this page provides the technical guidance and procurement assurance you need.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful F1-60MR-001 replacement or migration rarely involves the base unit alone. In most field scenarios, the surrounding system components must be evaluated and, in some cases, replaced or adapted in parallel to ensure a reliable, production-ready result.

For sites performing a direct swap of the F1-60MR-001, the existing wiring harness and screw terminal blocks can typically be reused without modification, provided the terminal layout matches. The F1-232ADP RS-232C communication adapter, if installed, remains compatible with the replacement unit and does not need to be changed. Programming can be re-uploaded using the original SC-09 programming cable connected to GX Developer or the legacy F1 Programmer software, eliminating the need for any ladder logic conversion.

For sites planning a structured migration to the FX3U or FX5U platform, the process involves several coordinated steps. The FX3U-64MR/ES base unit provides the closest I/O point match to the F1-60MR-001 and supports relay output, making it the preferred migration target for applications with inductive loads. Where Ethernet connectivity or high-speed processing is required, the FX5U-64MR/ES offers a modern architecture with built-in Ethernet and USB programming port, eliminating the need for a separate FX3U-ENET communication module in many cases.

Terminal wiring adaptation is a key step in any FX-series migration. The FX3U-CNV-BD function board and compatible terminal block adapters allow engineers to reuse existing cable assemblies where pin assignments are compatible, significantly reducing rewiring labor. For I/O expansion beyond the base unit’s 64 points, FX3U-16EX input expansion modules and FX3U-16EYR relay output expansion modules can be added to the right side of the FX3U base unit using the standard extension bus.

Power supply integrity is critical during migration. If the existing control cabinet uses a dedicated 24 VDC rail for sensor power, the FX3U-1PSU-5V power supply unit or an equivalent DIN-rail mounted SMPS should be verified against the new system’s current draw. For cabinets with tight space constraints, the compact form factor of the FX5U series may require a panel layout review before installation.

Communication continuity is another common concern. Sites using the F1-60MR-001 with upstream SCADA or HMI systems via RS-232C will need to evaluate whether the existing GOT1000 series HMI or third-party operator panel supports the FX3U/FX5U communication protocol. In most cases, the GOT2000 series HMI with GT Works3 configuration provides a direct upgrade path with minimal protocol reconfiguration. For sites retaining legacy RS-232C SCADA connections, the FX3U-232-BD RS-232C function board provides backward-compatible serial communication on the FX3U platform.

Signal isolation is recommended for any I/O channel connected to field devices with long cable runs or high electrical noise environments. Signal isolators (4–20 mA or discrete) installed between the PLC input terminals and field sensors protect the replacement unit from transient damage and improve long-term reliability — a best practice that applies equally to direct swap and migration scenarios.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring when replacing the F1-60MR-001 with a new unit of the same model?
A: Yes. A verified F1-60MR-001 replacement unit uses the same screw terminal layout and I/O assignment as the original. No rewiring is required for a direct swap. Confirm terminal torque specifications (typically 0.5–0.8 N·m for M3 screws) before reconnecting.

Q: Do I need to convert my ladder program if I migrate to FX3U or FX5U?
A: Yes, a program conversion is required. GX Works3 includes a migration tool that can import GX Developer projects and assist with instruction mapping. F1-series mnemonics differ from FX-series in some areas; a qualified engineer should review timer, counter, and special relay assignments before commissioning.

Q: Is the F1-60MR-001 compatible with MELSEC-F1 expansion I/O modules?
A: Yes. The F1-60MR-001 supports F1-series extension units via the right-side extension bus. If your system uses F1-16EX or F1-16EYR expansion modules, these will continue to function with a direct replacement unit. Note that F1-series expansion modules are not compatible with FX3U or FX5U base units.

Q: What programming cable do I need for the F1-60MR-001?
A: The SC-09 RS-232C programming cable is the standard interface for F1-series PLCs. Connect to the programming port on the front of the base unit and use GX Developer or the legacy F1 Programmer software. For FX3U/FX5U migration, the USB-SC09-FX cable is recommended.

Q: How do I handle communication protocol differences when migrating from F1 to FX5U?
A: The F1-60MR-001 uses a proprietary RS-232C protocol for HMI and SCADA communication. The FX5U supports SLMP (Seamless Message Protocol), MC Protocol, and Modbus TCP/RTU natively. Your HMI or SCADA system must be reconfigured to use one of these protocols. Consult your HMI vendor for driver compatibility before committing to the migration path.

Q: Will the F1-60MR-001 fit in my existing control cabinet without modification?
A: A direct replacement unit has the same physical dimensions as the original F1-60MR-001 and requires no cabinet modification. For FX3U or FX5U migration, verify the new unit’s depth and DIN rail requirements against your cabinet’s available space before ordering.

Warranty Assurance

Every F1-60MR-001 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional test including power-on verification, I/O point cycling, relay output load testing, and communication port check. Units that do not pass all test criteria are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the fault assessment. Our after-sales response target is within 24 hours of claim submission. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize your production downtime.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices upon request. Bulk orders and long-term supply agreements are available for MRO and system integrator customers.
