Mitsubishi F1-20MR Replacement/Upgrade Solution for MELSEC-F1

Product Overview

Mitsubishi F1-20MR Replacement/Upgrade Solution for MELSEC-F1: Smooth Transition from Legacy PLC Systems

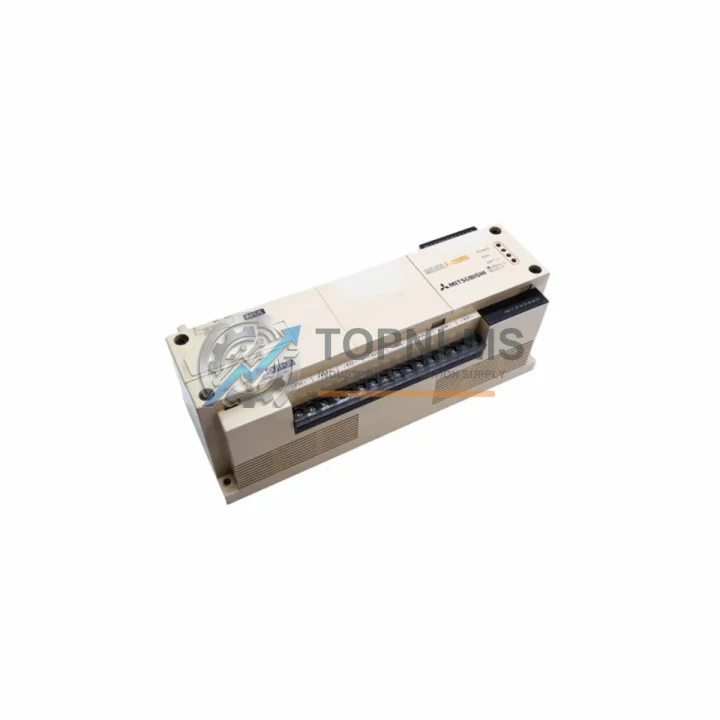

The Mitsubishi Electric F1-20MR is a 20-point relay output programmable logic controller from the classic MELSEC-F1 Series — a platform that powered countless industrial automation systems across manufacturing, packaging, material handling, and process control applications throughout the 1980s and 1990s. As the F1-20MR reaches end-of-life and spare parts become increasingly scarce, plant engineers and maintenance teams face a critical decision: how to replace or upgrade this controller with minimal disruption to existing wiring, programming, and system architecture.

At TOPNLMS, we specialize in sourcing, testing, and supplying verified replacement units for discontinued Mitsubishi PLC hardware. Whether you need a direct drop-in F1-20MR replacement to restore a failed system, or you are planning a structured migration to a modern MELSEC platform, our team provides the technical guidance and hardware support to make the transition seamless.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful F1-20MR replacement or system migration involves more than swapping the CPU unit. Depending on your existing control cabinet layout and system architecture, the following components are commonly required during the upgrade process.

If your existing panel uses the F1-20MR alongside expansion I/O units such as the F1-8EX (8-point input expansion) or F1-8EYR (8-point relay output expansion), these modules must be evaluated for compatibility with the replacement controller. In many retrofit projects, engineers opt to consolidate I/O into a modern FX3G-60MR/ES or FX3U-32MR/ES base unit, which offers significantly expanded I/O capacity within a similar DIN rail footprint.

Communication continuity is a frequent concern. The F1-20MR uses an RS-422 serial port for programming and HMI connectivity. When migrating to an FX-series controller, the FX-232AW RS-232/RS-422 converter or the FX3U-232-BD communication board allows existing SCADA or HMI connections — including legacy F920GOT or A970GOT graphic terminals — to remain operational during the transition period, reducing the need for simultaneous HMI replacement.

Power supply integrity is equally important. Many F1-20MR installations share a 24V DC auxiliary rail with field sensors and solenoids. Verifying that the replacement unit’s internal power supply can sustain the same sensor load — or supplementing with a dedicated S8VS-06024 or equivalent 24V DIN rail power supply — prevents nuisance trips during commissioning. If the control cabinet includes a F1-30MR or F1-40MR in an adjacent panel, those units should be assessed for simultaneous replacement to standardize the platform.

For sites running networked F1-series controllers via F-NET or proprietary serial links, migration to MELSEC FX3U with FX3U-485-BD or FX3U-ENET-ADP Ethernet adapter enables integration into modern Modbus RTU or TCP/IP SCADA architectures without rewiring field instrumentation. Signal isolators such as the MTL5041 or equivalent DIN rail isolators may be required where legacy 4–20mA loops interface with new digital I/O modules.

Terminal block wiring in F1-20MR panels typically uses M3 screw terminals with 0.75–1.5mm² conductors. These are fully reusable with FX-series replacement units, which share the same terminal pitch and screw size, significantly reducing rewiring labor during the retrofit.

Retrofit Guidance FAQ

Q: Can I reuse my existing F1-20MR ladder program on a replacement unit?
A: If replacing with an original F1-20MR OEM unit, the program transfers directly via the F1-PGM-E handheld programmer or MEDOC software. For cross-series migration to FX1S or FX3G, the ladder logic must be reviewed and converted using GX Developer or GX Works2, as instruction mnemonics and special relay addresses differ between F1 and FX series.

Q: Is the wiring terminal layout identical between F1-20MR and FX1S-20MR-001?
A: The terminal numbering and physical layout differ slightly. A wiring comparison chart should be prepared before installation. Input commons and output relay commons are arranged differently, and the FX1S uses a single 24V DC input common versus the F1-20MR’s AC input configuration on some variants.

Q: What communication cable do I need to program the replacement unit?
A: For original F1-20MR units, the SC-09 RS-422 programming cable is required. For FX-series replacements, the USB-SC09-FX USB-to-RS422 cable is the standard programming interface compatible with GX Works2.

Q: Will the replacement unit fit in the existing control cabinet cutout?
A: The F1-20MR has a compact DIN rail body. FX1S-20MR-001 has a similar width but slightly different depth. Panel cutout modifications are generally not required for DIN rail installations, but door-mounted units may need bracket adjustment.

Q: How do I handle the transition if the system cannot be taken offline for extended periods?
A: We recommend pre-programming and bench-testing the replacement unit before the scheduled maintenance window. TOPNLMS can supply tested units with verified I/O function checks, reducing on-site commissioning time to under two hours for standard F1-20MR replacement scenarios.

Warranty Assurance

Every F1-20MR unit supplied by TOPNLMS undergoes a pre-shipment functional inspection covering power-on verification, I/O point continuity, relay output switching test, and communication port integrity check. Units are shipped in anti-static packaging with individual test records.

All units carry a 12-month warranty from the date of shipment. In the event of a confirmed hardware defect within the warranty period, TOPNLMS will arrange a replacement unit dispatch within 3 business days. Our after-sales team responds to technical inquiries within 24 hours on business days.

We maintain buffer stock of F1-20MR and related MELSEC-F1 components to support urgent breakdown replacement scenarios. Express shipping from our Xiamen warehouse is available to most destinations in Asia, Europe, and the Americas, with typical transit times of 3–7 business days via DHL or FedEx.

For volume procurement, OEM sourcing inquiries, or multi-unit retrofit project support, please contact our technical sales team directly.
