Mitsubishi Electric S-N25 Original Industrial Spare S-N Series Compatible

Product Overview

Mitsubishi Electric S-N25 Original Industrial Spare S-N Series Compatible: System Stability & Industrial Spare Maintenance Value

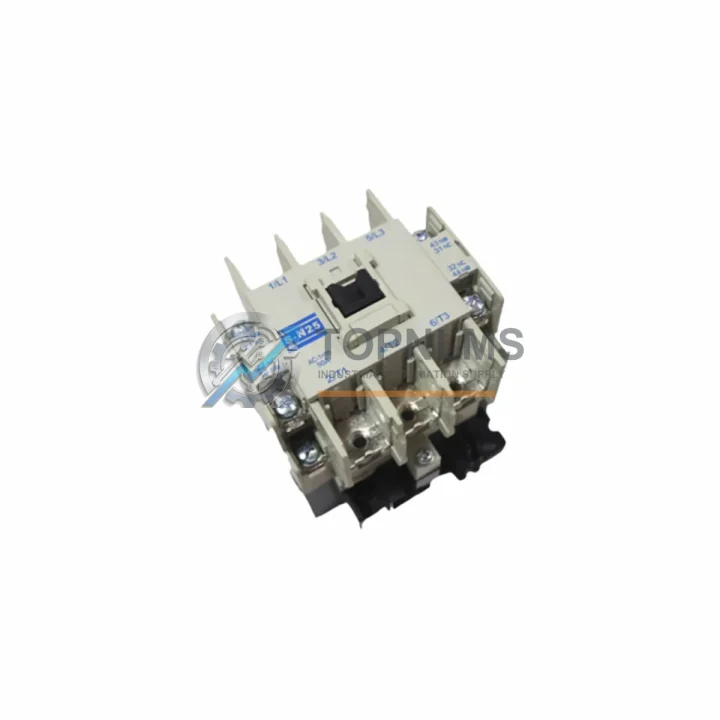

The Mitsubishi Electric S-N25 is a 25A, 3-pole AC magnetic contactor from the renowned S-N Series lineup — one of the most widely deployed contactor families in Asian and global industrial automation environments. Whether you are managing a scheduled shutdown, responding to an unplanned trip, or building a proactive spare parts inventory for a legacy control system, the S-N25 represents a critical node in your electrical distribution and motor control architecture. Sourced as an original Mitsubishi Electric component, this unit is tested, verified, and shipped with a 12-month warranty, giving procurement engineers and maintenance teams the confidence to act decisively.

In factory environments where motor starters, pump control panels, conveyor drive cabinets, and HVAC control systems rely on contactors operating thousands of cycles per year, the S-N25 is frequently the first component to show wear. Coil burnout, contact erosion, and mechanical fatigue are the leading failure modes. Having a verified original spare on the shelf eliminates the most dangerous variable in any maintenance scenario: lead time. A single unplanned downtime event caused by a failed contactor can cost far more than a full year’s worth of spare parts inventory.

Critical Technical Specs Table

Preventive Maintenance Strategy

A contactor does not fail in isolation. The S-N25 sits within a broader motor control circuit, and experienced maintenance engineers know that when a contactor shows signs of wear — audible chattering, contact pitting, coil overheating, or intermittent dropout — the surrounding components deserve equal scrutiny. A comprehensive inspection and replacement plan should extend to the following areas:

Overload Relay (TH-N Series): The S-N25 is typically paired with a Mitsubishi TH-N20 or TH-N25 thermal overload relay. If the contactor has been subjected to repeated overload trips, the bimetal strips in the overload relay may have drifted from their calibrated setpoint. Replace or recalibrate the overload relay at the same time as the contactor to restore accurate motor protection.

Control Power Supply Module: The coil of the S-N25 is energized by the control circuit. If your panel uses a dedicated 24VDC or 110VAC control power supply, verify output voltage stability under load. A sagging control supply is a common root cause of contactor chatter and premature coil failure — replacing the contactor without addressing the supply will result in repeat failures.

Auxiliary Contact Blocks: The standard S-N25 ships with 1NO+1NC auxiliary contacts. In interlocking circuits, reversing starters, or PLC feedback loops, additional auxiliary contact blocks such as the S-N Series add-on contact blocks may be installed. Inspect these for contact resistance and mechanical integrity during the same maintenance window.

Control Wiring and Terminal Blocks: Loose or corroded terminal connections at the coil terminals (A1/A2) and main power terminals (L1/L2/L3, T1/T2/T3) are a frequent source of intermittent faults. Inspect and re-torque all terminal screws. If your panel uses Phoenix Contact or Weidmüller terminal blocks, check for discoloration or heat damage indicating sustained overcurrent.

Surge Suppressor / RC Snubber: AC coil contactors generate voltage spikes upon de-energization. If a surge suppressor or RC snubber is not installed across the coil terminals, nearby PLC digital output modules and relay modules may experience accelerated degradation. This is especially relevant in panels where a Mitsubishi MELSEC Q-Series or iQ-R Series PLC output card directly drives the contactor coil.

Fuse Modules and Circuit Breakers: Upstream protection for the S-N25 circuit should include properly rated motor branch circuit fuses or a Mitsubishi NF-Series MCCB. Verify that fuse ratings have not been upsized informally over time — a common field workaround that eliminates the protection the fuse was designed to provide.

PLC I/O Modules: If the S-N25 is controlled by a PLC digital output, inspect the corresponding DO module (e.g., Mitsubishi QY40P or RY40NT5P) for output transistor degradation. A failing output channel may deliver insufficient drive current to hold the contactor coil reliably, causing intermittent dropout under thermal load.

Addressing these components during a planned maintenance window — rather than waiting for individual failures — is the foundation of a cost-effective preventive maintenance program. Stocking the S-N25 alongside its companion components reduces the number of emergency procurement events and shortens mean time to repair (MTTR) across your facility.

Strategic Replacement Solutions

The Mitsubishi Electric S-N25 has been in production for decades and remains the standard replacement for earlier S-N Series variants deployed in legacy motor control centers, pump stations, compressor panels, and production line starters. Its dimensional and electrical compatibility with existing panel cutouts, busbar arrangements, and DIN rail mounting means zero re-engineering is required for a like-for-like swap.

For facilities managing aging infrastructure where original documentation may be incomplete, the S-N25’s IEC AC-3 rating at 25A / 11kW (380V) provides a clear engineering reference point. Maintenance teams can cross-reference this against the motor nameplate data to confirm suitability without requiring the original panel drawings.

In multi-motor systems where several contactors of the same rating are installed — such as in cooling tower fan arrays, conveyor drive groups, or multi-pump booster stations — we recommend procuring a minimum of two S-N25 units per maintenance cycle. This ensures that a second failure, which statistically occurs within the same operating period due to shared environmental stressors, can be resolved without a second procurement delay.

For facilities transitioning from older S-K Series or S-T Series Mitsubishi contactors, the S-N25 provides a forward-compatible upgrade path with improved contact materials and longer mechanical life, while maintaining the same panel footprint in most configurations. This makes it an ideal choice for partial panel refurbishments where full replacement of the control cabinet is not yet budgeted.

All units shipped from TOPNLMS are inspected prior to dispatch, include original manufacturer packaging where available, and are covered by a 12-month warranty from the date of shipment. Expedited shipping options are available for urgent maintenance requirements.

Support FAQ

Q1: How do I verify that the S-N25 is compatible with my existing panel before installation?
Confirm the following: (1) rated current matches your motor branch circuit — the S-N25 is rated 25A AC-3, suitable for up to 11kW at 380V; (2) coil voltage matches your control circuit — specify AC 100V, 200V, 220V, or 380V at time of order; (3) mounting configuration — DIN rail or screw mount — matches your panel layout. If you have the original panel drawings or the nameplate of the contactor being replaced, our technical team can confirm compatibility before shipment.

Q2: What is included in the 12-month warranty, and what does it cover?
The 12-month warranty covers manufacturing defects, coil failure under normal operating conditions, and contact assembly defects. It does not cover damage resulting from installation errors, voltage surges beyond rated insulation voltage, or operation outside the specified temperature range. Warranty claims are processed with photographic evidence of the defect and the original order reference. Replacement units are dispatched upon claim approval.

Q3: Can I stock the S-N25 long-term, and what are the storage requirements?
Yes. The S-N25 is suitable for long-term storage in a controlled environment: temperature 0°C to +40°C, relative humidity below 85% non-condensing, away from corrosive gases and direct sunlight. Original packaging provides adequate protection for storage periods of up to 3 years. For facilities with annual maintenance cycles, we recommend reviewing stock levels every 12 months and replenishing based on observed failure rates and system criticality.

Q4: What pre-shipment testing is performed on each unit?
Each S-N25 unit undergoes coil continuity verification, contact resistance measurement, and mechanical operation check prior to dispatch. Units that do not meet Mitsubishi Electric’s published specifications are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.
