Mitsubishi A68B Ruggedized 8-Slot Base Unit for Harsh Environments

Product Overview

Mitsubishi A68B Ruggedized 8-Slot Base Unit for Harsh Environments

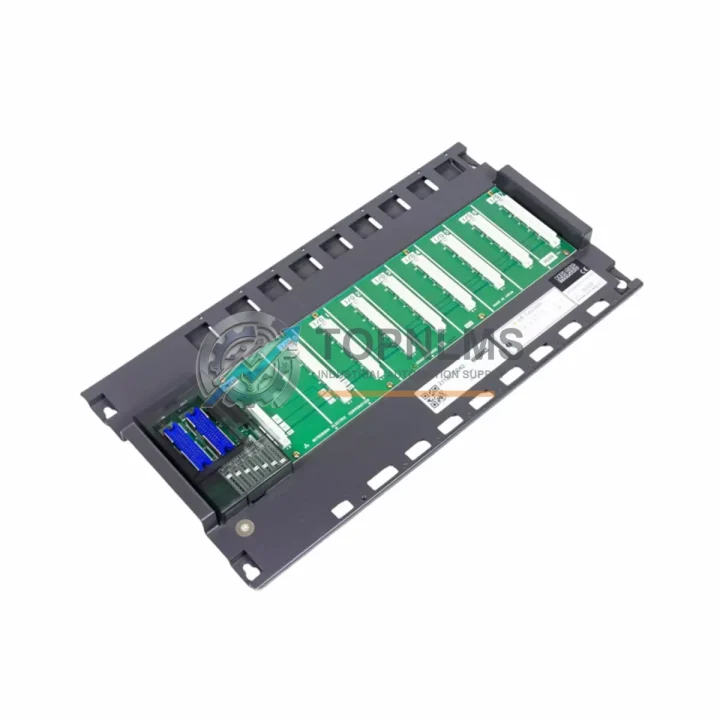

The Mitsubishi Electric A68B is an 8-slot backplane rack engineered for the MELSEC-A Series programmable logic controller platform — one of Mitsubishi Electric’s most proven and widely deployed control architectures in heavy industry. Designed to anchor mission-critical control cabinets in environments where temperature extremes, mechanical vibration, electromagnetic interference, and airborne contaminants are daily realities, the A68B delivers the structural and electrical foundation that keeps automation systems running without interruption.

In continuous production lines, oil and gas processing facilities, mining operations, and metallurgical plants, the base unit is the backbone of the entire PLC rack. The A68B accommodates up to eight I/O or function modules — including CPU modules such as the A3CPU and A2UCPU, analog I/O modules, high-speed counter modules, and network interface cards — while maintaining stable backplane bus communication even under sustained vibration loads and wide ambient temperature swings. Its robust mechanical construction and gold-plated bus connectors resist oxidation and contact degradation in high-humidity and chemically aggressive atmospheres.

For facilities operating MELSEC-A architecture, the A68B is the standard 8-slot chassis that pairs directly with the A61P and A62P power supply modules, ensuring regulated, noise-filtered DC power delivery to every installed module. When combined with the A1SJ71QBR11 MELSECNET/B remote I/O master module or the A1SJ71UC24-R4 serial communication module, the A68B-based rack becomes a fully networked node capable of peer-to-peer data exchange across plant-wide control networks — critical for distributed control in water treatment, power generation, and chemical processing plants.

The A68B is equally at home in safety-instrumented system (SIS) architectures where it supports the installation of dedicated safety relay output modules and redundant CPU configurations. In hazardous-area control rooms and explosion-risk zones, the base unit’s grounded chassis and shielded backplane bus reduce radiated emissions and improve immunity to conducted interference from variable frequency drives, large motor starters, and high-current switching equipment installed in the same control cabinet.

Rugged Specifications Table

Comprehensive Protection Solutions

The A68B base unit is the integration point for a complete suite of MELSEC-A protection, control, and communication modules. In a typical heavy-industry control cabinet, the rack hosts the A3CPU central processing unit alongside AX40 DC input modules and AY40 transistor output modules, forming a dense, high-channel-count I/O assembly that handles thousands of field signals from sensors, actuators, and safety interlocks simultaneously.

Power integrity is maintained by the A61P power supply module, which provides regulated 5 VDC backplane power with built-in surge suppression and overcurrent protection — essential in facilities where utility power quality is poor or where large inductive loads cause frequent voltage transients. For applications requiring redundant power, a secondary A62P can be configured to provide automatic failover, eliminating single-point power failure as a cause of unplanned downtime.

Network connectivity is delivered through the A1SJ71QBR11 MELSECNET/B master module, enabling the A68B rack to serve as a network master controlling up to 64 remote I/O stations distributed across a plant floor. For serial device integration — including barcode readers, weighing systems, and third-party instrumentation — the A1SJ71UC24-R4 RS-232C/RS-422 communication module slots directly into the A68B rack without requiring external converters or protocol gateways.

In safety-critical applications, the rack accommodates A1SX80 isolated digital input modules and A1SY80 relay output modules, which provide galvanic isolation between field wiring and the backplane bus — protecting the CPU and communication modules from fault currents and ground loops originating in field instrumentation. Terminal modules and wiring duct accessories complete the installation, ensuring that all field connections are organized, labeled, and accessible for maintenance without disturbing adjacent modules.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the A68B-based MELSEC-A rack controls wellhead safety shutdown systems, pipeline pressure regulation, and compressor station sequencing. Its vibration tolerance and wide operating temperature range make it suitable for outdoor equipment enclosures in desert and arctic environments alike.

In mining operations, the A68B controls conveyor belt drives, crusher sequencing, and ventilation fan systems in underground and open-pit environments where dust ingress, mechanical shock, and high ambient temperatures are constant challenges. The rack’s robust construction and proven MELSEC-A bus architecture minimize unplanned stoppages that carry significant production cost penalties.

In power generation and grid substations, the A68B supports turbine governor control, transformer protection relay interfacing, and auxiliary system automation. Its EMC immunity characteristics are particularly valued in high-voltage switchgear environments where electromagnetic fields from bus bars and circuit breakers can disrupt less robust control hardware.

In water and wastewater treatment plants, the A68B manages pump station sequencing, chemical dosing control, and SCADA data acquisition. Its resistance to high-humidity environments and corrosive chemical atmospheres — common in chlorination and aeration facilities — ensures long service life with minimal maintenance intervention.

In metallurgical and steel mill applications, the A68B withstands the extreme thermal radiation, vibration, and electromagnetic interference generated by electric arc furnaces, rolling mills, and induction heating equipment, maintaining reliable control of process variables that directly affect product quality and worker safety.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the A68B?
Every A68B unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each A68B unit tested before shipment?
All A68B units undergo a multi-point pre-shipment inspection that includes visual inspection of the backplane bus connectors, continuity testing of all slot positions, and functional verification using a compatible MELSEC-A CPU and power supply module. Units that fail any inspection criterion are quarantined and not shipped. A test report is available upon request for customers with quality management system requirements.

Q3: Is the A68B compatible with all MELSEC-A series modules?
The A68B is compatible with the full range of MELSEC-A series I/O, special function, network, and communication modules, including legacy modules from the original MELSEC-A product generation. Customers migrating from older MELSEC-A racks or replacing damaged base units can install the A68B as a direct mechanical and electrical replacement without firmware changes or module reconfiguration in most standard configurations. For specific compatibility questions, contact TOPNLMS technical support before ordering.

Q4: Can TOPNLMS support long-term and repeat procurement of the A68B?
Yes. TOPNLMS maintains dedicated stock of MELSEC-A series components, including the A68B, to support customers with ongoing maintenance, spare parts programs, and plant expansion projects. For customers requiring scheduled deliveries, blanket purchase orders, or priority allocation during periods of high demand, TOPNLMS offers procurement planning support. Contact our team to discuss volume pricing and lead time commitments tailored to your maintenance schedule.
