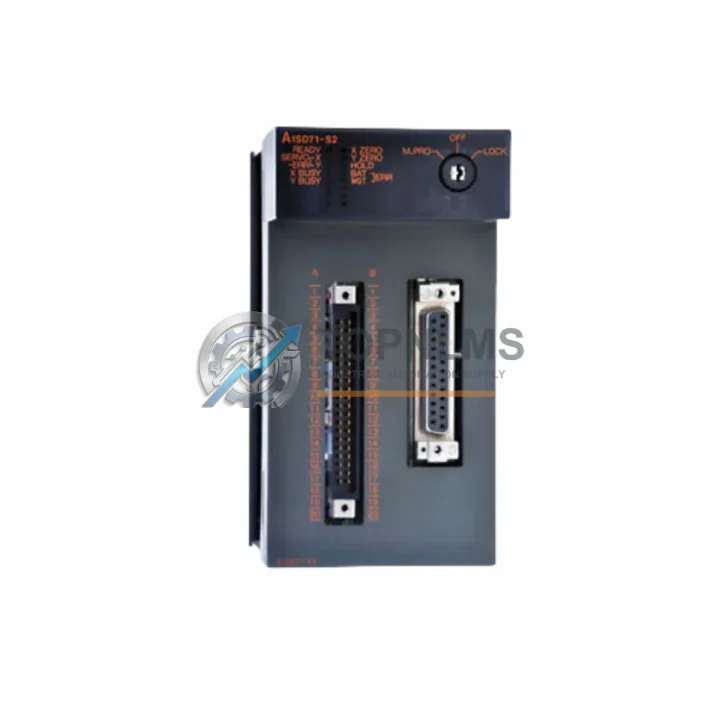

Mitsubishi A1SD71-S2 Replacement/Upgrade Solution for MELSEC-A

Product Overview

Mitsubishi A1SD71-S2 Replacement/Upgrade Solution for MELSEC-A: Seamless Transition from Legacy Positioning Systems

The Mitsubishi Electric A1SD71-S2 is a single-axis positioning module designed for the MELSEC-A series programmable logic controller platform. As Mitsubishi Electric has progressively phased out the MELSEC-A series in favor of the MELSEC-Q and MELSEC-iQ-R platforms, many industrial facilities operating legacy motion control and positioning systems now face the critical challenge of sourcing reliable replacement units or planning a structured upgrade migration. TOPNLMS supplies the A1SD71-S2 as a direct drop-in replacement for facilities that need to maintain existing MELSEC-A infrastructure, while also providing migration guidance for customers transitioning to modern Mitsubishi positioning solutions.

The A1SD71-S2 is a single-axis pulse output positioning module that mounts directly into the MELSEC-A series main base unit or extension base unit, such as the A1S38B or A1S68B rack. It communicates with the CPU module — typically an A1SCPU, A2SCPU, or A3NCPU — via the internal bus, requiring no additional communication hardware for basic positioning operations. The module outputs pulse trains to servo amplifiers or stepper drivers, making it compatible with a wide range of motion hardware already installed in the field.

For facilities running legacy MELSEC-A systems, replacing a failed A1SD71-S2 with a verified original or equivalent unit is often the most cost-effective path to restoring production. The module slots directly into the existing base, retains all existing wiring to the servo amplifier or driver, and requires no changes to the ladder logic program stored in the CPU. This zero-modification replacement approach minimizes downtime and eliminates the risk of introducing programming errors during a crisis repair event.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete MELSEC-A positioning system typically involves several interdependent components, and a successful migration or replacement strategy must account for each layer of the control architecture. When replacing the A1SD71-S2 in an existing MELSEC-A rack, the servo amplifier wiring — typically routed to a Mitsubishi MR-J2S series or MR-H series servo amplifier — remains unchanged, as the pulse output interface is electrically compatible. The A1SX40 or A1SY10 I/O modules handling limit switch and zero-point signal inputs continue to function without modification.

For customers planning a phased migration to the MELSEC-Q platform, the process typically begins with replacing the CPU module — moving from an A1SCPU to a Q02CPU or Q06HCPU — while retaining the existing servo wiring infrastructure. The positioning module is then upgraded from the A1SD71-S2 to a QD75D1 or QD75D2 for multi-axis applications, with the servo amplifier upgraded in parallel to a MR-J4 series unit to take advantage of SSCNET III/H high-speed serial communication. In applications where the existing servo amplifier must be retained, a pulse-to-SSCNET converter or a standalone QD75P1 pulse-output variant can bridge the gap.

Communication infrastructure also requires attention during migration. If the legacy system uses an A1SJ71UC24-R4 RS-232C communication module for SCADA or HMI connectivity, the equivalent QJ71C24N-R4 module provides the same serial communication capability on the Q platform. HMI panels — such as a GOT1000 series GT1155 — typically require only a communication driver update to connect to the new Q series CPU, preserving the existing screen project and operator interface.

Power supply modules are platform-specific: the A1S61PN or A1S62PN power supply units are not compatible with Q series base units, and a Q61P or Q62P power supply must be specified when migrating the base hardware. Signal isolation requirements between the positioning module and field devices can be addressed with DIN-rail mounted signal isolators or terminal relay modules such as the A1SY80 transistor output module, which provides isolated outputs suitable for pulse command signals in noise-sensitive environments.

Retrofit Guidance FAQ

Q: Can I replace the A1SD71-S2 without changing any wiring?
A: Yes. The A1SD71-S2 is a direct slot-replacement within any MELSEC-A series base unit. All servo amplifier pulse command wiring, limit switch inputs, and zero-point signal connections remain unchanged. No field wiring modifications are required for a like-for-like replacement.

Q: Do I need to modify my ladder logic program after replacing the module?
A: No. The A1SD71-S2 uses the same FROM/TO instruction-based parameter and positioning data interface as the original module. Provided the replacement unit is configured with the same positioning parameters (stored in the CPU program or written via GX Developer), the program runs without modification.

Q: What communication protocol does the A1SD71-S2 use?
A: The module communicates via the MELSEC-A series internal bus — a proprietary parallel backplane bus. It does not use Ethernet, PROFIBUS, or CC-Link. All data exchange with the CPU is handled through buffer memory using FROM/TO instructions in the ladder program.

Q: Is the A1SD71-S2 compatible with MR-J4 servo amplifiers?
A: The A1SD71-S2 outputs differential pulse commands compatible with the pulse train input interface of MR-J2S, MR-J3, and MR-J4 servo amplifiers (when the amplifier is configured for pulse input mode rather than SSCNET). Verify amplifier input specifications before connecting.

Q: What physical space does the module occupy?
A: The A1SD71-S2 occupies one slot in any MELSEC-A series base unit (A1S38B, A1S68B, A38B, A68B, etc.). No additional mounting hardware or DIN rail adapter is required.

Q: How do I migrate positioning data when upgrading to a QD75D1?
A: Positioning data stored in the A1SD71-S2 buffer memory must be manually re-entered or converted using GX Works2 / GX Configurator-QP. TOPNLMS recommends documenting all positioning parameters from the existing system before beginning any platform migration.

Warranty Assurance

Every A1SD71-S2 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on testing and visual inspection for connector integrity, PCB condition, and label authenticity. Units are shipped in anti-static packaging with protective foam inserts to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is one business day for initial fault assessment. Customers are requested to retain the original packaging and provide a brief fault description to expedite the replacement process. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage, or physical impact.

TOPNLMS maintains stock of MELSEC-A series modules to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment from Xiamen, China, with express options available on request. A proforma invoice and packing list are provided with every shipment to support customs clearance.

For procurement inquiries, technical compatibility questions, or bulk order pricing, contact our industrial automation team directly.
