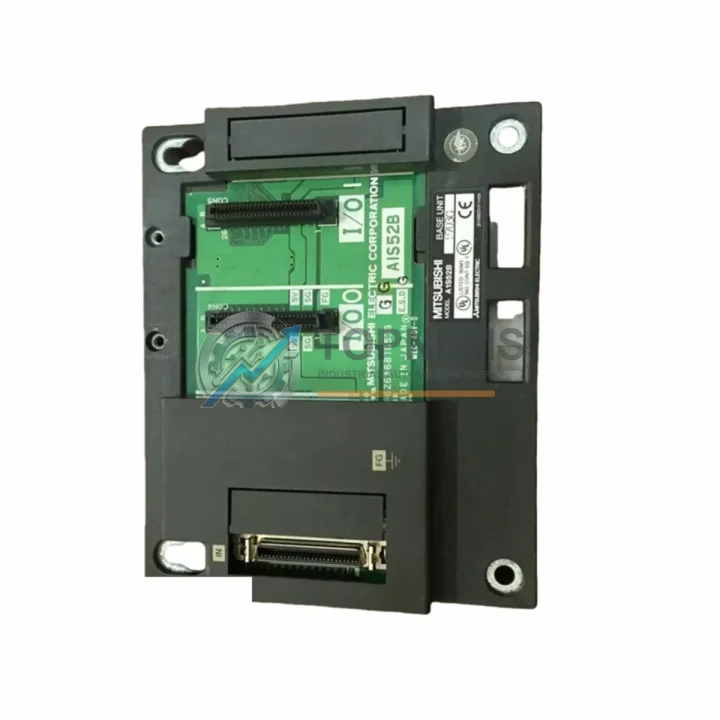

Mitsubishi A1S52B Ruggedized Extension Base for Harsh Environments

Product Overview

Mitsubishi A1S52B Ruggedized Extension Base for Harsh Environments

The Mitsubishi Electric A1S52B is a 5-slot extension base unit engineered for the MELSEC-A Series programmable logic controller platform — one of Mitsubishi Electric’s most enduring and widely deployed control architectures in global heavy industry. Designed to expand the I/O and module capacity of MELSEC-A Series CPU systems, the A1S52B delivers the structural rigidity, electrical isolation, and thermal tolerance demanded by continuous-production environments where downtime is not an option.

In oil refineries, petrochemical processing plants, coal preparation facilities, and municipal water treatment stations, control systems are exposed to a relentless combination of high ambient temperatures, humidity fluctuations, airborne particulates, mechanical vibration, and electromagnetic interference generated by variable frequency drives, large motor starters, and high-current bus bars. The A1S52B is built to operate reliably within these conditions, maintaining stable backplane communication between the MELSEC-A CPU module and downstream I/O, analog, communication, and safety modules without signal degradation or intermittent faults.

Its robust backplane bus architecture ensures low-impedance, noise-immune data transfer across all five module slots, making it an ideal host for high-density digital I/O modules such as the A1SX80 and A1SY80, as well as analog input modules like the A1S68AD for precision process measurement. When paired with the A1SCPU or A2SCPU CPU units, the A1S52B forms a compact yet expandable control node capable of managing complex interlocking logic, sequential control, and real-time data acquisition simultaneously.

In power generation and substation automation applications, where electromagnetic interference from high-voltage switching equipment can corrupt control signals, the A1S52B’s shielded backplane design provides a critical layer of protection. Engineers integrating MELSEC-A systems with A1SJ71UC24-R4 serial communication modules or A1SJ71QE71 Ethernet interface modules rely on the A1S52B’s stable bus environment to maintain uninterrupted SCADA connectivity and remote monitoring capability.

For facilities operating in classified hazardous areas — including offshore platforms, LNG terminals, and chemical batch processing plants — the A1S52B supports integration with dedicated safety relay modules and intrinsically safe I/O barriers, enabling the MELSEC-A platform to participate in safety instrumented system (SIS) architectures. When combined with A1S68DAI analog output modules driving control valves and actuators, the A1S52B becomes a central node in a fully instrumented safety loop.

In metallurgical and steel mill environments, where furnace operations generate extreme radiated heat and high-frequency electrical noise, the A1S52B’s industrial-grade PCB construction and conformal coating options allow it to function within control cabinets positioned in close proximity to process equipment. Its compatibility with A1SNMCA-MVK memory cassettes and A1SPA02 power supply modules ensures that the entire MELSEC-A rack assembly maintains consistent power quality and program retention even during brief supply interruptions.

Mining operations — from underground coal extraction to open-pit copper processing — place extreme demands on PLC hardware through constant vibration, shock loading, and dust ingress. The A1S52B’s slot-locking module retention mechanism prevents module displacement under these conditions, maintaining reliable contact between module edge connectors and the backplane bus. This mechanical reliability is equally valued in automotive stamping lines and injection molding facilities, where high-cycle press operations generate repetitive shock loads throughout the control cabinet.

As a spare parts and replacement component, the A1S52B holds significant value for facilities maintaining legacy MELSEC-A installations. Rather than undertaking a full control system migration — which carries substantial engineering cost, production downtime, and revalidation risk — maintenance engineers can extend the operational life of proven MELSEC-A systems by sourcing genuine replacement base units. TOPNLMS maintains verified stock of the A1S52B, with each unit subject to pre-shipment functional inspection to confirm backplane bus integrity and slot connector condition.

Rugged Specifications Table

Comprehensive Protection Solutions

The A1S52B does not operate in isolation — it is the structural backbone of a complete MELSEC-A control rack, and its reliability directly determines the operational continuity of every module installed within it. In a fully configured MELSEC-A panel, the base unit hosts a combination of digital input modules such as the A1SX40 for 16-point 24VDC input sensing, digital output modules like the A1SY40P for transistor-driven actuator control, and analog modules including the A1S62DA for precision voltage and current output to proportional control valves.

Communication integrity is maintained through dedicated interface modules mounted directly in the A1S52B’s expansion slots. The A1SJ71UC24-R2 RS-232C communication module enables direct connection to HMI panels, barcode readers, and weighing terminals, while the A1SJ71BR11 MELSECNET/B data link module supports peer-to-peer communication between multiple MELSEC-A racks distributed across a production floor. In facilities requiring Ethernet connectivity for SCADA integration, the A1SJ71QE71N3-T Ethernet module slots directly into the A1S52B, providing TCP/IP communication without requiring an external gateway device.

Power supply reliability is equally critical. The A1S61PN and A1S62PN power supply modules, mounted adjacent to the A1S52B in the main base unit, provide regulated 5VDC and 24VDC rails to all installed modules. In environments with unstable incoming power — common in mining substations and offshore platforms — these power modules incorporate surge suppression and overcurrent protection that shields the A1S52B backplane and all connected modules from transient damage. For applications requiring uninterrupted operation during brief power outages, the A1S52B system can be paired with an external UPS to maintain control continuity through supply interruptions of several seconds.

Application in Critical Infrastructure

The Mitsubishi Electric A1S52B has accumulated decades of field deployment across the most demanding sectors of global critical infrastructure. In oil and gas processing, MELSEC-A systems built around the A1S52B manage wellhead control panels, pipeline isolation valve sequencing, and compressor station automation — applications where a single control system failure can trigger emergency shutdown procedures and significant production losses. The base unit’s robust construction allows it to remain in service within pressurized control rooms and outdoor weatherproof enclosures in desert and arctic environments alike.

In electric power generation and transmission, the A1S52B supports turbine auxiliary control, transformer protection relay interfacing, and switchgear interlocking logic. Substation environments expose control hardware to high-frequency transients from circuit breaker operations and capacitor bank switching; the A1S52B’s noise-immune backplane bus maintains data integrity under these conditions, ensuring that protection relay outputs and SCADA status signals are transmitted without corruption.

Within water and wastewater treatment facilities, the A1S52B controls pump sequencing, chemical dosing systems, and filtration process automation. These installations often operate continuously for years without scheduled shutdowns, placing a premium on hardware that can sustain reliable operation in high-humidity environments with exposure to chlorine vapors and other corrosive process gases. The A1S52B’s industrial-grade PCB materials and conformal coating options provide the chemical resistance required for long-term deployment in these conditions.

In metallurgical and steel production environments, the A1S52B manages rolling mill drive coordination, furnace temperature control loop interfacing, and ladle transfer car positioning — all in the presence of intense radiated heat, airborne metallic dust, and high-current induction furnace interference. Mining operations rely on the A1S52B for conveyor belt control, crusher sequencing, and ventilation fan management in underground environments where vibration, dust, and humidity are constant operational realities.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the A1S52B?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the A1S52B fails to perform its specified function within the warranty period due to a product defect, TOPNLMS will provide a replacement unit or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling after delivery.

Q2: How is the A1S52B tested before shipment?
Each A1S52B unit undergoes a pre-shipment functional inspection that verifies backplane bus continuity, slot connector integrity, and physical condition of all mounting hardware. Units that do not pass inspection are quarantined and not offered for sale. Inspection records are retained and can be provided upon request for quality assurance documentation purposes.

Q3: Is the A1S52B compatible with all MELSEC-A Series modules?
The A1S52B is designed for use with the full range of MELSEC-A Series I/O, analog, communication, and special function modules. It is compatible with A1S-series slim modules and standard A-series modules within the physical slot dimensions of the base unit. Compatibility with specific module combinations should be verified against Mitsubishi Electric’s MELSEC-A Series hardware manual, and TOPNLMS technical support is available to assist with compatibility confirmation prior to purchase.

Q4: Can TOPNLMS support long-term supply of the A1S52B for ongoing maintenance programs?
Yes. TOPNLMS specializes in the supply of legacy and current-production industrial automation components, including MELSEC-A Series hardware. We maintain stock of the A1S52B and related MELSEC-A modules to support planned maintenance programs, emergency breakdown replacements, and capital spares inventories. Customers with ongoing procurement requirements are encouraged to contact us to discuss framework supply agreements and reserved stock arrangements.
