METSO DPU-MR Replacement Solution for DNA DCS

Product Overview

METSO DPU-MR Replacement Solution for DNA DCS: Seamless Transition from Legacy Systems

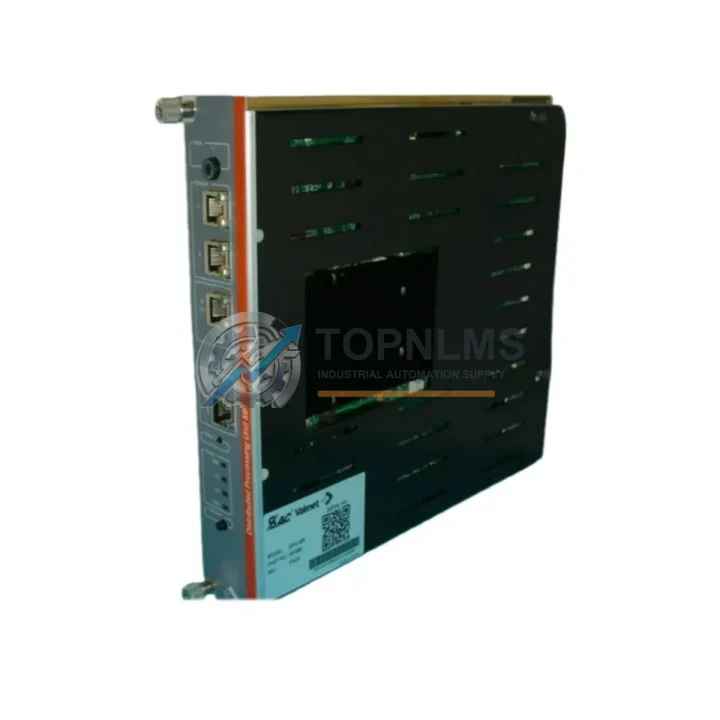

The METSO DPU-MR is a distributed processing unit designed for the METSO DNA Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in pulp & paper, power generation, and chemical processing industries. As legacy DNA DCS installations age and original DPU-MR units reach end-of-service life, facilities face increasing pressure to source verified replacement modules that maintain full backward compatibility with existing field wiring, I/O termination assemblies, and control logic without requiring a full system migration.

At TOPNLMS, we supply the METSO DPU-MR as a direct drop-in replacement for failed or end-of-life distributed processing units within the DNA DCS architecture. Each unit is sourced from verified supply channels, pre-shipment tested, and backed by a 12-month warranty — giving procurement engineers and maintenance teams the confidence to plan both emergency replacements and scheduled modernization projects.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DPU-MR replacement rarely involves a single module in isolation. In practice, maintenance teams undertaking a DNA DCS modernization project will simultaneously address adjacent components to ensure system-wide reliability. During the swap-out process, engineers commonly inspect and replace the DNA I/O modules connected to the DPU-MR — particularly analog input modules handling 4–20 mA process signals from field transmitters and digital output modules driving valve actuators and motor starters. If the existing DNA power supply module (PSU) shows signs of aging, it is best practice to replace it concurrently to avoid a secondary failure shortly after the DPU-MR is restored to service.

Communication integrity is equally critical. The DPU-MR interfaces with the DNA network via the station bus, and the associated DNA communication module or network interface card should be verified for firmware compatibility before commissioning the replacement unit. In installations where the DNA DCS communicates upstream to a SCADA or historian via OPC or Modbus TCP, the gateway configuration remains unchanged — the DPU-MR replacement is transparent to the supervisory layer.

For sites performing a broader control cabinet retrofit, the DNA termination unit (DTU) and marshalling panels connected to the DPU-MR should be inspected for terminal corrosion and cable labeling accuracy before the new module is inserted. Where the existing DNA operator station or engineering workstation runs an older version of the DNA application software, a firmware alignment check between the workstation and the replacement DPU-MR is recommended prior to application download. In multi-controller DNA architectures, the DNA controller module (DCN) coordinating peer DPUs should also be confirmed as compatible with the firmware revision of the incoming DPU-MR to prevent peer communication faults during startup.

Sites that have integrated third-party HART field devices through the DNA I/O layer will find that the DPU-MR replacement does not disrupt HART pass-through functionality, provided the associated DNA HART multiplexer or AI module is retained. For installations where a DNA redundancy module (DRM) provides hot-standby protection for the processing unit, the redundancy pair configuration is re-established automatically following the standard DNA redundancy commissioning sequence after the replacement DPU-MR is inserted and powered.

Retrofit Guidance FAQ

Q: Do I need to rewire field cables when replacing the DPU-MR?
A: No. The DPU-MR connects to the DNA I/O termination assemblies via the backplane and internal bus. Field wiring terminates at the DTU or marshalling panel and is not disturbed during a module swap. Only the DPU-MR card itself is removed and replaced.

Q: Will my existing DNA application program run on the replacement DPU-MR without modification?
A: Yes, in the vast majority of cases. The application software resides on the DNA engineering station and is downloaded to the DPU-MR after insertion. No logic rewrite is required. A firmware version check between the replacement module and the engineering station is recommended to confirm compatibility before download.

Q: Is the DPU-MR compatible with both older and newer DNA DCS rack generations?
A: The DPU-MR is designed for the METSO DNA DCS rack platform. Physical slot dimensions and backplane connector pinouts are standardized across the DNA series. If your installation uses an earlier DNA rack generation, please provide your existing module part number and rack revision when placing your order so we can confirm compatibility.

Q: How does the DPU-MR communicate with the DNA network, and will my network topology be affected?
A: The DPU-MR uses the METSO DNA proprietary station bus protocol. Replacement is transparent to the network — the new module assumes the same node address and network identity as the failed unit after commissioning. No changes to switches, fiber runs, or network configuration are required.

Q: What is the physical space requirement for installation?
A: The DPU-MR occupies a single standard DNA module slot. No additional cabinet space is required. The module is hot-swap capable in redundant configurations, minimizing process interruption during replacement.

Q: How long does commissioning take after the replacement module is inserted?
A: For a straightforward single-unit replacement with an existing application backup, experienced DNA technicians typically complete insertion, firmware verification, application download, and I/O checkout within 2–4 hours. Redundancy pair re-establishment adds approximately 30 minutes.

Warranty Assurance

Every METSO DPU-MR unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment functional test to verify power-up behavior, communication interface integrity, and module identification. Units that do not pass testing are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the fault assessment. Our after-sales response target is within 24 hours of claim submission. Customers are not required to return the faulty unit before a replacement is dispatched for critical production environments — we assess on a case-by-case basis to minimize your downtime exposure.

Procurement documentation including test reports, packing lists, and certificates of conformity is available upon request to support your incoming inspection and asset management processes. We ship globally from our Xiamen warehouse via DHL, FedEx, and UPS with full tracking, and can accommodate urgent air freight requirements for emergency replacement scenarios.

For volume orders, scheduled blanket purchase agreements, or consignment stock arrangements, please contact our sales team directly to discuss lead times and pricing.
