METRIX TXR-33505 Replacement/Upgrade Solution for TXR Series

Product Overview

METRIX TXR-33505 Replacement/Upgrade Solution for TXR Series: Seamless Transition from Legacy Vibration Monitoring Systems

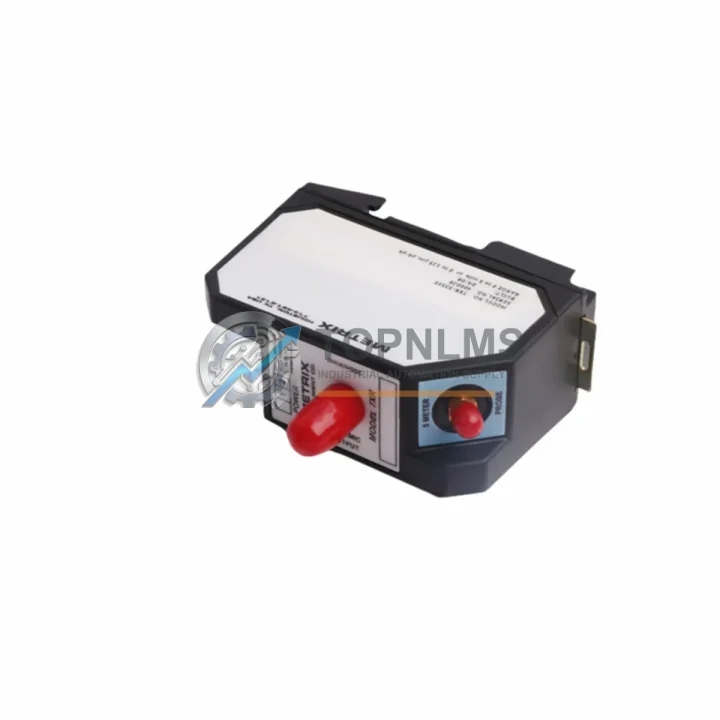

The METRIX TXR-33505 is a loop-powered 4-20mA vibration transmitter engineered for continuous monitoring of rotating machinery including pumps, compressors, fans, gearboxes, and turbines. As legacy vibration monitoring systems age and original TXR-series units approach end-of-service life, facilities engineers and reliability teams face increasing pressure to source verified replacement units that maintain signal integrity, wiring compatibility, and system continuity without triggering a full-scale instrumentation overhaul.

TOPNLMS stocks the TXR-33505 as a direct replacement and upgrade solution for existing METRIX TXR Series installations. Whether your plant is running a Bently Nevada 3500 Series rack-based monitoring system, a standalone vibration panel, or a DCS-integrated condition monitoring loop, the TXR-33505 integrates without requiring rewiring of the 2-wire 4-20mA loop or reconfiguration of your existing signal conditioners and barriers.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TXR-33505 field replacement rarely involves the transmitter alone. In most rotating machinery monitoring upgrades, the TXR-33505 is installed alongside complementary components that ensure the entire signal chain — from sensor to control room — remains reliable and calibrated.

For plants integrating the TXR-33505 into a Bently Nevada 3500/40M or 3500/42M monitor module, the existing Keyphasor and proximity probe wiring typically remains unchanged, as the TXR-33505 feeds the 4-20mA AI channel independently. Where facilities are simultaneously upgrading their vibration monitoring rack, the METRIX 5550 Series transmitter or METRIX 7000 Series proximity system may be evaluated as complementary channel additions for axial position or differential expansion monitoring.

In DCS-integrated environments — particularly those running Emerson DeltaV, Honeywell Experion, or ABB 800xA — the TXR-33505 connects directly to the existing analog input (AI) module without any marshalling cabinet rewiring. If the AI module is being replaced as part of a broader I/O modernization, TOPNLMS can also source compatible Emerson DeltaV CHARM I/O cards or ABB S800 I/O modules to support parallel upgrade scopes.

For installations where the field junction box or terminal strip is being refreshed, Phoenix Contact PTFIX or Weidmuller terminal blocks are commonly specified alongside the TXR-33505 to maintain loop isolation and cable management standards. Where intrinsic safety barriers are required for Zone 1 or Zone 2 hazardous area installations, MTL 787S+ or Pepperl+Fuchs KFD2-STC4-Ex1 Zener barriers are compatible with the TXR-33505’s 4-20mA loop and can be sourced through TOPNLMS on the same purchase order.

In facilities upgrading from older METRIX 5450 or 5550 transmitters, the TXR-33505 provides a direct upgrade path with improved signal stability and reduced susceptibility to EMI — a common concern in motor control center (MCC) environments where VFD switching noise can corrupt analog signals. Signal isolators such as the WAGO 857-550 or Phoenix Contact MCR-SL-I-I-ILP are sometimes added to the loop to provide galvanic isolation between the field device and the DCS AI card.

For commissioning and loop verification, a standard HART communicator or 4-20mA loop calibrator (such as the Fluke 709H) is sufficient to verify TXR-33505 output before returning the monitoring loop to service. No proprietary programming cable or configuration software is required, which significantly reduces commissioning time during planned maintenance windows.

Retrofit Guidance FAQ

Q: Can I reuse my existing 2-wire field cable when replacing with the TXR-33505?
A: Yes. The TXR-33505 is a 2-wire loop-powered device with the same wiring polarity convention as standard METRIX TXR Series units. Existing shielded twisted-pair cable can be reused without modification, provided insulation resistance and continuity checks pass during pre-commissioning.

Q: Does the TXR-33505 require any PLC or DCS program changes?
A: No program changes are required if the replacement is a like-for-like swap on the same AI channel. The 4-20mA output range and engineering unit scaling remain identical, so existing PLC function blocks, DCS faceplates, and alarm setpoints do not need to be modified.

Q: Is the TXR-33505 compatible with HART-enabled AI modules?
A: The TXR-33505 is an analog 4-20mA transmitter. If your AI module supports HART, the device will function correctly on the analog layer; HART digital communication is not a feature of the TXR-33505, so HART-specific diagnostics will not be available.

Q: What is the physical installation footprint? Will it fit in the existing mounting location?
A: The TXR-33505 uses a standard accelerometer-style thread mount compatible with existing METRIX TXR Series mounting pads. No bracket modification or machining is required for a direct replacement. Verify thread specification (typically 10-32 UNF or M6) against your existing installation before ordering if the original unit has been in service for more than 10 years.

Q: How do I verify the TXR-33505 is functioning correctly after installation?
A: Apply loop power (12–30 VDC), connect a calibrated 4-20mA loop calibrator or multimeter in series, and confirm the output corresponds to the machine’s actual vibration level. Compare against the previous transmitter’s baseline readings stored in your DCS historian or condition monitoring software to validate signal accuracy before returning the loop to automatic control.

Q: Can the TXR-33505 be used in hazardous area (Ex) installations?
A: Confirm the specific ATEX/IECEx or FM/CSA certification markings on the unit before installation in classified areas. For Zone 1 or Division 1 applications, an approved intrinsic safety barrier must be installed in the associated apparatus location. TOPNLMS can advise on compatible barrier selection based on your area classification documentation.

Warranty Assurance

Every METRIX TXR-33505 unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to dispatch, each unit undergoes functional output verification to confirm the 4-20mA signal range, loop power draw, and mechanical integrity of the housing and connector. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are dispatched from our Xiamen warehouse with priority freight to minimize your plant’s exposure to unmonitored rotating machinery.

For urgent plant shutdowns or unplanned outages, TOPNLMS maintains buffer stock of high-demand TXR Series components to support same-day or next-day dispatch. Contact our technical sales team directly to confirm real-time stock availability and lead time before raising a purchase order.

Procurement teams can request a formal quotation, proforma invoice, or material certification documentation (including test reports and country of origin certificates) as part of the standard order process. All units are shipped with original manufacturer packaging where available, or equivalent protective packaging for surplus/refurbished stock.
