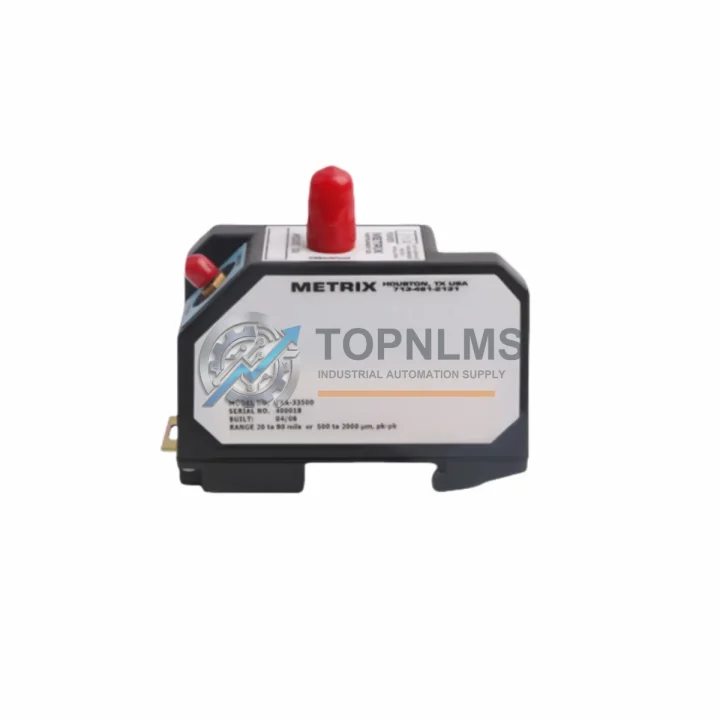

METRIX TXA-33500 Ruggedized Vibration Amplifier Module

Product Overview

METRIX TXA-33500 Ruggedized Vibration Amplifier Module: Industrial Resilience for Harsh Environments

The METRIX TXA-33500 Probe Trend Amplifier Module is an eddy-current signal conditioner engineered for continuous, reliable operation in the most demanding industrial environments. Designed to interface directly with METRIX proximity probes and eddy-current sensor systems, the TXA-33500 converts raw displacement signals into clean, calibrated analog outputs that feed seamlessly into vibration monitoring systems, DCS platforms, and safety instrumented systems (SIS). Whether deployed in a rotating machinery protection rack, a turbine monitoring cabinet, or a remote field enclosure, this module delivers the signal integrity and environmental resilience that critical infrastructure demands.

In high-temperature petrochemical plants, offshore compressor stations, underground mining facilities, and heavy-duty power generation sites, signal conditioning hardware is subjected to relentless thermal cycling, mechanical vibration, airborne particulates, and electromagnetic interference. The TXA-33500 is built to withstand these conditions without signal drift, false trips, or premature failure — making it a trusted component in predictive maintenance programs and continuous machinery protection architectures worldwide.

Rugged Specifications Table

Comprehensive Protection Solutions

The TXA-33500 does not operate in isolation — it is a precision link in a broader machinery protection and process control chain. In a typical turbine or compressor monitoring installation, the TXA-33500 amplifier module works in concert with the METRIX 5500 Series Vibration Monitor, receiving conditioned signals from shaft proximity probes and forwarding calibrated outputs to the monitor’s alarm and relay logic. Paired with the METRIX ST5484E or ST5491E velocity transducers mounted on bearing housings, the system provides both relative shaft displacement and absolute casing vibration data — a dual-channel approach mandated by API 670 machinery protection standards.

Within the control cabinet, the TXA-33500 signal outputs are typically wired to Siemens S7-400 or S7-300 PLC analog input modules (such as the SM 331 or SM 334) for integration into the plant DCS or SCADA layer. In Yokogawa CENTUM VP or Honeywell Experion PKS environments, the conditioned 4–20 mA signal feeds directly into field control station (FCS) I/O cards, enabling real-time trend logging and alarm management without additional signal conversion. For installations requiring galvanic isolation between the field loop and the control system, a Phoenix Contact MACX MCR-SL signal isolator or equivalent barrier module is inserted in-line, protecting both the TXA-33500 and the PLC input card from ground loop interference.

Power distribution to the TXA-33500 and its associated probe driver circuitry is typically sourced from a PULS or Phoenix Contact 24 VDC DIN-rail power supply with redundant output capability, ensuring that a single PSU failure does not interrupt the vibration monitoring loop. In safety-critical applications, a Pilz PNOZ or Siemens SIRIUS 3SK safety relay module monitors the integrity of the monitoring loop and triggers a controlled shutdown if the TXA-33500 output falls outside calibrated bounds — a requirement in SIL 2 machinery protection loops per IEC 61511.

Communication of vibration trend data upstream to the plant historian or condition monitoring software (such as Emerson AMS Machinery Manager or Bentley Nevada System 1) is achieved via Modbus RTU or HART protocol bridges connected to the monitor rack’s communication ports. Terminal blocks — typically Phoenix Contact or Weidmüller spring-cage terminal modules — provide the field wiring interface within the control cabinet, ensuring vibration-resistant, maintenance-friendly connections that survive years of thermal cycling and mechanical stress.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the METRIX TXA-33500 is deployed on gas compressor trains, centrifugal pumps, and expander-compressor units where shaft vibration monitoring is a continuous, non-negotiable safety requirement. API 670-compliant machinery protection systems in these environments demand sub-millisecond response times and zero tolerance for signal dropout — requirements the TXA-33500 meets through its low-noise amplifier design and wide operating temperature range.

In coal-fired and combined-cycle power plants, the module is installed on steam turbine bearing pedestals and boiler feed pump drive trains. Continuous vibration trending through the TXA-33500 enables maintenance teams to detect early-stage rotor imbalance, misalignment, and bearing wear — extending mean time between planned outages and preventing catastrophic failures that could take a generating unit offline for weeks.

In mining and mineral processing, where ball mills, SAG mills, and large slurry pumps operate in environments saturated with dust, moisture, and structural vibration, the TXA-33500’s robust signal conditioning ensures that proximity probe data remains clean and actionable even when the surrounding environment is at its most hostile. The module’s immunity to electromagnetic interference from variable frequency drives (VFDs) and high-current motor starters — common in mining switchgear rooms — is a critical operational advantage.

In water and wastewater treatment plants, the TXA-33500 monitors the shaft condition of large vertical turbine pumps and centrifugal blowers, providing early warning of bearing degradation before it leads to unplanned downtime in a facility where continuous operation is a public health obligation. In metallurgical and steel production environments, the module withstands the intense electromagnetic fields generated by arc furnaces and induction heating systems, maintaining signal integrity where lesser signal conditioners would introduce noise-induced false alarms.
