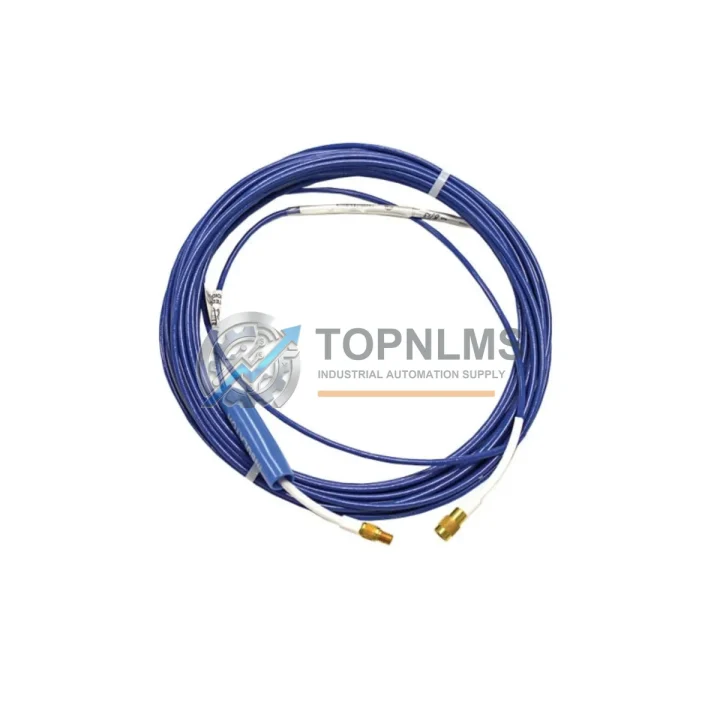

METRIX MX8030-080-00-05 Ruggedized Proximity Extension Cable: Industrial Resilience for Harsh Environments

The METRIX MX8030-080-00-05 / MX8031-080-00-05 Proximity Probe Extension Cable (5m) is an engineered-for-industry signal transmission component designed to maintain measurement integrity in the most demanding industrial environments. As a critical link between the proximity probe tip and the signal conditioning electronics — typically a METRIX MX8000-series proximitor or compatible Bently Nevada 3300 XL proximitor — this cable must perform flawlessly under continuous mechanical stress, electromagnetic interference, and extreme ambient conditions. TOPNLMS stocks, tests, and ships this component with a 12-month quality warranty, supporting rotating machinery protection programs across oil & gas, power generation, mining, and heavy manufacturing sectors.

Rugged Specifications Table

Comprehensive Protection Solutions

The MX8030-080-00-05 extension cable does not operate in isolation — it is one element of a tightly integrated machinery protection chain. In a typical turbomachinery monitoring installation, this cable connects the METRIX MX8004 proximity probe (or MX8005 for high-temperature applications) to the METRIX MX8000 proximitor, which converts the raw oscillator signal into a calibrated DC gap voltage readable by the plant’s vibration monitoring system. That signal is then routed to a METRIX ST5484E vibration transmitter or fed directly into a Bently Nevada 3500 series rack for continuous shaft displacement monitoring.

Within the control cabinet, the gap voltage output interfaces with Siemens S7-300 or S7-400 PLC analog input modules — such as the SM 331 or SM 334 — or with Emerson DeltaV DCS I/O cards for process-integrated machinery protection. Reliable signal transmission through this extension cable is essential: any impedance mismatch, shield discontinuity, or connector degradation will introduce measurement error that propagates through the entire protection loop, potentially masking dangerous shaft vibration events.

In high-EMI environments — common near large variable frequency drives (VFDs), motor control centers (MCCs), or high-current bus bars — the double-shielded coaxial construction of the MX8030-080-00-05 provides the noise rejection necessary to maintain API 670-compliant measurement accuracy. This is particularly critical in installations where the extension cable must run parallel to power cables within shared cable trays. Supplementary EMI mitigation using Phoenix Contact TRABTECH surge protection modules or Weidmüller signal conditioners at the cabinet entry point further protects the measurement chain.

For facilities operating continuous production lines — petrochemical crackers, LNG compression trains, or steel rolling mills — unplanned downtime caused by a failed extension cable is unacceptable. Maintaining a stocked spare of the MX8030-080-00-05 alongside the matched MX8004 probe and MX8000 proximitor as a complete replacement set is standard practice under API 670 spare parts recommendations. TOPNLMS supplies these components individually or as matched system sets, pre-tested and documented for immediate field installation.

Application in Critical Infrastructure

The METRIX MX8030-080-00-05 extension cable is deployed across the full spectrum of critical rotating machinery applications:

Oil & Gas: Upstream and midstream compression stations rely on eddy-current proximity systems to monitor centrifugal compressor shaft displacement 24/7. In offshore platform environments, the cable’s resistance to salt spray, hydrocarbon condensate, and mechanical vibration from wave-induced platform motion is essential. Subsea-adjacent topside installations demand cables that maintain calibration stability across wide temperature swings between cold ambient nights and heat-soaked equipment enclosures.

Power Generation: Steam turbine and gas turbine installations in utility-scale power plants use proximity probe systems as the primary shaft vibration and axial position measurement method. The MX8030-080-00-05 must maintain signal integrity through the high-temperature, high-vibration environment of the turbine bearing pedestals, where ambient temperatures can approach the cable’s rated upper limit during full-load operation.

Mining & Minerals Processing: Large SAG mills, ball mills, and crusher drives present extreme vibration and dust environments. Extension cables routed through mining equipment enclosures must withstand abrasion, impact, and exposure to mineral slurries. The ruggedized jacket construction of the MX8030-080-00-05 provides the mechanical durability required for these applications.

Water & Wastewater: High-capacity pump stations and blower installations in water treatment facilities use proximity monitoring to detect bearing wear before catastrophic failure. The cable’s resistance to moisture ingress and chemical exposure from treatment chemicals makes it suitable for these humid, corrosive environments.

Metallurgy & Heavy Industry: Steel plant rolling mill drives, blast furnace blowers, and continuous caster drives operate in environments with intense electromagnetic interference from large DC drives and induction furnaces. The shielding performance of the MX8030-080-00-05 is critical to maintaining measurement accuracy in these high-EMI industrial settings.
