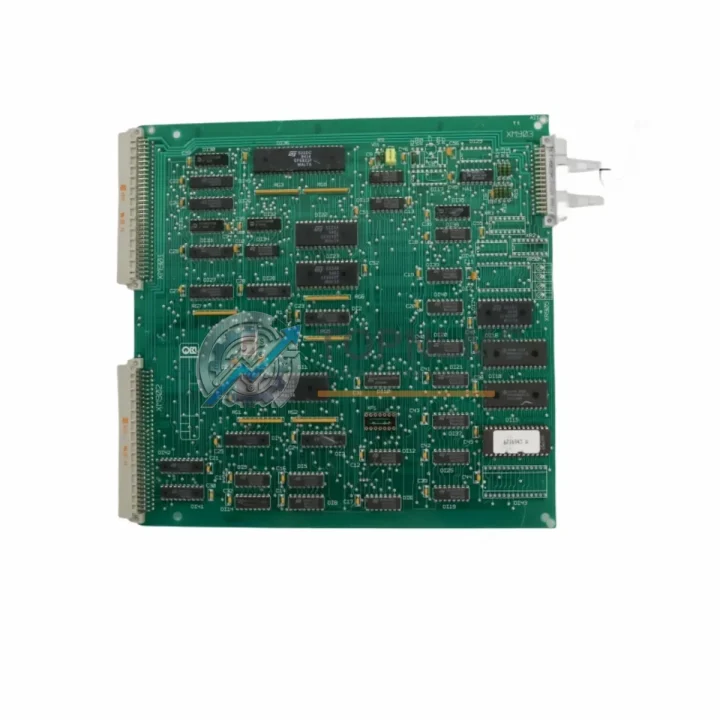

MERLIN GERIN 6716864-2B Ruggedized Control Board for Harsh Environments

Product Overview

MERLIN GERIN 6716864-2B Ruggedized Control Board for Harsh Environments

The MERLIN GERIN 6716864-2B (also referenced as 556393, model DSL-16-25-270-P-A-S20-B, assembly code 810-800961-009) is a ruggedized control board PCB assembly engineered for continuous, reliable operation in the most demanding industrial environments. Manufactured in France under Schneider Electric’s legacy MERLIN GERIN brand — a name synonymous with precision engineering and industrial-grade durability — this control board is purpose-built to sustain mission-critical motor control and protection functions where failure is not an option.

Designed as the core intelligence of the DSL series digital soft-starter platform, the 6716864-2B board governs motor ramp-up sequencing, current limiting, phase monitoring, and thermal protection logic. Its conformal-coated PCB construction provides robust resistance to moisture ingress, airborne particulates, and corrosive atmospheres — making it equally at home in a sealed control cabinet on an offshore platform as in an open-frame panel in a cement processing facility. The board’s signal isolation architecture suppresses conducted and radiated electromagnetic interference (EMI), ensuring stable communication with upstream PLCs, DCS controllers, and SCADA systems even in environments saturated with variable-frequency drive (VFD) switching noise.

In high-vibration installations — such as compressor skids, conveyor drive stations, or pump houses adjacent to heavy rotating machinery — the 6716864-2B’s reinforced component mounting and through-hole soldering on critical power-path components maintain electrical integrity across extended duty cycles. The board is rated for wide ambient temperature operation, sustaining full performance from sub-zero cold-start conditions in outdoor substations to elevated temperatures inside poorly ventilated motor control centers (MCCs).

Within a complete DSL soft-starter assembly, the 6716864-2B interfaces directly with the power thyristor stack, gate driver board, and operator interface panel. It reads feedback from current transformers and thermistors, executes protection trips within milliseconds of detecting overcurrent, phase loss, or thermal overload events, and logs fault codes for downstream diagnostic retrieval. This tight integration with the DSL platform’s I/O expansion modules and communication interface cards — including Modbus RTU and Profibus DP adapters — allows the board to participate in plant-wide condition monitoring without requiring additional signal conditioning hardware.

For facilities running Schneider Electric Modicon M340 or Modicon Quantum PLC systems, the 6716864-2B fits naturally into the existing control architecture. Operators already familiar with Unity Pro or EcoStruxure Machine Expert programming environments will find the soft-starter’s behavior fully configurable through standard function blocks, reducing commissioning time and eliminating the need for proprietary tooling. Similarly, sites using Schneider Electric Altivar 312 or Altivar 71 variable-frequency drives alongside soft-starters benefit from a unified protection philosophy — both platforms share compatible current sensing ranges and fault relay output conventions, simplifying panel wiring and spare-parts rationalization.

The board’s onboard EEPROM retains parameter settings through power cycling and brownout events, a critical feature in regions with unstable grid infrastructure. When paired with a Schneider Electric Zelio Logic smart relay or a Preventa XPS safety relay module for emergency-stop and safety-rated shutdown circuits, the 6716864-2B contributes to a defense-in-depth protection strategy that satisfies IEC 62061 and ISO 13849 functional safety requirements at the system level.

In water and wastewater treatment plants, the 6716864-2B controls submersible pump motors and aeration blowers that must operate continuously for months without manual intervention. Its self-diagnostic routines detect incipient faults — such as gradual insulation degradation or bearing wear reflected in motor current signature — before they escalate to unplanned shutdowns. In mining and mineral processing, where dust concentrations can reach explosive levels, the board’s sealed enclosure compatibility supports installation inside Ex-rated (ATEX/IECEx) control panels, provided the enclosure itself carries the appropriate certification. Metallurgical plants operating electric arc furnaces and rolling mills rely on the DSL platform’s fast-response current limiting to protect motor windings during the violent load transients characteristic of heavy rolling operations.

Oil and gas upstream facilities — wellhead control panels, gas compression stations, and pipeline pump stations — demand components with documented traceability and long-term supply continuity. TOPNLMS maintains verified stock of the 6716864-2B with full batch traceability, supporting both emergency breakdown replacement and planned preventive maintenance programs. Each unit undergoes incoming inspection and functional verification before dispatch, and is shipped with anti-static packaging and humidity indicator cards to preserve board integrity during international transit.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6716864-2B does not operate in isolation — it is the command center of a layered protection ecosystem. Within the DSL soft-starter enclosure, it works in concert with the DSL thyristor power module and the DSL operator keypad interface to deliver smooth, controlled motor acceleration that eliminates mechanical shock on couplings, gearboxes, and driven equipment. When the application demands network integration, the DSL Profibus DP communication module or Modbus RTU interface card slots directly into the soft-starter chassis, allowing the 6716864-2B’s real-time motor data — current, voltage, thermal state, and fault history — to be polled by a Modicon M340 PLC or transmitted to a Wonderware or Ignition SCADA server.

For motor branch circuit protection upstream of the soft-starter, Schneider Electric GV2 or GV3 motor circuit breakers provide coordinated short-circuit and overload protection, forming a type-2 coordination assembly with the DSL platform. Downstream, Schneider Electric TeSys D or TeSys K contactors handle bypass switching once the motor reaches full speed, reducing thyristor thermal stress during steady-state operation. In applications where power quality is a concern — particularly in facilities with large numbers of Altivar variable-frequency drives generating harmonic currents — line reactors and EMC filters installed ahead of the soft-starter protect the 6716864-2B’s sensitive analog measurement circuits from voltage distortion.

Safety-rated applications integrate the soft-starter with a Preventa XPSAL or XPSAF safety relay module, which monitors the emergency-stop circuit and issues a hardwired trip signal to the DSL’s external fault input terminal. For facilities requiring SIL 2 or PLd machine safety ratings, this combination — documented with the appropriate SISTEMA calculation — satisfies the functional safety requirements of the driven machine without the cost of a dedicated safety PLC. Wiring terminations throughout the control cabinet are completed using Schneider Electric Linergy or Phoenix Contact terminal blocks, ensuring reliable, vibration-resistant connections that maintain contact integrity over years of thermal cycling.

Application in Critical Infrastructure

In oil and gas production facilities, the MERLIN GERIN 6716864-2B controls electric submersible pump (ESP) drive systems and gas injection compressor motors at wellhead and gathering station sites. Its fast overcurrent trip response — measured in milliseconds — prevents motor winding damage during the sudden load spikes that occur when gas slugs pass through multiphase pump impellers. Operators at remote unmanned stations rely on the board’s Modbus RTU interface to retrieve fault logs and motor health data via SCADA without dispatching field technicians.

In mining and mineral processing, the board drives conveyor belt motors, ball mill drives, and slurry pump systems that must sustain continuous operation across multiple shifts. The DSL platform’s current-limiting ramp profile reduces belt tension peaks during starting, extending conveyor structure and gearbox service life. In underground mining environments where methane or coal dust creates explosion risk, the 6716864-2B’s compatibility with Ex e and Ex d enclosures allows compliant installation without compromising the soft-starter’s full functionality.

In power generation and transmission, the board manages cooling water pump motors and forced-draft fan drives at thermal power stations. Grid-connected generators demand precise motor starting sequences to avoid voltage dips that could trigger protection relays on adjacent feeders; the DSL’s voltage ramp and current limit modes, governed by the 6716864-2B, deliver the controlled acceleration profiles that grid operators require. At hydroelectric facilities, the board controls auxiliary service pumps and gate actuator motors in environments characterized by high humidity and condensation — conditions the conformal-coated PCB handles without derating.

In water and wastewater treatment, the 6716864-2B manages high-duty-cycle pump motors that start and stop dozens of times per day in response to level sensor signals from a Modicon PLC. Its thermal model accumulator tracks motor heating across rapid restart cycles, preventing thermal damage that would otherwise shorten winding insulation life. Municipal utilities operating under strict uptime SLAs value the board’s self-diagnostic capability, which flags developing faults during scheduled maintenance windows rather than during peak demand periods.

In metallurgy and heavy industry, rolling mill auxiliary drives, ladle transfer car motors, and fume extraction fan systems operate in environments with extreme radiated heat, heavy vibration, and airborne metallic particulates. The 6716864-2B’s robust construction and wide operating temperature tolerance make it a proven choice for these applications, where standard commercial-grade electronics fail prematurely and unplanned downtime carries costs measured in tons of lost production per hour.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, commencing from the date of shipment. If a unit fails within the warranty period, TOPNLMS will provide a replacement or full refund after receiving and inspecting the returned item. Contact [email protected] with your order number and a description of the fault to initiate a claim. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q2: How is each unit tested before shipment?
Every MERLIN GERIN 6716864-2B unit in TOPNLMS inventory undergoes incoming inspection covering visual examination for component damage, solder joint integrity, and PCB surface condition. Functional verification confirms that the board powers up correctly and that key interface signals are present and within specification. Units are then packed in anti-static bags with desiccant and humidity indicator cards, and placed in rigid foam-lined cartons to prevent transit damage. A test report summary is available upon request for critical infrastructure procurement.

Q3: Is the 6716864-2B compatible with my existing DSL soft-starter chassis?
The 6716864-2B is the OEM control board for DSL series soft-starters carrying the model designation DSL-16-25-270-P-A-S20-B. It is a direct drop-in replacement for units with the same model code. Cross-reference numbers 556393 and 810-800961-009 confirm compatibility with specific chassis revisions. If you are unsure whether this board matches your unit’s revision level, please share your full nameplate data with our technical team at [email protected] — we will confirm compatibility before you place an order.

Q4: Can TOPNLMS support long-term supply continuity for maintenance programs?
Yes. TOPNLMS specializes in sourcing and stocking obsolete and hard-to-find industrial automation components, including legacy MERLIN GERIN and Schneider Electric parts that are no longer available through standard distribution channels. We can reserve stock against a blanket purchase order for facilities running planned preventive maintenance programs, and we maintain supplier relationships that allow us to source additional units when market availability is limited. Contact us to discuss a supply agreement tailored to your maintenance schedule and annual consumption forecast.
