MAKINO UP-MF13-A Replacement/Upgrade Solution for UP Series

Product Overview

MAKINO UP-MF13-A Replacement/Upgrade Solution for UP Series: Smooth Transition from Legacy Wire EDM Control Systems

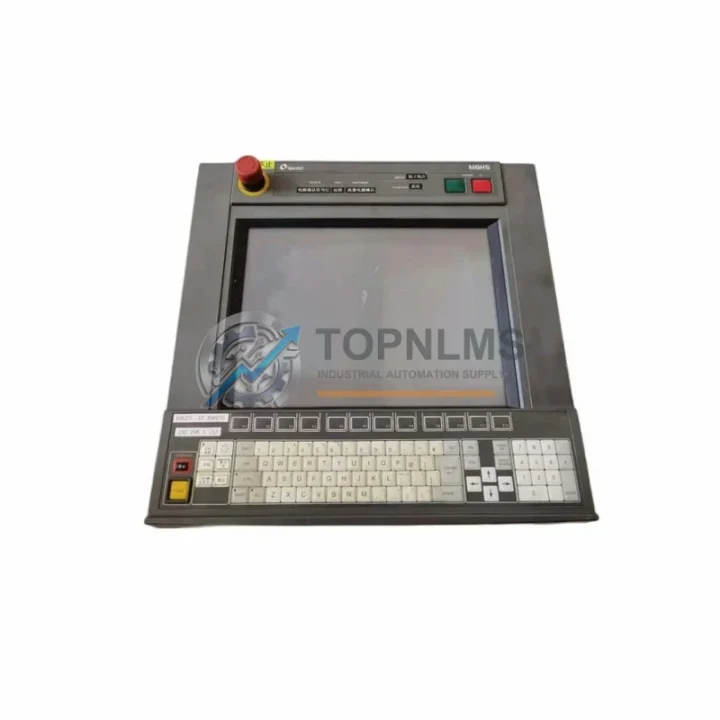

The MAKINO UP-MF13-A is a critical control panel unit used across the MAKINO UP Series wire electrical discharge machining (Wire EDM) platform. As production facilities face increasing pressure to maintain uptime on aging MAKINO wire-cut EDM machines, sourcing a verified replacement or compatible upgrade for the UP-MF13-A has become a priority for maintenance engineers and procurement teams worldwide. TOPNLMS supplies this unit with full pre-shipment inspection, a 12-month warranty, and rapid dispatch from our Xiamen warehouse to minimize your machine downtime.

Whether your original UP-MF13-A has failed due to display degradation, keypad wear, internal PCB faults, or power surge damage, this replacement unit is engineered to restore full machine functionality without requiring reprogramming of your existing NC parameters or modification of your machine’s wiring harness. The UP-MF13-A interfaces directly with the MAKINO UP Series CNC controller architecture, maintaining compatibility with the machine’s existing communication bus and I/O signal routing.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful UP-MF13-A replacement is rarely a standalone task. In most field retrofit scenarios, maintenance teams simultaneously address adjacent components that share the same service interval or have been stressed by the same fault condition that caused the control panel failure. During a typical UP Series control cabinet overhaul, engineers commonly replace or inspect the MAKINO UP Series CNC controller main board alongside the panel unit, since both components share the same internal communication bus and a fault in one often accelerates wear in the other.

The machine’s 24VDC panel power supply module is another component that should be verified during the swap. A degraded power supply is a frequent root cause of control panel failures, and replacing the UP-MF13-A without addressing an unstable supply voltage risks premature failure of the new unit. Similarly, the machine’s I/O interface board — which handles signal exchange between the control panel, the wire feed system, and the dielectric fluid management circuit — should be inspected for relay wear or connector oxidation.

For facilities upgrading from older MAKINO wire EDM models to the UP Series platform, the transition often involves updating the machine’s programming cable and software interface. The MAKINO UP Series uses a specific RS-232 or USB programming cable for NC data transfer and parameter backup; having a verified cable on hand before the panel swap ensures that post-installation parameter verification can be completed without delay. Technicians performing the upgrade should also confirm the condition of the machine’s axis servo drive units, as control panel replacements on aging machines sometimes reveal underlying servo alarm conditions that were previously masked by the faulty panel display.

In multi-machine shops running a mixed fleet of MAKINO wire EDM equipment, it is common to maintain a small buffer stock of critical consumable and wear components: wire guide assemblies, power feed contacts, and flushing nozzle sets. These items have predictable replacement intervals and their availability on-site directly reduces unplanned downtime during and after a control panel retrofit. TOPNLMS can supply these complementary components alongside the UP-MF13-A to support a complete planned maintenance event rather than a reactive emergency repair.

For facilities that operate MAKINO UP Series machines alongside other CNC wire EDM platforms, signal isolation requirements between the machine’s control cabinet and plant-level SCADA or MES systems should be reviewed. Signal isolators or optocoupler interface modules may be required to protect the new control panel from ground loop interference in environments with heavy electrical noise from adjacent EDM generators or large servo drives.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring harness when installing the UP-MF13-A replacement?
A: Yes. The replacement unit uses the same connector pinout and harness routing as the original OEM panel. No rewiring is required. Inspect the harness for insulation wear or connector pin corrosion before reconnecting, particularly if the original panel failure was caused by a power surge.

Q: Will I need to reload NC programs or machine parameters after the panel swap?
A: No. NC programs and machine parameters are stored in the CNC controller, not in the control panel itself. After installing the replacement UP-MF13-A, the machine should resume normal operation with all existing programs and settings intact. A parameter verification check is recommended as a best practice after any control panel replacement.

Q: Is the replacement unit compatible with all variants of the MAKINO UP Series?
A: The UP-MF13-A is designed for use within the MAKINO UP Series Wire EDM platform. If you are unsure whether your specific machine model uses this panel variant, please contact TOPNLMS with your machine serial number and we will confirm compatibility before shipment.

Q: What communication protocols does the UP-MF13-A support?
A: The panel communicates via MAKINO’s proprietary internal CNC bus. No external communication protocol conversion is required for a like-for-like replacement. If your facility requires integration with a plant-level DNC or MES system, this is handled at the CNC controller level, not at the control panel.

Q: How much physical space is required for installation?
A: The replacement unit is dimensionally identical to the original UP-MF13-A. No modification to the control cabinet cutout, panel mounting frame, or door assembly is required. The unit is a direct drop-in fit.

Q: What should I check if the machine does not power on correctly after installing the replacement panel?
A: First verify that the 24VDC panel supply is within specification. Then confirm that all harness connectors are fully seated. Check the CNC controller for any active alarms that may have been triggered during the panel swap. If issues persist, contact TOPNLMS technical support — our team can assist with remote troubleshooting guidance.

Warranty Assurance

Every MAKINO UP-MF13-A unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling after delivery.

Prior to shipment, each unit undergoes a full functional inspection at our Xiamen facility. This includes power-on verification, display and keypad function testing, connector integrity checks, and communication bus signal validation. A test report is available upon request for customers with incoming inspection requirements.

In the event of a warranty claim, TOPNLMS will arrange for the return of the faulty unit and dispatch a replacement within the shortest possible lead time to minimize your production impact. Our after-sales team responds to warranty inquiries within one business day. For urgent situations, expedited replacement dispatch is available — please contact us directly to discuss your timeline.

TOPNLMS maintains stock of the UP-MF13-A and related MAKINO UP Series components to support both planned maintenance programs and emergency breakdown scenarios. We ship globally from Xiamen, with standard lead times of 1–3 business days for in-stock items. Express courier options are available for time-critical requirements.

For procurement teams, we can provide a formal quotation, packing list, commercial invoice, and certificate of origin to support import clearance and internal purchasing approval processes. Payment terms and volume pricing are available for MRO procurement contracts and authorized resellers.
