MADOKA MR-DPD-021 Ruggedized Digital Output Module Harsh Env

Product Overview

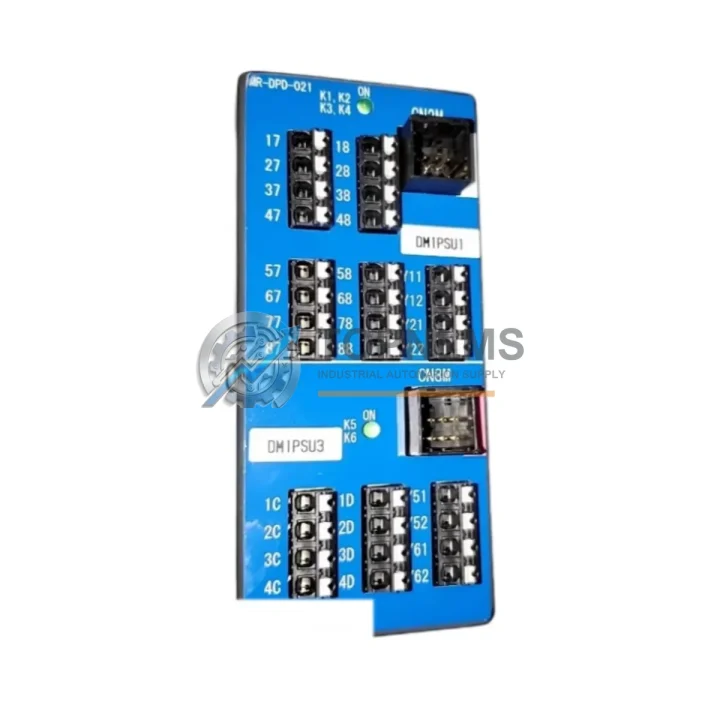

MADOKA MR-DPD-021 Ruggedized Digital Output Module: Industrial Resilience for Harsh Environments

The MADOKA MR-DPD-021 is a high-reliability digital output module engineered for the most demanding industrial automation environments. As a core component of the MADOKA MR-DP Series PLC I/O expansion platform, this module delivers consistent, interference-free discrete output control across continuous production lines, heavy-industry facilities, and safety-critical infrastructure where failure is not an option.

Designed to operate reliably under extreme thermal stress, high-humidity conditions, pervasive industrial dust, mechanical vibration, and intense electromagnetic interference (EMI), the MR-DPD-021 maintains signal integrity and output stability where lesser modules fail. Its ruggedized PCB coating, reinforced terminal block design, and wide operating temperature range make it a trusted choice for engineers specifying control hardware in oil refineries, mining operations, power generation plants, water treatment facilities, and metallurgical processing lines.

Within a MADOKA MR-DP Series control cabinet, the MR-DPD-021 integrates seamlessly alongside companion modules including the MADOKA MR-DPI-021 digital input module, MR-AO-021 analog output module, and MR-AI-021 analog input module, forming a complete, coordinated I/O subsystem. The module communicates reliably with the MADOKA MR-CPU series PLC CPU unit via the internal backplane bus, ensuring deterministic scan-cycle performance even in electrically noisy environments where variable frequency drives (VFDs), high-current contactors, and inductive motor loads generate significant EMI.

For system architects building redundant or safety-instrumented systems (SIS), the MR-DPD-021 pairs effectively with MADOKA MR-PS series industrial power supply modules that provide stable, filtered 24 VDC rail power, and with MR-COM series communication modules supporting Modbus RTU, PROFIBUS-DP, or EtherNet/IP protocols for integration into supervisory SCADA or DCS platforms. When combined with safety relay modules and terminal block assemblies in the same control cabinet, the MR-DPD-021 contributes to a layered protection architecture that meets IEC 61508 functional safety principles.

In high-vibration environments such as mining conveyors, offshore platforms, or heavy press lines, the module’s secure DIN-rail mounting and locking connector design prevent intermittent contact failures — a leading cause of unplanned downtime in harsh-environment PLC installations. The conformal-coated board resists condensation and corrosive airborne particulates, extending mean time between failures (MTBF) and reducing maintenance intervention frequency.

For facilities operating continuous 24/7 production schedules — petrochemical plants, steel mills, cement factories, and municipal water treatment stations — the MR-DPD-021 supports hot-swap-compatible rack architectures (subject to CPU configuration), enabling field replacement without full system shutdown. This capability, combined with the module’s backward compatibility across the MR-DP Series backplane, makes it an ideal long-term spare part investment for maintenance engineers managing aging control system infrastructure.

TOPNLMS maintains verified stock of the MADOKA MR-DPD-021 with full pre-shipment functional testing. Every unit undergoes output channel verification, insulation resistance testing, and communication handshake validation before dispatch. Orders are processed within 1–2 business days, with express international freight options available for urgent plant maintenance requirements.

Rugged Specifications Table

Comprehensive Protection Solutions

The MR-DPD-021 is most effective when deployed as part of a fully integrated MADOKA MR-DP Series control architecture. In a typical control cabinet, the module operates alongside the MADOKA MR-CPU-021 PLC CPU module, which manages program execution and I/O scanning, and the MADOKA MR-DPI-021 digital input module, which reads field sensor signals from limit switches, proximity sensors, and push-button stations. Analog process variables — temperature, pressure, flow — are handled by the MR-AI-021 analog input module and MR-AO-021 analog output module, completing the signal chain from field instrument to control output.

Power integrity is maintained by the MADOKA MR-PS-021 24 VDC power supply module, which provides regulated, surge-protected rail power to the entire I/O rack. For facilities requiring network integration, the MADOKA MR-COM-ETH Ethernet communication module enables SCADA connectivity over EtherNet/IP or Modbus TCP, while the MR-COM-PB PROFIBUS-DP communication module supports legacy DCS integration in brownfield plant upgrades. Safety-critical output loops are further protected by MADOKA safety relay modules and MR-TB terminal block assemblies, which provide galvanic isolation and field wiring termination within the same DIN-rail cabinet footprint.

This cohesive ecosystem ensures that every signal path — from field sensor through I/O module, CPU, communication gateway, and output actuator — is protected against EMI, voltage transients, and environmental degradation, delivering the system-level reliability that continuous-process industries demand.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the MR-DPD-021 controls solenoid valves, motor starters, and alarm annunciators in wellhead automation panels and pipeline SCADA outstations, where ambient temperatures fluctuate widely and explosive-atmosphere zoning demands robust, certified control hardware. The module’s EMI immunity ensures reliable operation adjacent to high-power variable frequency drives controlling pump motors.

In underground and open-cut mining operations, the module manages conveyor belt interlocks, ventilation fan controls, and emergency stop relay circuits in environments saturated with coal dust, silica particulate, and mechanical vibration from blasting and heavy haulage. Its conformal coating and vibration-rated mounting prevent the contact failures that cause costly conveyor stoppages.

At thermal and hydroelectric power generation stations, the MR-DPD-021 participates in turbine auxiliary control panels, cooling water pump sequencing, and transformer protection relay output circuits, where continuous uptime is a grid-stability requirement. In municipal water and wastewater treatment plants, it controls pump station motor contactors, chemical dosing pump actuators, and UV disinfection system outputs across geographically distributed remote I/O panels connected via Modbus RTU over RS-485.

In metallurgical and steel mill environments, the module withstands radiated heat from furnace operations, high-frequency interference from induction heating equipment, and the mechanical shock of rolling mill operations — conditions that validate its ruggedized design credentials for the most severe industrial applications globally.

Security & Quality FAQ

Q1: What warranty coverage is provided for the MADOKA MR-DPD-021?
Every MR-DPD-021 unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with replacement dispatch within 5 business days of fault confirmation. Extended warranty arrangements are available for large-volume procurement contracts.

Q2: How is each unit tested before shipment?
All MR-DPD-021 modules undergo a structured pre-shipment inspection protocol including: (1) output channel functional verification across all 16 channels, (2) insulation resistance testing at rated voltage, (3) backplane communication handshake validation with a reference MADOKA CPU module, and (4) visual inspection for PCB coating integrity and connector seating. A test report is available upon request for quality-assurance documentation.

Q3: Is the MR-DPD-021 compatible with existing MADOKA MR-DP Series installations?
Yes. The MR-DPD-021 is fully backward-compatible with all MADOKA MR-DP Series backplane racks and CPU firmware versions supporting the MR-DP I/O expansion standard. It can be installed as a direct replacement for earlier MR-DPD series digital output modules without CPU program modification, making it the preferred spare-part choice for maintenance engineers managing installed base systems.

Q4: Can TOPNLMS support long-term supply continuity for ongoing maintenance programs?
Yes. TOPNLMS maintains a dedicated industrial automation spare-parts inventory program for MADOKA MR-DP Series components, including the MR-DPD-021. We support blanket purchase orders, scheduled delivery programs, and priority stock reservation for customers with critical infrastructure maintenance requirements. Contact our technical sales team to discuss long-term supply agreements tailored to your plant’s maintenance cycle.
