MAC90 00950C Ruggedized HMI Touch Panel for Harsh Environments

Product Overview

MAC90 00950C Ruggedized HMI Touch Panel: Industrial Resilience for Harsh Environments

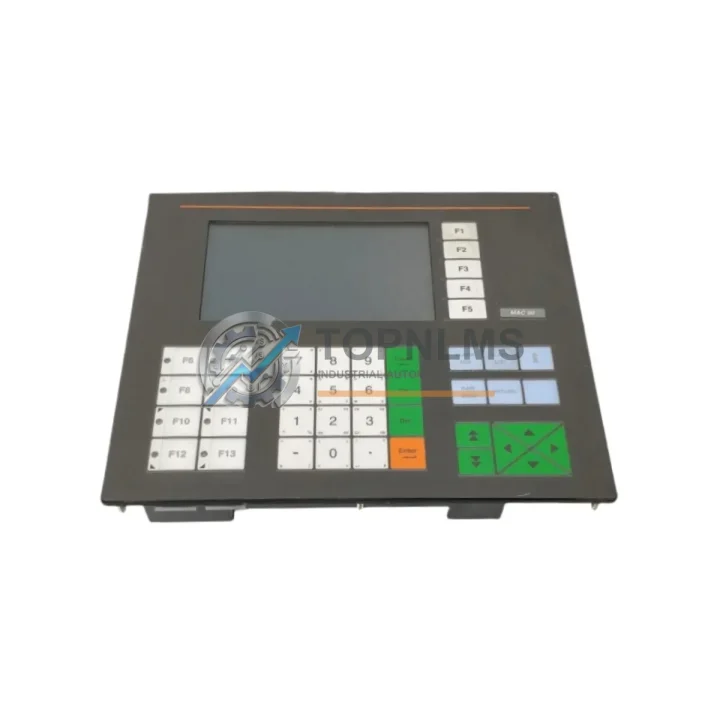

The MAC90 00950C is a ruggedized industrial HMI (Human-Machine Interface) touch panel engineered by MAC90 for deployment in the most demanding industrial environments. Designed to operate reliably under conditions of extreme temperature variation, high humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference, the MAC90 00950C delivers consistent, high-resolution operator control where conventional panels fail. Whether installed in a petrochemical control room, a mining site’s surface control station, a steel mill’s process line, or a water treatment facility’s SCADA enclosure, this unit provides the operator interface reliability that critical infrastructure demands.

Built to MAC90’s industrial-grade manufacturing standards, the 00950C integrates seamlessly into control architectures based on Siemens S7-300 and S7-400 PLCs, Rockwell Automation ControlLogix and CompactLogix systems, and Schneider Electric Modicon M340 and M580 platforms. Its broad communication protocol support — including PROFIBUS DP, PROFINET, Modbus TCP/IP, and EtherNet/IP — ensures compatibility with the widest range of existing plant automation infrastructure without requiring costly protocol converters or gateway devices.

Rugged Specifications Table

Comprehensive Protection Solutions

The MAC90 00950C does not operate in isolation — it is the operator-facing node of a broader, layered control and protection architecture. In a typical heavy-industry control cabinet, the 00950C interfaces directly with a Siemens S7-300 CPU 315-2 DP or a Siemens S7-400 CPU 414-3 PN/DP, exchanging process data via PROFIBUS DP at up to 12 Mbit/s. Alongside the PLC, Siemens ET 200S distributed I/O modules handle field-level signal acquisition — temperature, pressure, flow, and position — feeding real-time data to the HMI for operator visualization and alarm management.

In installations where variable-speed drives are part of the process, the MAC90 00950C provides the operator interface for monitoring and adjusting Siemens SINAMICS G120 or S120 variable frequency drives, enabling precise motor speed control from a single, centralized panel. The HMI’s EMI immunity is particularly critical in these environments, where high-frequency switching noise from VFDs can corrupt data on lesser-grade panels.

Power integrity for the control cabinet is typically maintained by a Siemens SITOP PSU8600 or Phoenix Contact QUINT 4 industrial power supply, delivering clean, regulated 24 VDC to the MAC90 00950C and co-installed components including Siemens SIRIUS 3RK3 safety relay modules and Pilz PNOZ safety controllers. These safety modules monitor emergency stop circuits, light curtains, and interlocks — with the 00950C providing the operator acknowledgment interface for safety-related alarms and resets.

Communication integrity across the plant network is supported by Siemens SCALANCE X industrial Ethernet switches and PROFIBUS repeaters, ensuring that the MAC90 00950C maintains uninterrupted data exchange with the PLC even in electrically noisy environments. Where legacy fieldbus infrastructure is present, Siemens DP/PA couplers bridge PROFIBUS DP and PA segments, extending the HMI’s reach to field instruments in hazardous areas. Terminal connectivity within the cabinet is managed through Phoenix Contact COMBICON or Weidmüller Klippon terminal blocks, providing reliable, vibration-resistant wiring termination for all signal and power conductors connected to the 00950C’s rear interface.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the MAC90 00950C is deployed in wellhead control panels and pipeline SCADA stations where operators require a reliable, readable interface under direct sunlight, salt-laden air, and wide diurnal temperature swings. Its IP65-rated front panel prevents ingress of hydrocarbon mist and fine sand particulates that would degrade unprotected displays within weeks of field deployment.

In underground mining operations, the 00950C is mounted in conveyor control stations and ventilation management panels where coal dust, diesel exhaust particulates, and mechanical shock from blasting operations are constant environmental stressors. The unit’s vibration-rated construction and sealed front panel make it a preferred replacement for aging operator panels on continuous miners and longwall shearer control systems.

In power generation — including thermal, hydroelectric, and combined-cycle gas turbine plants — the MAC90 00950C serves as the local operator panel for turbine control systems, excitation regulators, and auxiliary plant control loops. Its EMC immunity to conducted and radiated interference is essential in generator halls where high-voltage bus bars and large rotating machines generate intense electromagnetic fields.

In water and wastewater treatment facilities, the 00950C is installed in pump station control panels and chemical dosing skids where high ambient humidity, chemical vapors, and frequent washdown cycles demand a panel that can withstand moisture ingress. Operators use the HMI to monitor flow rates, chemical feed rates, and tank levels — with alarm visualization critical to maintaining regulatory compliance for effluent discharge quality.

In metallurgical and steel processing plants, the MAC90 00950C operates in rolling mill control pulpits and continuous casting machine operator stations where radiant heat from molten metal, iron oxide dust, and high-frequency vibration from rolling stands create one of the harshest HMI operating environments in industry. Its extended temperature rating and ruggedized construction make it a reliable long-term replacement for obsolete operator panels on legacy mill control systems.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the MAC90 00950C?
The 12-month warranty covers all manufacturing defects and functional failures arising under normal industrial operating conditions from the date of shipment. If the MAC90 00950C fails due to a verified manufacturing defect within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond the specified input range, or physical impact damage.

Q2: How is the MAC90 00950C tested before shipment?
Every MAC90 00950C unit dispatched by TOPNLMS undergoes a pre-shipment functional inspection that includes power-on verification, touchscreen calibration check, communication port continuity testing, and visual inspection for physical damage. Units that do not pass all inspection criteria are quarantined and not shipped. A test report is available upon request for customers with quality management system requirements.

Q3: Is the MAC90 00950C compatible with my existing PLC and SCADA system?
The MAC90 00950C supports PROFIBUS DP, PROFINET, Modbus TCP/IP, EtherNet/IP, and RS-232/485 communication interfaces, making it compatible with the majority of industrial PLC platforms including Siemens S7-300/400/1200/1500, Rockwell ControlLogix/CompactLogix, Schneider Modicon M340/M580, and Mitsubishi MELSEC Q/L series. For SCADA integration, the unit supports OPC-UA and standard Modbus register mapping. If you require confirmation of compatibility with a specific system configuration, contact our technical team at [email protected] before ordering.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for the MAC90 00950C?
Yes. TOPNLMS maintains dedicated stock of MAC90 00950C units and key MAC90 series accessories to support customers with ongoing maintenance, spare parts, and emergency replacement requirements. For customers operating critical infrastructure where unplanned downtime carries significant operational or safety consequences, we recommend discussing a consignment stock or priority supply agreement with our sales team. Contact us at [email protected] or +86 18359293191 to discuss your long-term supply requirements.
