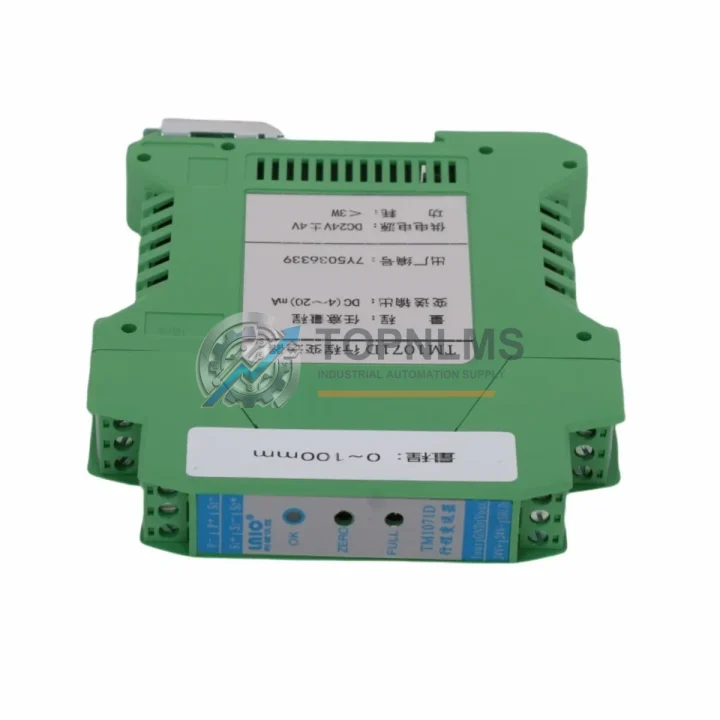

LNIC TM1071D Replacement & Upgrade for TM Series

Product Overview

LNIC TM1071D Replacement & Upgrade Solution for TM Series: Seamless Transition from Legacy Position Sensing Systems

When your existing linear position sensing infrastructure reaches end-of-life or a legacy LNIC TM Series transmitter becomes difficult to source, the LNIC TM1071D Linear Position Transmitter provides a proven, drop-in upgrade path that minimizes engineering rework, reduces downtime, and preserves your existing wiring topology. Designed for demanding industrial environments, the TM1071D delivers a stable 4–20mA analog output signal compatible with virtually every PLC analog input module, DCS controller, and SCADA front-end in service today.

Industrial facilities operating legacy control architectures — including older Siemens S7-300 analog input modules, Rockwell Allen-Bradley 1756-IF16 ControlLogix cards, Mitsubishi Q64AD analog input units, or Yokogawa CENTUM VP field controllers — can integrate the TM1071D without modifying existing signal conditioning circuits. The 4–20mA current loop standard ensures long-distance signal integrity across control cabinet wiring runs, eliminating the noise susceptibility common in voltage-output alternatives.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TM1071D retrofit rarely involves the sensor alone. In practice, field engineers replacing a worn or discontinued position transmitter also audit the surrounding signal chain and control architecture. During a typical TM Series upgrade project, the following components are commonly evaluated or replaced alongside the TM1071D:

On the signal conditioning side, LNIC TM Series signal isolators and loop-powered signal splitters are frequently installed to protect the new transmitter from ground loops when feeding both a PLC analog input card and a local panel meter simultaneously. Where the existing control cabinet uses a 24V DC power supply module — such as a Phoenix Contact QUINT or Siemens SITOP PSU — verifying that the loop supply current budget accommodates the TM1071D’s 4–20mA draw is a standard commissioning step.

On the PLC side, facilities running Siemens S7-1200 SM 1231 analog input modules or Mitsubishi FX5-4AD analog expansion units will find the TM1071D’s 4–20mA output maps directly to the module’s standard current input channel without any scaling hardware. For older Rockwell Allen-Bradley 1746-NI4 SLC 500 analog input cards, the same direct wiring applies — two terminals, loop power from the panel supply, and the existing channel scaling parameters remain unchanged.

In hydraulic and pneumatic cylinder applications, the TM1071D is often installed alongside LNIC TM Series rod-end mounting kits and flexible coupling assemblies to accommodate minor shaft misalignment during stroke. Where the legacy sensor used a multi-pin M12 connector, a field-wireable M12 adapter plug allows the existing cable harness to be reused without cutting or re-terminating wires at the cabinet end.

For facilities upgrading from older potentiometric position sensors (resistive output) to the TM1071D’s current-loop architecture, a resistance-to-current converter module may be temporarily installed in parallel during the transition period, allowing the new and old sensors to run simultaneously for cross-validation before full cutover. This approach is particularly common in continuous-process industries where unplanned shutdowns carry significant production cost.

Finally, where the TM1071D feeds a Yokogawa DX200 paperless recorder or a Honeywell UDC3500 process controller for local display and setpoint control, the 4–20mA signal requires no additional conversion — the recorder’s universal analog input accepts the current signal directly, preserving existing trend archives and alarm setpoints.

Retrofit Guidance FAQ

Q: Can I replace my existing TM Series position transmitter with the TM1071D without rewiring the control cabinet?
A: In most cases, yes. The TM1071D uses a standard 2-wire 4–20mA current loop. If your existing sensor was also a 2-wire current-loop device powered from the same 12–30V DC loop supply, the field wiring and terminal block connections are directly compatible. No additional signal conditioning or wiring modification is required.

Q: Do I need to modify my PLC program or analog input scaling after installing the TM1071D?
A: No re-programming is required if your PLC analog input channel is already scaled for a 4–20mA input representing the full stroke range. The TM1071D outputs a linear 4–20mA signal proportional to displacement, so existing engineering unit scaling (e.g., 0–200mm mapped to 4–20mA) remains valid. Only verify that the channel’s input type is set to current (not voltage) mode.

Q: Is the TM1071D physically compatible with my existing mounting bracket and actuator rod?
A: The TM1071D follows the standard LNIC TM Series mechanical envelope. Mounting flange dimensions, rod-end thread specification, and overall body length are consistent with earlier TM Series revisions, allowing direct mechanical substitution in most actuator and cylinder applications without bracket fabrication or machining.

Q: What communication protocols does the TM1071D support?
A: The TM1071D outputs a standard analog 4–20mA current signal — the universal language of industrial instrumentation. It is inherently compatible with any PLC, DCS, or controller that accepts a current-loop analog input, including systems using PROFIBUS, PROFINET, EtherNet/IP, or Modbus architectures at the controller level. No fieldbus gateway or protocol converter is needed.

Q: How do I verify the TM1071D is functioning correctly after installation?
A: With loop power applied, move the sensor rod through its full stroke range and confirm the output current transitions smoothly from 4mA (retracted) to 20mA (extended) using a calibrated loop calibrator or the PLC’s analog input raw count display. Any non-linearity or signal dropout indicates a wiring issue rather than a sensor fault in the vast majority of field cases.

Q: Can the TM1071D be used in outdoor or wash-down environments?
A: Verify the IP rating of the specific TM1071D variant against your installation requirements. For harsh outdoor or wash-down applications, ensure the cable entry gland is correctly sealed and the connector or terminal block cover is properly torqued. Contact our technical team for environment-specific guidance.

Warranty Assurance

Every LNIC TM1071D shipped from our Xiamen warehouse is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional output verification — the 4–20mA signal is tested across the full stroke range under rated supply voltage to confirm linearity and zero/span accuracy. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, our after-sales team responds within 1 business day. Confirmed defective units are replaced or refunded at our discretion, with return shipping coordinated by our logistics team. We maintain buffer stock of TM Series components specifically to support rapid warranty replacements without extended lead times.

For procurement teams requiring documentation, we provide a shipment test report, packing list, and commercial invoice with each order. Bulk orders above 5 units are eligible for expedited processing and consolidated shipment to reduce per-unit freight cost.

We understand that unplanned downtime in industrial facilities carries direct production cost. Our commitment is to ship verified, in-spec TM1071D units within 2 business days of order confirmation, with DHL Express and FedEx International Priority options available for time-critical replacement scenarios.
