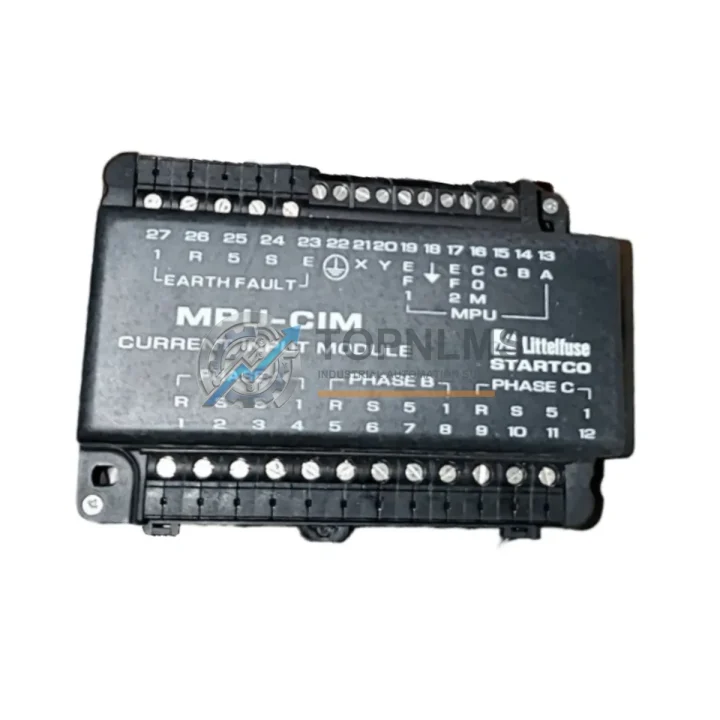

Littelfuse MPU-CIM-00-00 Original Industrial Spare: System Stability & Motor Protection Continuity

The Littelfuse MPU-CIM-00-00 is a dedicated Current Input Module engineered for the MPU Motor Protection Unit series — a field-proven platform widely deployed across industrial motor control centers (MCCs), pump stations, compressor skids, conveyor systems, and process automation lines. When a current sensing channel fails or degrades, the entire motor protection loop is compromised. Sourcing a verified original replacement module is not optional — it is the fastest path back to full protection coverage and system stability.

At TOPNLMS, every MPU-CIM-00-00 unit is sourced from authorized supply channels, individually inspected, and function-tested prior to dispatch. We maintain ready stock to support emergency breakdown orders and planned maintenance schedules alike, with worldwide shipping and a 12-month replacement warranty on every unit.

Critical Technical Specs

Preventive Maintenance Strategy

Motor protection failures rarely occur in isolation. When a maintenance team is called to investigate a motor trip or an MPU fault alarm, the root cause often extends beyond the protection relay itself. A disciplined inspection of the full motor control circuit — from the incoming supply through to the motor terminals — is the most effective way to prevent repeat failures and unplanned downtime.

When replacing or inspecting the MPU-CIM-00-00 Current Input Module, experienced maintenance engineers routinely extend their inspection scope to the associated MPU voltage input module (MPU-VIM-00-00), which monitors phase voltage and provides the relay with the data needed for under/overvoltage and phase-loss protection. A degraded voltage input module can produce nuisance trips or, worse, fail to trip when a genuine fault occurs — making it a natural companion check during any MPU service event.

The current transformers (CTs) feeding the CIM module are another critical inspection point. Loose CT secondary connections, saturated cores, or mismatched CT ratios will produce inaccurate current readings and compromise the protection settings. Verifying CT integrity and terminal torque values at the same time as the CIM replacement eliminates a common source of post-maintenance callbacks.

Within the motor control center cabinet, the MPU base unit itself — including its backplane connectors and DIN rail mounting clips — should be checked for corrosion, mechanical damage, and secure seating. Alongside this, the control power supply module feeding the MPU system deserves attention: an unstable 24VDC or 120VAC control supply is a frequent but overlooked cause of intermittent MPU resets and false alarms.

For facilities running multiple motors on a shared bus, it is good practice to audit the motor circuit protectors (MCPs) or thermal-magnetic circuit breakers in the same panel section during the same maintenance window. Breakers that have operated near their trip threshold repeatedly may have weakened trip mechanisms, and replacing them proactively avoids a future nuisance trip during peak production.

The communication module — if the MPU is integrated into a SCADA or DCS network via Modbus RTU or DeviceNet — should also be verified for firmware version compatibility and communication integrity after any module swap. A module replacement that inadvertently resets communication parameters can cause the motor to drop off the network monitoring system without triggering an alarm.

Finally, the terminal blocks and wiring ferrules connecting the CT secondary circuits, control wiring, and output relay contacts to the MPU should be inspected for thermal discoloration, loose crimps, and insulation degradation. Replacing worn terminal blocks and re-ferrulling conductors at the same time as the CIM module is a low-cost step that significantly extends the service life of the entire protection circuit.

Stocking a small buffer of the MPU-CIM-00-00, the companion VIM module, and a set of spare output relay modules as a matched kit is a proven strategy for facilities that cannot tolerate extended motor downtime. A single kit stored in the maintenance room can restore full motor protection in under 30 minutes — compared to days or weeks waiting for emergency procurement.

Strategic Replacement Solutions

The Littelfuse MPU series has been in service in industrial facilities for over two decades. Many plants are running MPU-32 and MPU-32H units that are no longer in active production, making original spare modules increasingly difficult to source through standard distribution channels. The MPU-CIM-00-00 remains a genuine original module — not a third-party substitute — ensuring full compatibility with existing MPU base units without requiring any parameter re-configuration or firmware updates.

Replacing a failed or suspect CIM module with an original unit preserves the calibrated protection settings stored in the MPU base unit. This is a critical advantage over system-level replacement: the motor’s overload class, trip curves, CT ratio settings, and alarm thresholds remain intact, eliminating the risk of misconfiguration during a high-pressure breakdown repair.

For facilities managing aging motor protection infrastructure, a phased replacement strategy — replacing CIM and VIM modules on a rolling schedule rather than waiting for failure — is significantly more cost-effective than emergency procurement and the associated production losses. The MPU-CIM-00-00 is priced to support this approach, with volume pricing available for multi-unit orders.

TOPNLMS ships from bonded warehouse stock with standard lead times of 3–7 business days for international orders and 1–3 business days for domestic. All units are packed in anti-static protective packaging with individual test records available upon request.
