LinMot S01-72/600 Replacement/Upgrade Solution for S01 Series

Product Overview

LinMot S01-72/600 Replacement/Upgrade Solution for S01 Series: Smooth Transition from Legacy Linear Drive Systems

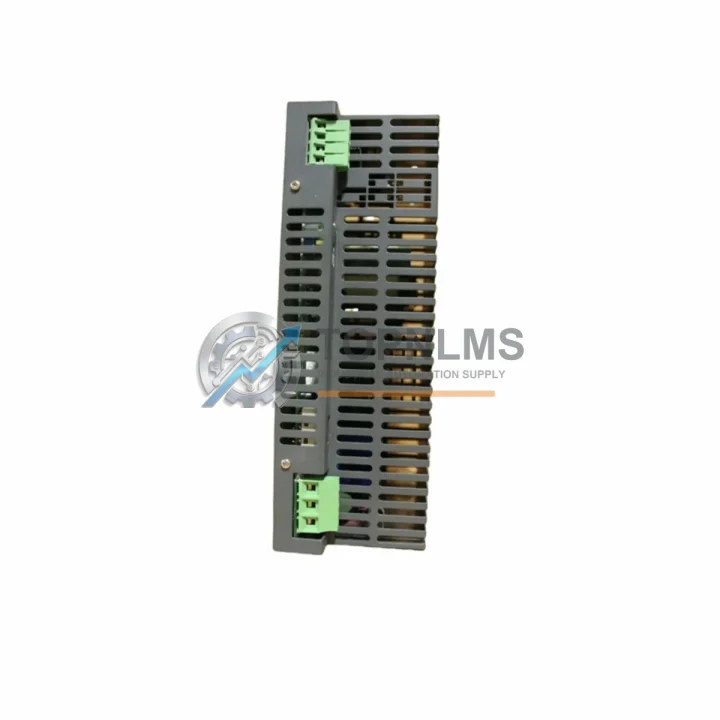

When your existing LinMot linear motor drive system reaches end-of-life or a critical power supply unit fails on the production floor, unplanned downtime is never an option. The LinMot S01-72/600 is a 72 VDC, 600 W dedicated power supply unit engineered specifically for the LinMot S01 Series linear motor servo drives. Whether you are replacing a failed unit in a legacy installation or executing a planned upgrade from an older LinMot PSU variant, the S01-72/600 delivers a verified drop-in solution that preserves your existing wiring harness, cabinet footprint, and control architecture.

Industrial facilities running LinMot linear actuator systems — particularly those built around the LinMot E1200 Series servo controllers or earlier LinMot B1100 drive platforms — frequently encounter the challenge of sourcing a compatible replacement PSU that meets the precise DC bus voltage and peak current demands of the servo loop. The S01-72/600 addresses this directly: its 72 VDC nominal output and 600 W continuous power rating align with the bus requirements of the LinMot P01 and P10 linear motor families, allowing engineers to restore full servo performance without re-engineering the power distribution rail.

For retrofit projects migrating from older 48 VDC bus architectures, the S01-72/600 can serve as the anchor of a staged upgrade. By replacing the legacy PSU first and validating bus stability before swapping out the servo controller or actuator, maintenance teams reduce the risk window and keep the rest of the machine operational during the transition. This approach is particularly effective in multi-axis gantry systems where the LinMot C1100 Series multi-axis controller shares a common DC bus across several drive channels.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful linear motor system migration rarely involves replacing a single component in isolation. When upgrading to or around the S01-72/600, engineers typically address the full drive chain to ensure long-term reliability and eliminate mixed-generation compatibility risks.

On the controller side, facilities transitioning from older LinMot E1100 Series single-axis servo controllers to the current LinMot E1200-GP-XC will find that the S01-72/600 is the correct PSU pairing for the new controller’s 72 V bus input. The E1200 platform supports EtherCAT and CANopen natively, so upgrading the PSU simultaneously with the controller eliminates the need for a second maintenance window. For multi-axis applications, the LinMot C1100-GP-XC multi-axis controller shares the same bus voltage requirement and connects directly to the S01-72/600 output rail.

On the motor side, if the retrofit also involves replacing aging LinMot P01-37x240F or P01-48x240F linear actuators with higher-force P10-70x240F-HP units, the 600 W capacity of the S01-72/600 provides the headroom needed to support the increased peak current demand during acceleration phases — without requiring a larger PSU or additional bus capacitance modules.

Wiring continuity is a common concern during PSU replacement. The S01-72/600 uses the standard LinMot S01 Series DC bus connector pinout, meaning existing bus cables between the PSU and the servo drive do not need to be re-terminated. The AC input side uses a standard IEC C14 inlet, compatible with existing cabinet power feeds. If the installation uses a LinMot terminal block adapter or a third-party signal isolation module on the enable/fault signal lines, these remain fully compatible with the S01-72/600’s digital I/O interface.

For facilities that also need to update their programming environment, the LinMot Talk 6 commissioning software (used with a standard USB-to-RS232 programming cable or the LinMot USB interface adapter) connects to the servo drive — not the PSU — so no software changes are required when swapping the S01-72/600 into an existing installation. Engineers can complete the PSU swap, power up the system, and immediately proceed with drive parameter verification using the existing LinMot Talk session.

In control cabinet installations where space is at a premium, the S01-72/600’s DIN rail footprint matches its predecessor, eliminating the need to re-drill mounting holes or re-route cable trays. If the cabinet also houses a LinMot HMI panel or a third-party operator interface connected via Modbus RTU or Profibus DP to the servo controller, the PSU replacement has no impact on the communication layer — the HMI continues to communicate with the drive controller without reconfiguration.

Retrofit Guidance FAQ

Q: Can I replace my existing LinMot PSU with the S01-72/600 without rewiring the DC bus?
A: Yes. The S01-72/600 uses the standard S01 Series 4-pin DC bus connector. If your existing installation uses the same connector pinout (positive bus, negative bus, PE, and shield), the replacement is a direct swap with no re-termination required. Verify the bus cable rating supports 72 VDC before powering up.

Q: Is the S01-72/600 compatible with LinMot drives running CANopen or EtherCAT?
A: Yes. The S01-72/600 is a DC power supply unit and is protocol-agnostic. It supplies the 72 VDC bus to the servo drive, which independently manages all communication protocols including CANopen, EtherCAT, Profibus DP, and Modbus RTU. Replacing the PSU has no effect on the drive’s communication configuration.

Q: My cabinet uses a 48 VDC bus from an older LinMot system. Can I upgrade to the S01-72/600?
A: A bus voltage upgrade from 48 VDC to 72 VDC requires verifying that all connected drives and motors are rated for 72 VDC operation. LinMot P10 Series motors and E1200 Series drives are 72 V compatible. Older P01 Series motors rated for 48 V must be replaced or de-rated before connecting to a 72 V bus. Contact our technical team for a compatibility assessment before proceeding.

Q: How much DIN rail space does the S01-72/600 require?
A: The S01-72/600 occupies approximately 120 mm of 35 mm TS35 DIN rail — the same footprint as the previous S01 Series PSU variants. No cabinet re-layout or additional mounting hardware is required for a like-for-like replacement.

Q: Do I need to re-commission the servo drive after replacing the PSU?
A: In most cases, no. The servo drive retains its parameter set in non-volatile memory. After installing the S01-72/600 and powering up, verify bus voltage at the drive input terminals, check the drive’s fault log for any bus undervoltage or overvoltage events, and confirm normal operation with a test motion profile. Full re-commissioning is only required if the drive firmware is also being updated as part of the retrofit.

Q: What is the lead time and shipping arrangement?
A: Units are stocked in Xiamen and ship within 1–3 business days of order confirmation. International shipments are dispatched via DHL Express or FedEx International Priority. Export documentation, including commercial invoice and packing list, is provided with every shipment. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

Warranty Assurance

Every LinMot S01-72/600 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional test verifying output voltage regulation, ripple performance, and protection circuit operation (overvoltage, overcurrent, and short-circuit protection). Test records are available upon request for quality-critical procurement processes.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Defective units are collected via prepaid return label, and replacement dispatch is prioritized to minimize production downtime. Our after-sales response target is 24 hours for initial fault assessment and 72 hours for replacement dispatch on confirmed warranty cases.

For procurement teams requiring documentation, we supply a certificate of conformity, packing list, and commercial invoice with every order. Bulk orders and long-term supply agreements are supported with scheduled delivery and reserved stock arrangements. Contact our sales team to discuss framework agreements for ongoing MRO supply.

For technical pre-sales support, compatibility verification, or urgent replacement inquiries, contact us directly:

📧 [email protected]
📞 +86 18359293191
