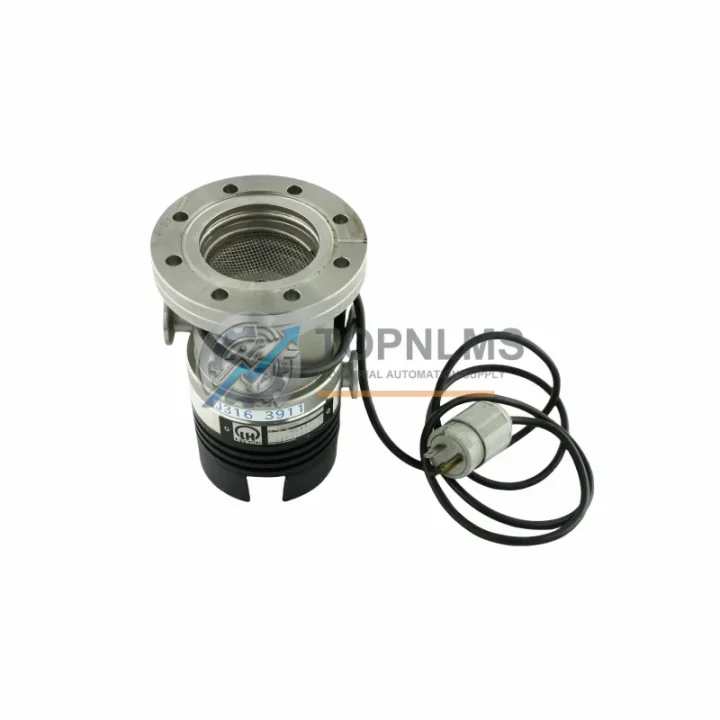

LEYBOLD V50-TURBOVAC50-85406-886304-0 Original Industrial Spare TURBOVAC 50

Product Overview

LEYBOLD V50-TURBOVAC50-85406-886304-0 Original Industrial Spare TURBOVAC 50: System Stability & Maintenance Value

In high-vacuum industrial environments, unplanned downtime caused by a failed turbo molecular pump can cascade into hours of lost production, contaminated process chambers, and costly emergency procurement. The LEYBOLD V50-TURBOVAC50-85406-886304-0 — a genuine original spare for the TURBOVAC 50 series — is engineered to restore vacuum system integrity with a direct, specification-matched replacement. Whether you are managing a semiconductor fab, a thin-film coating line, an analytical instrument cluster, or a research vacuum system, stocking this unit as a certified spare is a proven strategy for minimizing mean time to repair (MTTR) and protecting process continuity.

LEYBOLD’s TURBOVAC 50 platform has been deployed globally across decades of industrial vacuum applications. Its compact footprint, high compression ratio, and compatibility with a wide range of backing pump configurations make it a cornerstone component in many legacy and current-generation vacuum systems. When this pump fails — whether due to bearing wear, rotor imbalance, or electronic drive faults — the fastest path to recovery is a pre-qualified, shelf-ready replacement unit. The V50-TURBOVAC50-85406-886304-0 fulfills exactly that role.

Critical Technical Specs

Preventive Maintenance Strategy

A turbo molecular pump does not fail in isolation. In any well-managed vacuum system, the TURBOVAC 50 operates as part of an interconnected assembly of components — each with its own wear cycle and replacement interval. When scheduling a pump replacement or overhaul, experienced maintenance engineers treat the event as an opportunity to inspect and refresh the entire vacuum train.

Begin with the backing pump — typically a LEYBOLD TRIVAC D4B, SOGEVAC SV10, or equivalent rotary vane unit. A degraded backing pump increases foreline pressure, stresses the turbo stage, and shortens bearing life. If the backing pump oil is discolored or the ultimate pressure has drifted, replace the oil and inspect the shaft seal before reinstalling the turbo. At the same time, inspect the foreline valve (such as the LEYBOLD VAV 16 or equivalent DN 16 angle valve) for seat wear and actuator response — a slow-closing foreline valve during a power interruption can allow atmospheric backstreaming that immediately damages the turbo rotor.

The pump controller or frequency converter — for TURBOVAC 50 systems, this is typically the LEYBOLD TURBOTRONIK NT 10 or TC 110 — should be inspected for firmware currency, connector integrity, and capacitor health. A controller with degraded capacitors may fail to execute a proper soft-stop, causing the rotor to decelerate uncontrolled and contact the stator. Stocking a spare controller alongside the pump unit is a best practice in high-uptime facilities.

Inspect all KF/ISO-K vacuum fittings, centering rings, and O-rings in the foreline and high-vacuum side. Elastomer O-rings (Viton or NBR) degrade over time under thermal cycling and vacuum exposure. A single compromised O-ring at the pump inlet flange will prevent the system from reaching base pressure regardless of pump condition. Replace all seals during a pump swap as a matter of course.

For systems with vacuum gauges — Pirani, Penning, or capacitance manometer types such as the LEYBOLD THERMOVAC or IONIVAC series — verify calibration and sensor cleanliness. A fouled Pirani gauge will misread foreline pressure and may mask a developing pump fault. Similarly, inspect the vent valve (typically a solenoid-actuated DN 16 or DN 25 unit) for response time and seal integrity; a leaking vent valve causes slow pump-down and elevated base pressure.

In systems where the TURBOVAC 50 feeds a process chamber, also review the gate valve or butterfly valve isolating the chamber from the pump. Valve seat wear or actuator drift can introduce virtual leaks that are frequently misdiagnosed as pump degradation. A structured inspection checklist covering the pump, controller, backing pump, all valves, all seals, and all gauges — executed at each pump replacement interval — is the most cost-effective way to prevent repeat failures and extend the operational life of the entire vacuum system.

Strategic Replacement Solutions

The LEYBOLD TURBOVAC 50 series has been in production and field deployment for an extended period, meaning many installed units are now operating beyond their original design service life. For facilities running legacy vacuum systems, the V50-TURBOVAC50-85406-886304-0 provides a direct, drop-in replacement path that avoids the cost and complexity of a full system redesign.

Unlike aftermarket or refurbished alternatives, an original LEYBOLD spare maintains full compatibility with the existing TURBOTRONIK or TC-series controller interface, preserving all soft-start, speed ramp, and fault-protection logic. This is critical in regulated environments — semiconductor fabs, pharmaceutical coating lines, and calibration laboratories — where process qualification is tied to specific equipment configurations. Substituting a non-OEM pump may trigger a requalification event that costs far more than the price difference between original and aftermarket parts.

For facilities managing multiple vacuum systems, establishing a strategic spare inventory of one or two V50-TURBOVAC50-85406-886304-0 units reduces emergency procurement lead times from weeks to hours. Combined with a documented swap procedure and a pre-tested spare controller, this approach can reduce vacuum-related downtime events by a significant margin. The 12-month warranty from date of shipment provides additional assurance that shelf-stored units remain covered through their initial deployment window.

When retiring an aging TURBOVAC 50 unit, retain the housing and flange hardware for use as a dimensional reference during installation of the replacement — particularly useful when the original installation documentation is no longer available. Verify rotor spin-up time and ultimate pressure within 24 hours of installation to confirm the replacement unit is performing within specification before returning the system to production.

Support FAQ

Q1: Is the V50-TURBOVAC50-85406-886304-0 a genuine original LEYBOLD part?
Yes. This unit is sourced as an original LEYBOLD spare, not a refurbished or aftermarket substitute. It carries a 12-month warranty from the date of shipment and is supplied with basic inspection documentation. For applications requiring full traceability, contact us prior to ordering.

Q2: Which LEYBOLD controllers are compatible with this pump?
The TURBOVAC 50 is designed to operate with LEYBOLD TURBOTRONIK NT 10, TC 110, and TC 600 series frequency converters. Compatibility with third-party variable-frequency drives is not recommended without engineering review, as incorrect ramp profiles can damage the ceramic hybrid bearings.

Q3: What is the lead time and how is the unit tested before shipment?
In-stock units are dispatched within 1–3 business days. Each unit undergoes a pre-shipment inspection covering physical integrity, connector condition, and rotor freedom of movement. Full spin-up testing under vacuum is available on request for critical applications. Export packaging is designed for international air and sea freight.

Q4: Can this unit replace older TURBOVAC 50 variants with different part suffixes?
The 886304-0 suffix designates a specific configuration within the TURBOVAC 50 family. For cross-compatibility with other suffix variants, provide your existing pump’s full part number and controller model for engineering review before ordering. In most cases, dimensional and electrical compatibility is maintained across the TURBOVAC 50 generation, but confirmation is recommended for regulated process environments.
