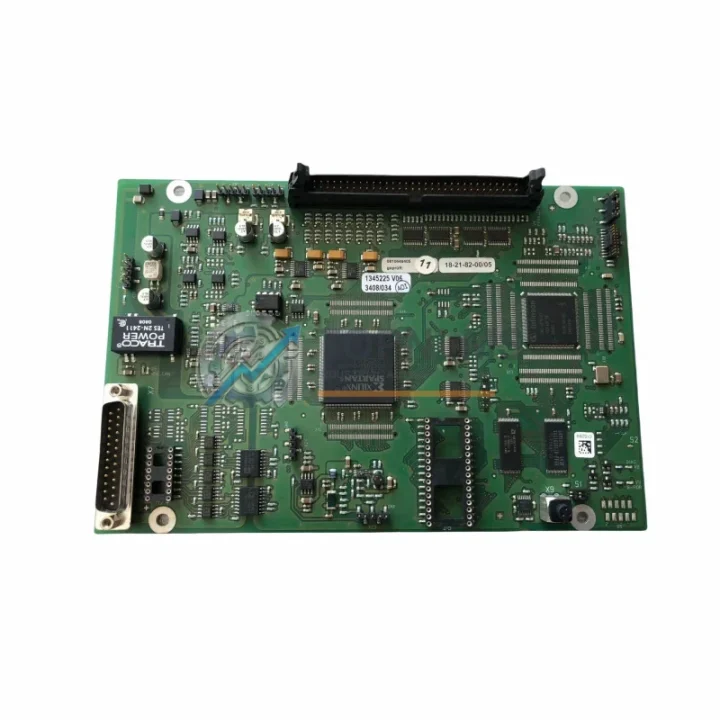

Leuze TLS-18-21-82-01-V02 Ruggedized Safety Scanner Module

Product Overview

Leuze TLS-18-21-82-01-V02 Ruggedized Safety Scanner Module: Industrial Resilience for Harsh Environments

The Leuze Electronic 18-21-82-00/05 TLS-18-21-82-01-V02 is a ruggedized safety laser scanner engineered for continuous, reliable operation in the most demanding industrial environments. Designed as part of Leuze’s proven TLS-18 series, this control unit delivers precision area monitoring and personnel protection across applications where conventional sensors fail — including high-temperature production lines, dusty mining galleries, vibration-intensive heavy machinery platforms, and electromagnetically noisy power distribution environments.

Industrial safety systems cannot afford downtime. The TLS-18-21-82-01-V02 is built to IEC 61496 safety standards and integrates seamlessly into safety-rated control architectures, making it a trusted component for machine guarding, access control, and hazardous zone monitoring in critical infrastructure worldwide.

Rugged Specifications Table

Comprehensive Protection Solutions

The TLS-18-21-82-01-V02 does not operate in isolation — it is a cornerstone component within a layered industrial safety and control architecture. In a typical heavy-industry control cabinet, this scanner interfaces directly with Pilz PNOZ X safety relays and Siemens ET 200SP distributed I/O modules to deliver dual-channel OSSD signals that halt machinery within milliseconds of a safety field breach. Paired with a Siemens S7-1500 PLC running STEP 7 Safety Advanced, the TLS-18 series scanner enables certified safe-state logic without additional hardware redundancy.

For power conditioning in harsh environments, the scanner is typically powered through a Phoenix Contact QUINT 24 V DC industrial power supply, which provides regulated, surge-protected DC power even under severe load fluctuations. Surge protection modules such as the Weidmüller VPU AC X 1 385V/40kA are commonly installed upstream to shield the entire panel from transient overvoltages common in substations and motor drive environments.

Communication between the TLS-18-21-82-01-V02 and the host PLC is often routed through Profibus DP or PROFINET IO communication modules — such as the Siemens CP 343-1 or CP 1543-1 — ensuring deterministic, low-latency data exchange even in electromagnetically noisy environments. In applications requiring functional safety over fieldbus, the scanner integrates with PROFIsafe-capable I/O modules for end-to-end certified safety communication.

Variable frequency drives (VFDs) such as the Siemens SINAMICS G120 or Allen-Bradley PowerFlex 755 are frequently deployed alongside this scanner in conveyor and robotic cell applications. The TLS-18 scanner’s warning field output can be wired to the VFD’s speed-reduction input, enabling a two-stage protective response: speed reduction on warning field entry, and full stop on safety field breach — all without PLC intervention latency.

Terminal blocks from Phoenix Contact or Wago 750 series are the standard wiring interface within the control cabinet, providing reliable, vibration-resistant connections for the scanner’s I/O and power conductors. For applications in ATEX Zone 2 or NEC Class I Div 2 classified areas, the scanner is paired with Pepperl+Fuchs Zener barriers or galvanic isolators to maintain intrinsic safety compliance.

Application in Critical Infrastructure

In oil and gas processing facilities, the TLS-18-21-82-01-V02 is deployed at compressor station access points and pipeline pig launcher/receiver areas, where personnel protection must be maintained 24/7 without false trips caused by airborne particulates or condensation. Its IP65 housing and high-immunity EMC design ensure uninterrupted operation even adjacent to high-voltage switchgear and variable-speed pump drives.

In underground mining operations, the scanner is mounted on continuous miners and longwall shearers to enforce exclusion zones around rotating cutting heads. The unit’s 190° scanning angle and configurable multi-field capability allow simultaneous monitoring of the cutting zone and the operator walkway, reducing the risk of crush injuries without impeding production throughput.

At power generation and electrical substation sites, the TLS-18 series scanner guards high-voltage switchgear bays and transformer maintenance corridors. Its resistance to electromagnetic interference from high-current bus bars and switching transients makes it one of the few safety scanners suitable for direct deployment in GIS (Gas-Insulated Switchgear) environments.

In water and wastewater treatment plants, the scanner monitors pump hall access and chemical dosing station perimeters. Its sealed optics resist the corrosive chlorine and ammonia atmospheres common in treatment facilities, while its low-maintenance design reduces the total cost of ownership over multi-year operational cycles.

For metallurgical and steel mill applications, the TLS-18-21-82-01-V02 is installed on rolling mill entry/exit gates and ladle transfer car paths. Operating reliably at ambient temperatures up to 50 °C and tolerating radiant heat from nearby furnaces, it provides the safety interlocking required by EN ISO 13849-1 for Category 3 / PLd machine guarding.
