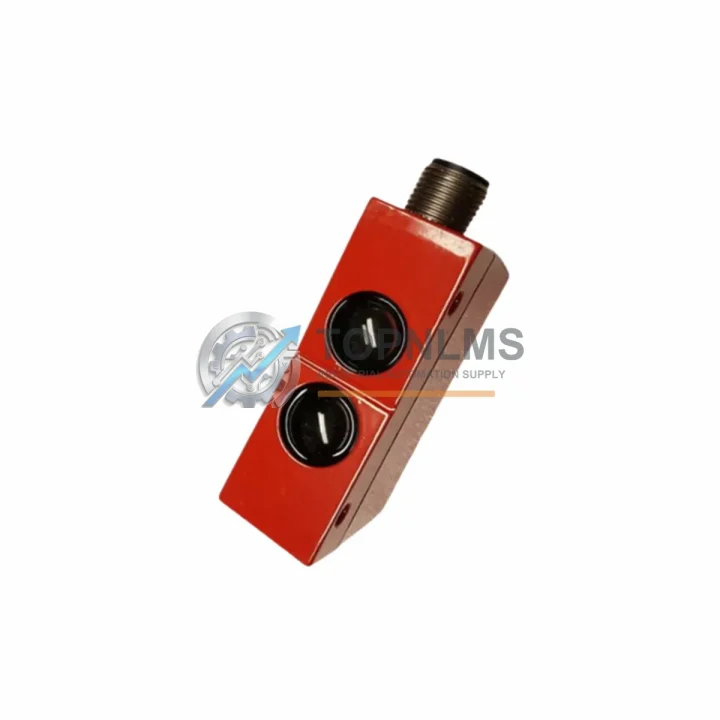

LEUZE IFRK 93/4-100 L.2 Replacement for IFRK 93 Series

Product Overview

LEUZE IFRK 93/4-100 L.2 Replacement Solution for IFRK 93 Series — Smooth Transition, Zero Compromise

When a retroreflective photoelectric sensor fails on a production line, every minute of unplanned downtime translates directly into lost output and escalating maintenance costs. The LEUZE IFRK 93/4-100 L.2 is a proven, original-specification replacement for the IFRK 93 Series, engineered to restore detection reliability without requiring rewiring, reprogramming, or mechanical modification to your existing sensor bracket or control cabinet layout. Whether you are managing a scheduled overhaul, responding to an emergency fault, or building a forward-looking spare parts inventory, this unit delivers the compatibility and confidence your operation demands.

The IFRK 93/4-100 L.2 is a diffuse-with-background-suppression retroreflective sensor from LEUZE’s established IFRK 93 family. It operates on a standard 10–30 V DC supply, making it directly interchangeable with the majority of existing IFRK 93 installations without any power supply modification. The M12 connector interface is fully compatible with existing sensor cables already routed in your cable tray or conduit, eliminating the need to re-pull wiring during a time-critical replacement. The sensing range of 100 mm with the integrated retroreflector provides reliable object detection in conveyor, packaging, and assembly line environments where precise, repeatable switching is essential.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful sensor replacement on a live production line is rarely about the sensor alone. When replacing the IFRK 93/4-100 L.2, maintenance engineers should take the opportunity to inspect and, where necessary, upgrade the surrounding components that directly affect sensor performance and system reliability.

Begin with the M12 sensor connection cable — after years of service, the cable jacket and connector contacts are often the first point of failure, not the sensor itself. Replacing the sensor while reusing a degraded cable introduces unnecessary risk. LEUZE-compatible M12 4-pin straight and angled cables are available in standard lengths and should be stocked alongside the sensor as a paired spare.

Next, verify the condition of the retroreflector (reflector plate) paired with this sensor. The IFRK 93/4-100 L.2 relies on a matched reflector for accurate detection. A scratched, contaminated, or misaligned reflector will degrade switching reliability even with a brand-new sensor installed. LEUZE TK series reflectors are the recommended pairing for IFRK 93 family sensors.

At the control cabinet level, the sensor’s discrete output connects to a digital input module on your PLC or safety controller. If your system uses a Siemens S7-300 or S7-1200 series controller, confirm that the SM 321 or SM 1221 digital input module is functioning correctly and that the input channel assigned to this sensor is not showing intermittent faults. A faulty input channel can mimic a sensor failure and lead to unnecessary replacements.

For installations where the sensor signal passes through a terminal block or marshalling panel, inspect the screw terminals and DIN rail-mounted terminal strips for oxidation or loose connections. Phoenix Contact or Weidmüller terminal blocks in older cabinets may require re-torquing or replacement after extended service cycles.

If your facility is upgrading from a legacy discrete-wiring architecture to an IO-Link master module, the IFRK 93 Series supports IO-Link on select variants, enabling parameterization, diagnostics, and process data transmission over a standard 3-wire unshielded cable. This upgrade path eliminates the need for separate signal conditioners and simplifies cabinet wiring significantly.

In conveyor and packaging applications, the IFRK 93/4-100 L.2 frequently operates alongside LEUZE BCL barcode readers or LEUZE MLD safety light curtains within the same machine cell. During a sensor replacement, it is good practice to verify the alignment and cleanliness of these adjacent detection devices to avoid a secondary fault call shortly after the primary repair is completed.

Finally, for facilities managing a broader sensor fleet, consider stocking the LEUZE IFRK 93/4-200 L.2 (extended range variant) and the LEUZE PRK 93/4 series (polarized retroreflective) as complementary spares. Standardizing on the IFRK 93 and PRK 93 families across similar machine types reduces the number of unique part numbers in your MRO inventory and simplifies technician training.

Retrofit Guidance FAQ

Q1: Can I replace my existing IFRK 93 sensor with the IFRK 93/4-100 L.2 without modifying the wiring?
Yes. The IFRK 93/4-100 L.2 uses the same M12 4-pin connector pinout and the same 10–30 V DC supply voltage as all standard IFRK 93 variants. Disconnect the old sensor, connect the new unit to the existing cable, and restore power. No rewiring, no PLC program changes, and no parameter adjustments are required for a like-for-like replacement.

Q2: Does this sensor require any PLC program modification after installation?
No. The IFRK 93/4-100 L.2 is a discrete switching sensor. It presents the same electrical behavior — PNP or NPN switching output — to the PLC digital input module as the original unit. The PLC program does not need to be modified. If you are upgrading to an IO-Link variant, a brief parameterization step via the IO-Link master is required, but this does not affect the ladder logic or function block structure.

Q3: What should I check if the replacement sensor does not switch correctly after installation?
First, verify reflector alignment — the retroreflector must be positioned within the sensor’s specified angular tolerance. Second, check the M12 cable for continuity and correct pinout. Third, confirm the PLC input channel is active and not in a fault state. Finally, ensure the sensing range is appropriate for the target object size and material; highly transparent or specular objects may require sensitivity adjustment.

Q4: Is the physical mounting footprint identical to the original IFRK 93 unit?
Yes. The IFRK 93/4-100 L.2 shares the same compact rectangular housing dimensions and M4/M5 mounting hole pattern as the standard IFRK 93 series. It installs directly into the existing sensor bracket without any mechanical modification, making it suitable for space-constrained control cabinet doors, conveyor side frames, and machine guarding panels.

Warranty Assurance

Every LEUZE IFRK 93/4-100 L.2 unit shipped from TOPNLMS undergoes a pre-shipment functional test covering switching output verification, supply voltage tolerance, and connector integrity. Units are packed in anti-static protective packaging with individual inspection documentation.

12-Month Warranty: All units carry a 12-month warranty from the date of shipment. If a unit fails under normal operating conditions within the warranty period, TOPNLMS will arrange a replacement or refund — no lengthy RMA process, no hidden conditions.

Fast Dispatch: In-stock units are dispatched within 1–2 business days. Express shipping options are available for emergency breakdown situations. Worldwide delivery is supported with full tracking.

Technical Support: Pre-purchase compatibility verification and post-installation technical queries are supported via email and phone. Our team can assist with pinout confirmation, reflector selection, and IO-Link parameterization guidance.

Procurement Assurance: TOPNLMS specializes in original and compatible industrial automation spare parts for maintenance engineers and procurement teams managing aging or discontinued equipment. We maintain stock of hard-to-source LEUZE sensors, enabling you to resolve breakdowns quickly without being forced into premature machine upgrades.
