LENZE P30GAH90300F3G0XXX-02S3C018000 8400 PROTEC Upgrade Solution

Product Overview

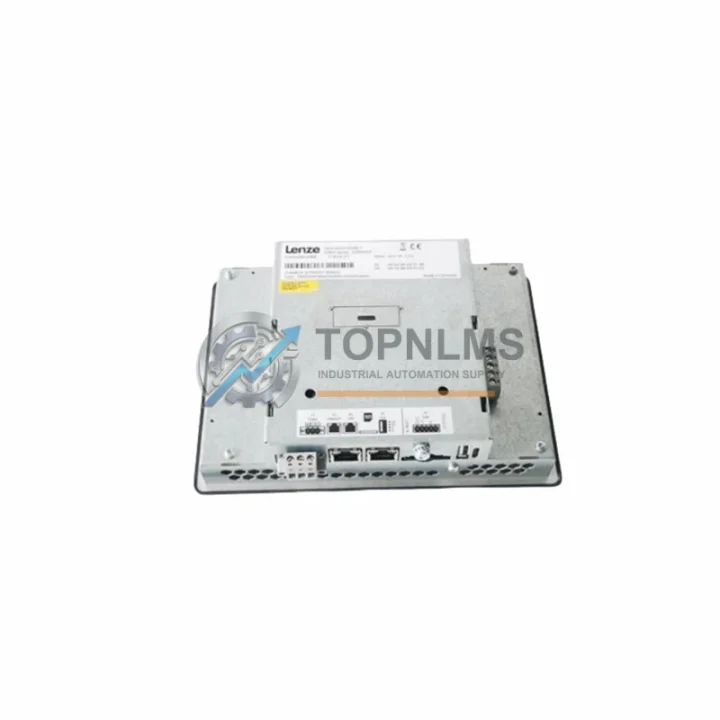

LENZE P30GAH90300F3G0XXX-02S3C018000 8400 PROTEC Operator Panel: Seamless Upgrade & Replacement Solution

When your existing LENZE 8400 PROTEC drive system requires an operator panel replacement or a controlled migration from an earlier-generation interface, the P30GAH90300F3G0XXX-02S3C018000 delivers a fully compatible, drop-in upgrade path. Designed for the LENZE 8400 PROTEC frequency inverter family, this operator panel preserves your existing wiring topology, parameter structure, and cabinet footprint — minimising engineering rework and unplanned downtime on the production floor.

Industrial facilities running legacy LENZE 8200 vector or 8200 motec drives often face the challenge of sourcing discontinued operator interfaces. The P30GAH90300F3G0XXX-02S3C018000 bridges that gap: its RJ45-based system bus connection is electrically compatible with the standard LENZE system bus (CAN-based) used across the 8400 PROTEC platform, meaning existing fieldbus wiring — including connections to a LENZE EL100 or EL200 keypad — can typically be retained without re-termination. Engineers migrating from an older E82ZBBXC keypad or a third-party HMI panel will find the parameter upload/download workflow familiar, as the panel supports direct drive parameterisation via the integrated keypad and display.

For sites upgrading from a LENZE 8400 BaseLine or 8400 StateLine inverter to the PROTEC variant, the operator panel mounting interface is standardised across the 8400 product family. The panel clips directly onto the inverter front face without additional brackets, preserving control cabinet door cutout dimensions and DIN rail spacing. This is particularly valuable in retrofit projects where cabinet real estate is constrained and re-machining enclosure doors is not feasible.

Communication protocol compatibility is a critical consideration in any drive migration. The P30GAH90300F3G0XXX-02S3C018000 supports the LENZE system bus protocol natively, and when used alongside a LENZE E94AYCPM CANopen communication module or an E94AYCEPM EtherCAT module mounted on the same 8400 PROTEC inverter, the operator panel coexists without conflict. Sites running PROFIBUS DP via a LENZE E94AYCPB module, or PROFINET via E94AYCPN, will find that the operator panel operates independently of the fieldbus layer — parameter access through the panel remains available even when the drive is under active fieldbus control.

Power supply requirements for the P30GAH90300F3G0XXX-02S3C018000 are drawn directly from the inverter’s internal 5 V logic rail through the panel connector, eliminating the need for an external 24 V supply to the panel itself. This simplifies cabinet wiring and reduces the component count compared to standalone HMI solutions. For applications where the operator panel must be remotely mounted away from the inverter — for example, on a control cabinet door — the LENZE remote mounting kit and extension cable (compatible with the 8400 PROTEC panel interface) can be used without modification to the panel firmware or drive parameters.

During commissioning and field retrofit, the panel’s parameter copy function allows technicians to upload a complete parameter set from a reference drive and download it to a replacement unit in minutes. This is especially useful when replacing a failed inverter in a multi-drive system where identical 8400 PROTEC units — such as those paired with LENZE MF three-phase motors or geared motors from the LENZE GST or GKS series — must be brought back online quickly to restore production. The panel’s fault history display and real-time monitoring of output frequency, motor current, and DC bus voltage further accelerate fault diagnosis during startup.

For system integrators managing a broader migration from a legacy LENZE 9300 servo inverter platform or a LENZE ECS servo controller to a modern 8400 PROTEC-based architecture, the operator panel serves as the primary local interface during the transition period before SCADA or PLC-level control is fully commissioned. Integration with a Siemens S7-300 or S7-1200 PLC via PROFIBUS or PROFINET, or with an Allen-Bradley CompactLogix via EtherNet/IP through a third-party gateway, is supported at the inverter level — the operator panel remains the local override and diagnostic interface throughout.

TOPNLMS maintains stock of the P30GAH90300F3G0XXX-02S3C018000 and associated 8400 PROTEC accessories. Each unit is inspected and function-tested prior to dispatch. Orders are typically shipped from Xiamen within 1–3 business days, with DHL Express, FedEx International Priority, and sea freight options available depending on order volume and destination. A 12-month warranty is provided on all units, covering manufacturing defects and functional failure under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete 8400 PROTEC migration typically involves more than the operator panel alone. When replacing a failed or obsolete panel, engineers frequently source the following components in the same procurement cycle to ensure system continuity:

The LENZE 8400 PROTEC inverter itself — available in power ratings from 0.25 kW to 90 kW — is the host platform for this panel. Sites upgrading from an 8200 vector drive will need to verify the inverter power rating and motor cable cross-section before finalising the replacement. The LENZE E94AYCPM CANopen communication module and E94AYCPB PROFIBUS DP module are commonly ordered alongside the operator panel for sites integrating the drive into an existing fieldbus network. For EtherCAT-based architectures, the E94AYCEPM EtherCAT module provides deterministic real-time communication without affecting operator panel functionality.

Power supply integrity is equally important during a retrofit. The LENZE PSL series 24 V DC power supply is frequently used to power control logic and I/O modules within the same cabinet, while signal isolation between the drive and PLC I/O is handled by DIN-rail-mounted signal isolators. For multi-axis systems, the LENZE 8400 PROTEC mains choke and output filter are standard additions to suppress EMC interference and protect motor insulation — particularly relevant when long motor cables are retained from the legacy installation. Finally, the LENZE GFX parameter software (PC-based) complements the operator panel by enabling offline parameter editing, drive diagnostics, and firmware updates via USB, making it an essential tool for commissioning engineers managing a fleet of 8400 PROTEC drives across a facility.

Retrofit Guidance FAQ

Q: Can I reuse my existing motor and power wiring from the 8200 vector installation?
A: In most cases, yes. The 8400 PROTEC uses standard IEC terminal designations (L1/L2/L3 input, U/V/W output, PE). Verify cable cross-section against the new inverter’s rated current. Motor cables up to 50 m can typically be reused without an output filter; longer runs require an output choke or sine filter.

Q: Will my existing PROFIBUS DP network work with the 8400 PROTEC?
A: Yes, with the E94AYCPB PROFIBUS DP module installed. The drive’s GSD file must be loaded into your PLC engineering tool (e.g., Siemens TIA Portal or Step 7). Existing telegram structures from the 8200 vector may need to be remapped — LENZE application notes provide a parameter migration table.

Q: Does the operator panel retain parameters after a power cycle?
A: Yes. Parameters are stored in non-volatile memory within the inverter. The operator panel displays the stored values on power-up and does not require re-entry after a power interruption.

Q: How do I transfer parameters from the old drive to the new unit?
A: Use the panel’s parameter copy function: upload from the source drive, remove the panel, attach it to the replacement inverter, and download. Alternatively, use LENZE GFX software to save and restore parameter files via PC.

Q: Is the physical mounting cutout the same as the 8400 BaseLine panel?
A: Yes. The 8400 PROTEC operator panel uses the same front-face snap-fit interface across the 8400 family. No cabinet door modification is required when upgrading between 8400 variants.

Q: What is the lead time and shipping method?
A: In-stock units ship within 1–3 business days from Xiamen. DHL Express typically delivers to Europe in 3–5 days and to North America in 4–6 days. Sea freight is available for bulk orders.

Warranty Assurance

Every P30GAH90300F3G0XXX-02S3C018000 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional inspection including power-on verification, display check, and keypad response test. Units that do not meet our quality standard are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit or issue a refund, subject to inspection of the returned item. Our after-sales team responds to warranty enquiries within 1 business day. Customers are advised to retain the original packaging and test report supplied with each shipment to facilitate any warranty process.

For procurement teams requiring documentation, we can provide a product test report, packing list, and commercial invoice with each order. Letter of credit (L/C) and T/T payment terms are available for qualified buyers.
