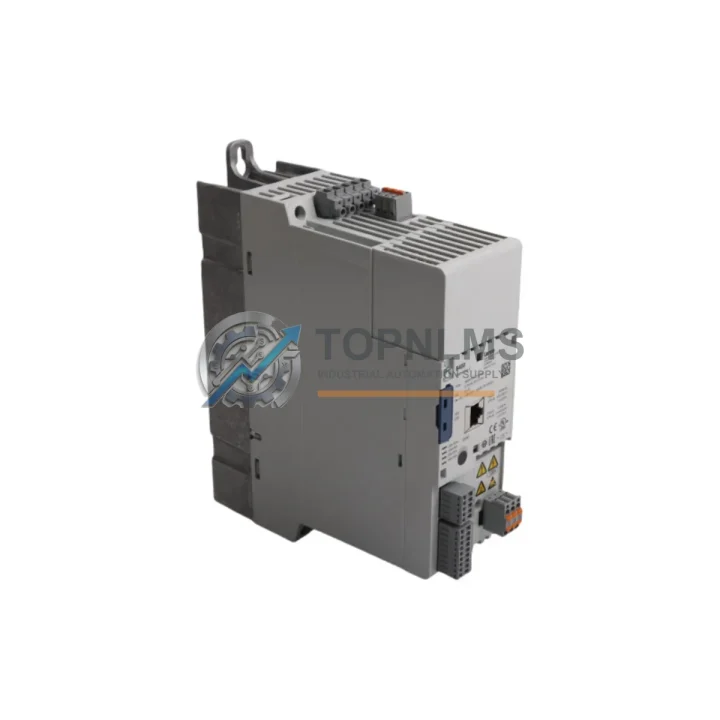

Lenze E84AVSCE7514SX0 Replacement for 8400 StateLine: Smooth Migration from Legacy AC Drive Systems

The Lenze E84AVSCE7514SX0 is a 7.5 kW AC variable frequency drive from the Lenze 8400 StateLine series — a compact, high-performance drive platform widely deployed in conveyor systems, pump stations, fan control, and general-purpose machine automation across Europe and Asia. As legacy 8400 StateLine units reach end-of-service life or suffer field failures, sourcing a verified replacement with confirmed wiring compatibility, matched communication protocol support, and equivalent control architecture is critical to minimizing unplanned downtime.

TOPNLMS maintains ready stock of the E84AVSCE7514SX0 and its closely related variants, pre-tested and shipped with full documentation to support direct panel swap-out or phased system migration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 8400 StateLine migration rarely involves the drive alone. In most retrofit projects, the E84AVSCE7514SX0 is installed alongside a set of complementary components that ensure the new drive integrates cleanly into the existing control cabinet and machine architecture.

For sites running a Lenze 8400 HighLine or 8400 TopLine controller as the master axis, the StateLine drive connects via the system bus (CAN) without requiring changes to the PLC program structure — the drive node address and object dictionary remain compatible. Where the upstream controller is a third-party PLC such as a Siemens S7-300 or S7-1200, the optional PROFIBUS DP communication module (E84AYCPM) slots into the drive’s option port and allows the existing GSD file and DP master configuration to be reused with minimal modification.

On the power side, the E84AVSCE7514SX0 is typically paired with a Lenze EMC filter (E84AYCEF series) and a line choke to suppress conducted emissions and protect upstream switchgear. If the existing cabinet already houses these components for the outgoing drive, they can generally be retained, as the input impedance and filter ratings are matched to the 7.5 kW power class.

Terminal wiring is a key concern during any drive swap. The E84AVSCE7514SX0 uses the same X1 (power), X2 (motor), and X3 (control terminal) layout as earlier 8400 StateLine units in the same power range, allowing the existing cable harness to be reconnected without re-labeling or re-routing. For sites using a Lenze keypad (E82ZBE) for local parameter entry and fault display, the keypad connects directly to the new drive’s front port and retains its parameter upload/download function.

Where the machine uses a Lenze HMI panel (p300 or p500 series) for operator interface, the HMI communication link over CANopen or RS-485 remains unaffected by the drive replacement, provided the node ID and baud rate settings are transferred from the outgoing unit using Lenze Engineer software before decommissioning. Signal isolators or terminal blocks (such as Phoenix Contact MINI MCR or Weidmüller analog signal conditioners) installed between the PLC analog output and the drive’s frequency setpoint input do not require recalibration if the drive’s analog input scaling parameters are restored from a saved parameter set.

For sites managing a broader panel retrofit — replacing not just the drive but also the I/O expansion modules, 24 V DC power supply units, and safety relay modules — TOPNLMS can source matched components to support a complete control cabinet rebuild, reducing the number of suppliers and simplifying incoming inspection.

Retrofit Guidance FAQ

Q: Can I reuse the existing motor cable and contactor when replacing the drive?
A: Yes, in most cases. The E84AVSCE7514SX0 is rated for the same motor power class and uses identical output terminal sizing. Verify that the cable cross-section meets the drive’s output current rating and that the contactor (if used) is positioned on the input side only — output-side contactors must not switch under load with VFDs.

Q: Do I need to re-commission the drive from scratch or can I restore parameters from the old unit?
A: If the outgoing drive’s parameters were saved using Lenze Engineer software or uploaded to a keypad, they can be downloaded directly to the E84AVSCE7514SX0. The parameter set is compatible within the 8400 StateLine series for the same power rating. Motor data (nameplate values, magnetizing current) should be verified after restore and an auto-tune run is recommended if motor characteristics differ.

Q: Is the CANopen node configuration preserved after replacement?
A: The node ID and baud rate are stored in the drive’s non-volatile memory. After parameter restore, confirm these settings match the network configuration before connecting the drive to the CAN bus. No changes to the master PLC program or PDO mapping are required if the node ID is identical.

Q: What are the physical space requirements for installation?
A: The E84AVSCE7514SX0 shares the same housing width and DIN rail mounting pitch as other 8400 StateLine units in the 5.5–11 kW range. No additional panel space is required for a like-for-like replacement. Ensure minimum clearance above and below the drive for cooling airflow as specified in the Lenze 8400 StateLine hardware manual.

Q: How do I handle the transition if the site cannot tolerate extended downtime?
A: TOPNLMS recommends pre-staging the replacement drive with a full parameter load and bench test before the scheduled maintenance window. This reduces on-site commissioning time to a terminal reconnection and a short functional test, typically achievable within a 2–4 hour planned outage.

Warranty Assurance

Every E84AVSCE7514SX0 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a pre-shipment functional check covering power-on self-test, control terminal continuity, communication port response, and firmware version verification. Units are packed in anti-static, shock-absorbing packaging suitable for international air and sea freight.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a credit note based on the buyer’s preference. Our after-sales response target is one business day for fault assessment and three business days for replacement dispatch. Warranty claims require the original invoice number and a brief fault description; no unit return is required for low-value claims at our discretion.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of conformity, packing list, and commercial invoice in English and Chinese. Lead time for in-stock units is typically 3–7 business days to major international destinations.
