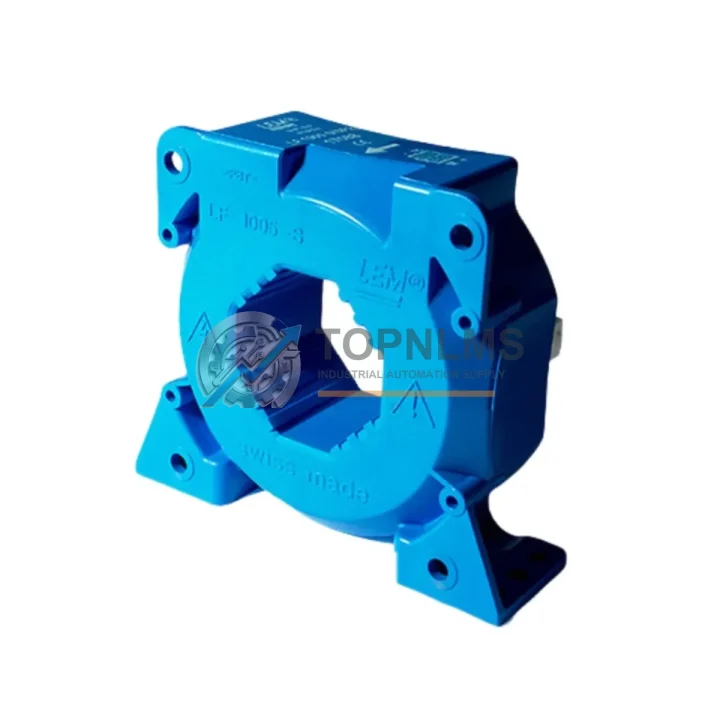

LEM LF1005-S/SP36 Ruggedized Current Transducer

Product Overview

LEM LF1005-S/SP36 Ruggedized Current Transducer: Industrial Resilience in Harsh Environments

The LEM LF1005-S/SP36 is a precision closed-loop Hall effect current transducer from LEM’s renowned LF Series, engineered for continuous, reliable operation in the most demanding industrial environments. Rated for 1005A nominal current measurement with PCB-mount convenience, this transducer delivers exceptional accuracy and galvanic isolation in applications where measurement integrity directly impacts process safety and equipment protection.

Designed to withstand high-temperature fluctuations, elevated humidity, mechanical vibration, and intense electromagnetic interference (EMI), the LF1005-S/SP36 is the preferred choice for engineers specifying current sensing in heavy industrial, energy, and process automation systems. Its closed-loop Hall effect topology ensures near-zero drift over the full operating temperature range, making it indispensable in environments where conventional open-loop sensors fail to maintain calibration.

In modern industrial control architectures, accurate current measurement is the foundation of safe and efficient operation. The LF1005-S/SP36 integrates seamlessly into PLC-based control panels, DCS field I/O cabinets, and variable frequency drive (VFD) protection circuits. When paired with Siemens SIMATIC S7-1500 or S7-300 series PLCs, or ABB AC500 controllers, the transducer provides the real-time current feedback necessary for closed-loop motor control, overload detection, and energy management. Its PCB-mount form factor allows direct integration into custom I/O modules and relay protection boards without additional signal conditioning hardware.

Rugged Specifications Table

Comprehensive Protection Solutions

The LF1005-S/SP36 does not operate in isolation — it is a critical sensing node within a broader protection and control ecosystem. In high-power motor drive applications, it works in conjunction with Siemens SINAMICS G120 and S120 variable frequency drives, providing the real-time current feedback that enables precise torque control and overcurrent shutdown. When integrated into a Schneider Electric Modicon M340 or M580 PLC system, the transducer’s analog output feeds directly into the controller’s AI modules, enabling continuous load monitoring without additional signal converters.

For control cabinet builds in the oil and gas sector, the LF1005-S/SP36 is commonly installed alongside Phoenix Contact TRIO-PS industrial power supplies and Weidmüller WPE terminal blocks, forming a compact, vibration-resistant measurement assembly. In safety-instrumented systems (SIS), it complements Pilz PNOZmulti 2 safety relay modules and Rockwell Allen-Bradley 1734 POINT I/O modules by delivering the current measurement data required for SIL-rated loop integrity verification.

Communication-intensive installations benefit from pairing the LF1005-S/SP36 with Moxa NPort serial device servers or Beckhoff EL3xxx analog input EtherCAT terminals, enabling seamless data transmission to SCADA systems over Profibus, Profinet, or EtherCAT. In UPS and power conditioning cabinets, it is frequently used alongside ABB SACE Tmax XT circuit breakers and Eaton xEffect fuse disconnectors to provide complete overcurrent protection and energy audit capability.

Application in Critical Infrastructure

The LEM LF1005-S/SP36 is deployed across the full spectrum of critical industrial infrastructure where measurement failure is not an option. In oil and gas upstream and midstream facilities, it monitors compressor motor currents in classified hazardous areas, providing the data backbone for emergency shutdown (ESD) systems. Its galvanic isolation and high dielectric strength make it suitable for installation in Zone 2 control panels when housed in appropriate Ex-rated enclosures.

In mining and mineral processing, the transducer withstands the extreme vibration and dust ingress characteristic of conveyor drive rooms and crusher control stations. Its closed-loop design maintains measurement accuracy even when subjected to the strong stray magnetic fields generated by large DC motors and induction furnaces common in metallurgical and steel production environments.

Power utilities rely on the LF1005-S/SP36 for current measurement in substation automation and grid-tie inverter systems, where it supports protection relay coordination and reactive power compensation. In water and wastewater treatment plants, it monitors pump motor loads to detect cavitation, dry-run conditions, and impeller wear before catastrophic failure occurs, reducing unplanned downtime in continuous-process operations. Across all these sectors, the LF1005-S/SP36 delivers the measurement confidence that engineers and plant managers require to maintain safe, compliant, and productive operations.

Security & Quality FAQ

Q1: What warranty coverage is provided with the LEM LF1005-S/SP36?
Every LEM LF1005-S/SP36 unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support to assist with installation, calibration verification, and warranty claims processing.

Q2: How is each unit tested before shipment?
All units undergo pre-shipment functional inspection including output linearity verification, isolation resistance check, and supply voltage tolerance testing. Units sourced directly from authorized distribution channels are accompanied by original manufacturer documentation. Batch traceability records are maintained for quality audit purposes.

Q3: Is the LF1005-S/SP36 compatible with my existing PLC or DCS system?
Yes. The LF1005-S/SP36 produces a standard analog current output (250 mA at nominal) that is compatible with virtually all industrial analog input modules, including those from Siemens, Rockwell Automation, Schneider Electric, ABB, Mitsubishi, and Omron. No proprietary interface or protocol is required — standard ±15 V DC power supply and a current-input AI card are sufficient for full integration.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains stock of the LF1005-S/SP36 and other LF Series transducers to support both planned maintenance schedules and emergency spare-part requirements. We offer expedited shipping from Xiamen, China, with typical lead times of 3–7 business days for in-stock items. For critical infrastructure operators requiring guaranteed availability, we recommend discussing a consignment or blanket order arrangement with our sales team.
